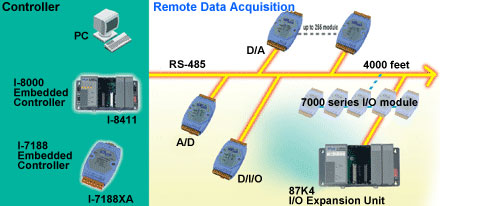

ICP DAS 7000 series distributed I/O modules offer the most cutting edge data acquisition capabilities for your industrial control needs. The ICP DAS I-7000 distributed I/O modules are available in a bevy of Digital and Analog configurations, which are communicable via RS-485, as well as capable of interfacing with ICP DAS’s own proprietary DCON software interface. The I-7000 series are the ultimate selection in Remote I/O Data Acquisition Modules.
With these products, you can use the serial port on your laptop or desktop PC to connect to voltage inputs, thermocouples, strain gauges, rtds or any analog or digital sensors. The I-7000 Modules have low power consumption and require 10 to 30 VDC. They come with free DCON Utility configuration software for setting them up and they also come with Free EZ Data Logger software for PC based data logging. The I-7000 modules are perfect for small or large systems.
| Analog Input (Voltage & Current | Thermocouple Input | RTD Input | Strain Gauge | Thermistor) + Analog Output | |||||||
|---|---|---|---|---|---|---|---|
| Model | AI | AO | Input/ Output Type | DI | DO | Input/ Output Type | Price / Add to Cart |
| I-7005 | 8 | – | Thermistor: Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined | – | 6 | Open Collector(Sink) |
$559.00
|
| I-7011 | 1 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, Thermocouple: J, K, T, E, R, S, B, N, C | 1 | 2 | Dry (Source); Open Collector(Sink) |
$399.00
|
| I-7011D | 1 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, Thermocouple: J, K, T, E, R, S, B, N, C | 1 | 2 | Dry (Source); Open Collector(Sink) |
$479.00
|
| I-7011P | 1 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, Thermocouple: J, K, T, E, R, S, B, N, C | 1 | 2 | Dry (Source); Open Collector(Sink) |
$389.00
|
| I-7011PD | 1 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, Thermocouple: J, K, T, E, R, S, B, N, C | 1 | 2 | Dry (Source); Open Collector(Sink) |
$389.00
|
| I-7012 | 1 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA | 1 | 2 | Dry (Source); Open Collector(Sink) |
$379.00
|
| I-7012D | 1 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA | 1 | 2 | Dry (Source); Open Collector(Sink) |
$449.00
|
| I-7012F | 1 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA | 1 | 2 | Dry (Source); Open Collector(Sink) |
$389.00
|
| I-7012FD | 1 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA | 1 | 2 | Dry (Source); Open Collector(Sink) |
$469.00
|
| I-7013 | 1 | – | 2/3/4-wire RTD: Pt100, Pt1000, Ni120 | – | – | – |
$409.00
|
| I-7013D | 1 | – | 2/3/4-wire RTD: Pt100, Pt1000, Ni120 | – | – | – |
$469.00
|
| I-7014D | 1 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, Transmitter | 1 | 2 | Dry (Source); Open Collector(Sink) |
$479.00
|
| I-7015 | 6 | – | 2/3-wire RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000T | – | – | – |
$589.00
|
| I-7015P | 6 | – | 2/3-wire RTD: Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000T | – | – | – |
$719.00
|
| I-7016 | 2 | – | 4-wire Full-Bridge Strain Gauge | 1 | 4 | Dry (Source); Open Collector(Sink) |
$719.00
|
| I-7016D | 2 | – | 4-wire Full-Bridge Strain Gauge | 1 | 4 | Dry (Source); Open Collector(Sink) |
$589.00
|
| I-7016P | 1 | – | 6-wire Full-Bridge Strain Gauge | 1 | 4 | Dry (Source); Open Collector(Sink) |
$539.00
|
| I-7016PD | 1 | – | 6-wire Full-Bridge Strain Gauge | 1 | 4 | Dry (Source); Open Collector(Sink) |
$639.00
|
| I-7017 | 8 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$409.00
|
| I-7017C | 8 | – | ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$439.00
|
| I-7017F | 8 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$449.00
|
| I-7017FC | 8 | – | ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$449.00
|
| I-7017R | 8 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$449.00
|
| I-7017R-A5 | 8 | – | ±50V, ±150V | – | – | – |
$559.00
|
| I-7017R-A5 | 8 | – | ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$479.00
|
| I-7017Z | 10/20 | – | ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 0 ~ 20mA, 4 ~ 20mA | – | – | – |
$479.00
|
| I-7018 | 8 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, 0 ~ 20mA, 4 ~ 20mA, Thermocouple: J, K, T, E, R, S, B, N, C | – | – | – |
$449.00
|
| I-7018P | 8 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, Thermocouple: J, K, T, E, R, S, B, N, C, L, M | – | – | – |
$469.00
|
| I-7018R | 8 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, 0 ~ 20mA, 4 ~ 20mA, Thermocouple: J, K, T, E, R, S, B, N, C | – | – | – |
$559.00
|
| I-7018Z | 10 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, 0 ~ 20mA, 4 ~ 20mA, Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 | – | – | – |
$559.00
|
| I-7019R | 8 | – | ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V, ±20mA, 0 ~ 20mA, 4 ~ 20mA, Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 | – | – | – |
$569.00
|
| I-7021 | – | 1 | 0 ~ +10V, 0 ~ +20mA, +4 ~ +20mA | – | – | – |
$359.00
|
| I-7021P | – | 1 | 0 ~ +10V, 0 ~ +20mA, +4 ~ +20mA | – | – | – |
$419.00
|
| I-7022 | – | 2 | 0 ~ +5V, 0 ~ +10V, 0 ~ +20mA, +4 ~ +20mA | – | – | – |
$439.00
|
| I-7024 | – | 4 | 0 ~ +5V, 0 ~ +10V, ±5V, ±10V, 0 ~ +20mA, +4 ~ +20mA | 5 | – | Dry (Source) |
$509.00
|
| I-7024R | – | 4 | 0 ~ +5V, 0 ~ +10V, ±5V, ±10V, 0 ~ +20mA, +4 ~ +20mA | – | – | – |
$559.00
|
| I-7033 | 3 | – | 2/3/4-wire RTD: Pt100, Pt1000, Ni120 | – | – | – |
$479.00
|
| I-7033D | 3 | – | 2/3/4-wire RTD: Pt100, Pt1000, Ni120 | – | – | – |
$559.00
|
| Digital Input | Digital Output | |||||||
|---|---|---|---|---|---|---|---|
| Model | DI | DO | Input/ Output Type | Price / Add to Cart | |||
| I-7041 | 14 | – | Wet (Sink,Source) |
$219.00
|
|||
| I-7041D | 14 | – | Wet (Sink,Source) |
$229.00
|
|||
| I-7041P | 14 | – | Wet (Sink,Source) |
$219.00
|
|||
| I-7041PD | 14 | – | Wet (Sink,Source) |
$229.00
|
|||
| I-7042 | – | 13 | Open Collector(Sink) |
$219.00
|
|||
| I-7042D | – | 13 | Open Collector(Sink) |
$229.00
|
|||
| I-7043 | – | 16 | Open Collector(Sink) |
$219.00
|
|||
| I-7043D | – | 16 | Open Collector(Sink) |
$229.00
|
|||
| I-7044 | 4 | 8 | Wet (Sink,Source); Open Collector (Source) |
$229.00
|
|||
| I-7044D | 4 | 8 | Wet (Sink,Source); Open Collector (Source) |
$239.00
|
|||
| I-7045 | – | 16 | Open Collector (Source) |
$319.00
|
|||
| I-7045D | – | 16 | Open Collector (Source) |
$329.00
|
|||
| I-7045D-NPN | – | 16 | Open Collector (Sink) |
$359.00
|
|||
| I-7045-NPN | – | 16 | Open Collector (Sink) |
$349.00
|
|||
| I-7050 | 7 | 8 | Dry (Sink) ; Open Collector (Sink) |
$199.00
|
|||
| I-7050D | 7 | 8 | Dry (Sink) ; Open Collector (Sink) |
$219.00
|
|||
| I-7050A | 7 | 8 | Dry (Sink) ; Open Collector (Sink) |
$199.00
|
|||
| I-7050AD | 7 | 8 | Dry (Sink) ; Open Collector (Sink) |
$219.00
|
|||
| I-7051 | 16 | – | Dry, Wet (Sink,Source) |
$259.00
|
|||
| I-7051D | 16 | – | Dry, Wet (Sink,Source) |
$279.00
|
|||
| I-7052 | 8 | – | Dry, Wet (Sink,Source) |
$199.00
|
|||
| I-7052D | 8 | – | Dry, Wet (Sink,Source) |
$219.00
|
|||
| I-7053_FG | 16 | – | Dry (Source) |
$219.00
|
|||
| I-7053D_FG | 16 | – | Dry (Source) |
$229.00
|
|||
| I-7055 | 8 | 8 | Dry, Wet (Sink,Source); Open Collector (Source) |
$269.00
|
|||
| I-7055D | 8 | 8 | Dry, Wet (Sink,Source); Open Collector (Source) |
$289.00
|
|||
| I-7055D-NPN | 8 | 8 | Dry, Wet (Sink,Source); Open Collector (Source) |
$299.00
|
|||
| I-7055-NPN | 8 | 8 | Dry, Wet (Sink,Source); Open Collector (Source) |
$279.00
|
|||
| I-7058 | 8 | – | Wet (Sink,Source) AC/DC |
$219.00
|
|||
| I-7058D | 8 | – | Wet (Sink,Source) AC/DC |
$229.00
|
|||
| I-7059 | 8 | – | Wet (Sink,Source) AC/DC |
$219.00
|
|||
| I-7059D | 8 | – | Wet (Sink,Source) AC/DC |
$229.00
|
|||
| I-7060 | 4 | 4 | Wet (Sink,Source) ; Signal Relay (Form A × 2, Form C × 2) |
$229.00
|
|||
| I-7060D | 4 | 4 | Wet (Sink,Source) ; Signal Relay (Form A × 2, Form C × 2) |
$239.00
|
|||
| I-7061 | – | 12 | Power Relay Form A |
$359.00
|
|||
| I-7061D | – | 12 | Power Relay Form A |
$389.00
|
|||
| I-7063 | 8 | 3 | Wet (Sink,Source) ; Power Relay Form A |
$239.00
|
|||
| I-7063D | 8 | 3 | Wet (Sink,Source) ; Power Relay Form A |
$259.00
|
|||
| I-7063A | 8 | 3 | Wet (Sink,Source) ; AC SSR Form A |
$329.00
|
|||
| I-7063AD | 8 | 3 | Wet (Sink,Source) ; AC SSR Form A |
$349.00
|
|||
| I-7063B | 8 | 3 | Wet (Sink,Source) ; AC SSR Form A |
$329.00
|
|||
| I-7063BD | 8 | 3 | Wet (Sink,Source) ; AC SSR Form A |
$349.00
|
|||
| I-7065D | 4 | 5 | Wet (Sink,Source) ; Power Relay Form A |
$269.00
|
|||
| I-7065A | 4 | 5 | Wet (Sink,Source) ; AC SSR Form A |
$409.00
|
|||
| I-7065AD | 4 | 5 | Wet (Sink,Source) ; AC SSR Form A |
$439.00
|
|||
| I-7065B | 4 | 5 | Wet (Sink,Source) ; AC SSR Form A |
$389.00
|
|||
| I-7065BD | 4 | 5 | Wet (Sink,Source) ; AC SSR Form A |
$409.00
|
|||
| I-7066 | – | 7 | PhotoMOS Relay Form A |
$259.00
|
|||
| I-7066D | – | 7 | PhotoMOS Relay Form A |
$269.00
|
|||
| I-7067 | – | 7 | Signal Relay Form A |
$259.00
|
|||
| I-7067D | – | 7 | Signal Relay Form A |
$269.00
|
|||
| I-7080 | 2 | 2 | Up Counter, Dry (Sink) ; Open Collector (Sink) |
$289.00
|
|||
| I-7080D | 2 | 2 | Up Counter, Dry (Sink) ; Open Collector (Sink) |
$379.00
|
|||
| I-7080B | 2 | 2 | Up Counter, Dry (Sink) ; Open Collector (Sink) |
$289.00
|
|||
| I-7080BD | 2 | 2 | Up Counter, Dry (Sink) ; Open Collector (Sink) |
$379.00
|
|||
| I-7083D | 3 | – | CW/CCW, Dir/Pulse, AB Phase |
$619.00
|
|||
| I-7083B | 3 | – | CW/CCW, Dir/Pulse, AB Phase |
$539.00
|
|||
| I-7083BD | 3 | – | CW/CCW, Dir/Pulse, AB Phase |
$619.00
|
|||
| I-7088 | 8 | 8 | Up Counter, Wet (Sink) ; PWM, TTL |
$449.00
|
|||
| I-7088D | 8 | 8 | Up Counter, Wet (Sink) ; PWM, TTL |
$509.00
|
|||
| I-7088-G/S | 8 | 8 | Up Counter, Wet (Sink) ; PWM, TTL |
$559.00
|
|||
| I-7088D-G/S | 8 | 8 | Up Counter, Wet (Sink) ; PWM, TTL |
$589.00
|
|||
