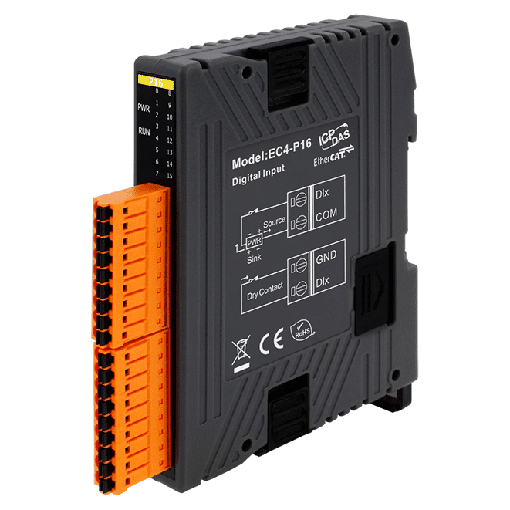

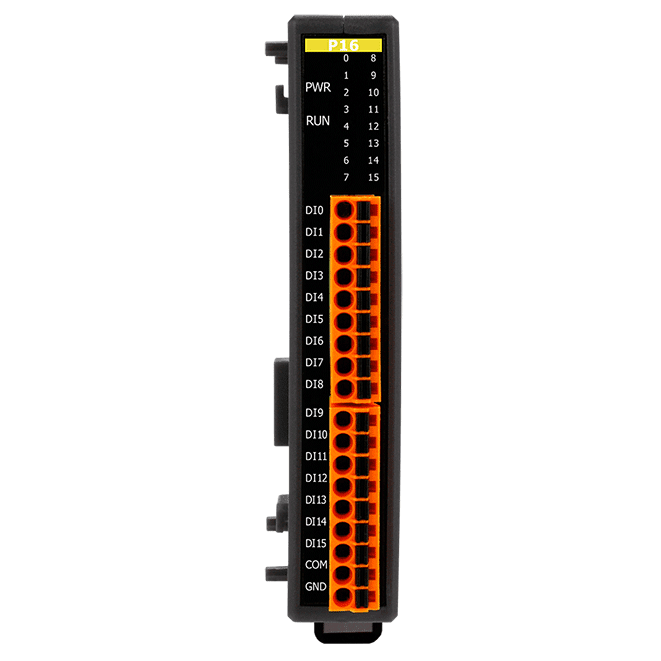

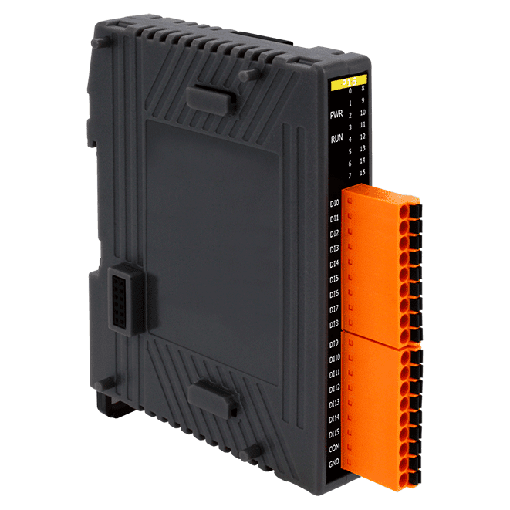

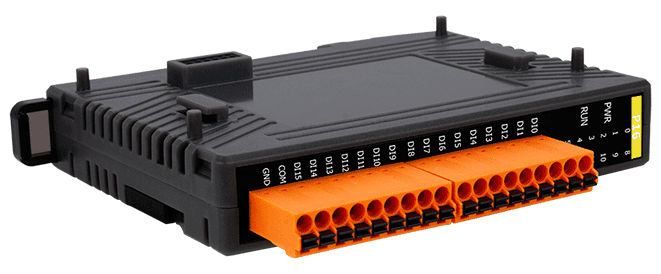

The EC4-P16 is an industrial I/O module designed with a slim-type form factor, featuring 16 isolated digital input channels. It features the EtherCAT protocol, providing a system with higher scalability and fewer cables. Users can check the current input status through LED indicators on the enclosure. In addition, the module has passed the test and verification of the conformance testing tool. It is also compatible with various standard EtherCAT MainDevices to enable diversified applications.
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±8KV(Air for Random Point) |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Wet (Sink/Source) / Dry |
| ON Voltage Level | Wet Contact+19V~+30V Dry ContactClose to GND |
| OFF Voltage Level | Wet Contact+11V Max. Dry ContactOpen |
| Isolation | 3000VDC |
| EtherCAT | |
|---|---|
| Cycle Time | 100 s |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 17.5 x 108 x 73 (W x L x D)(excluding terminals) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
