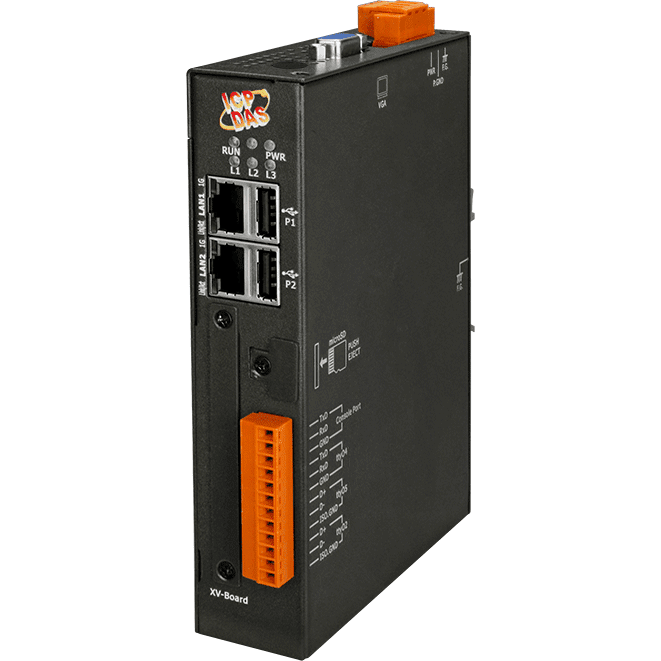

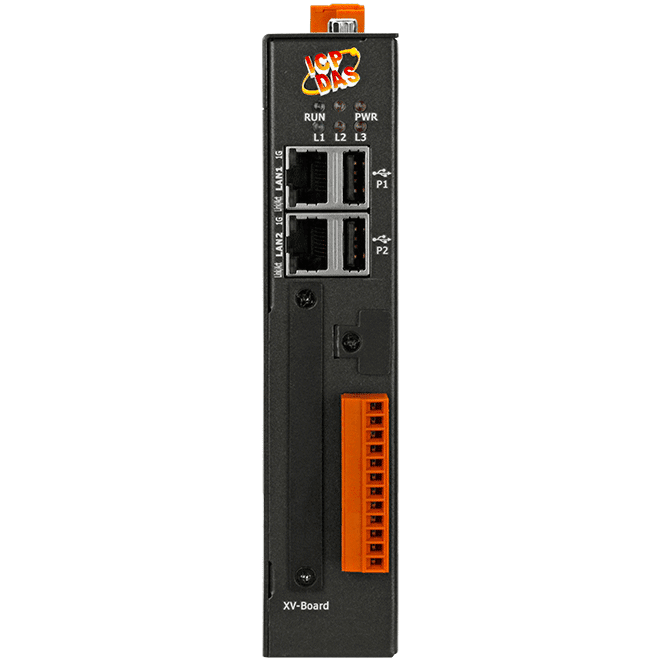

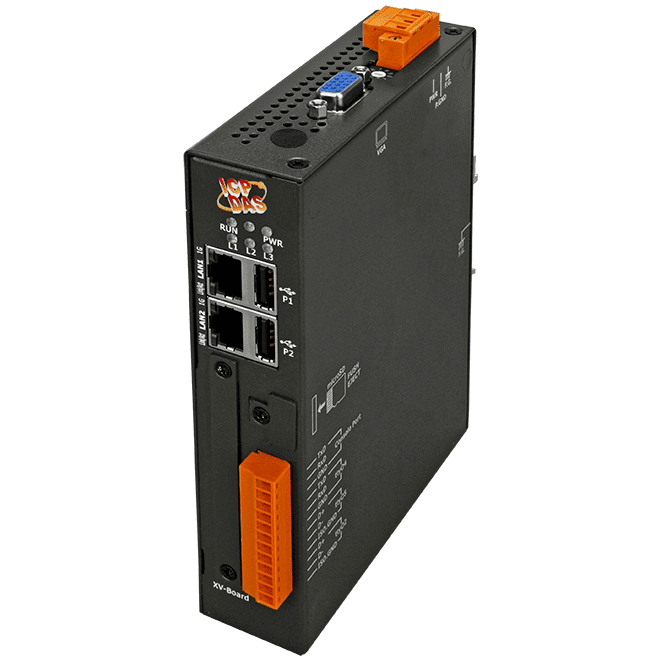

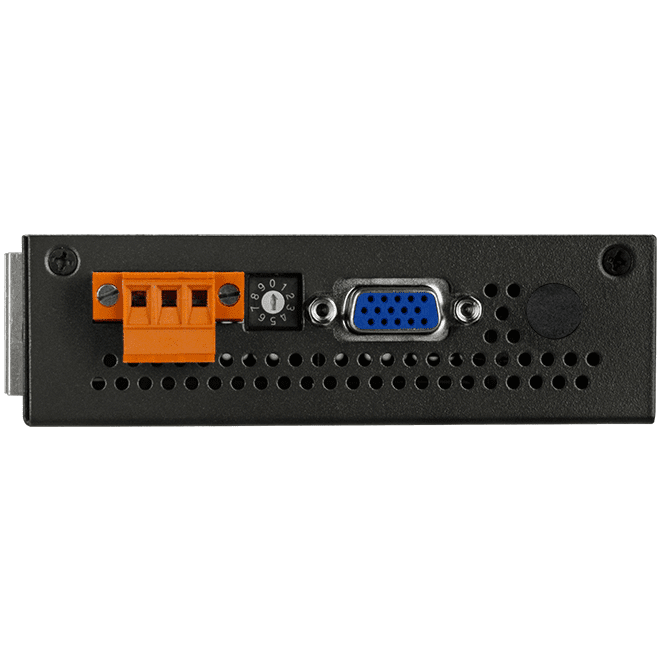

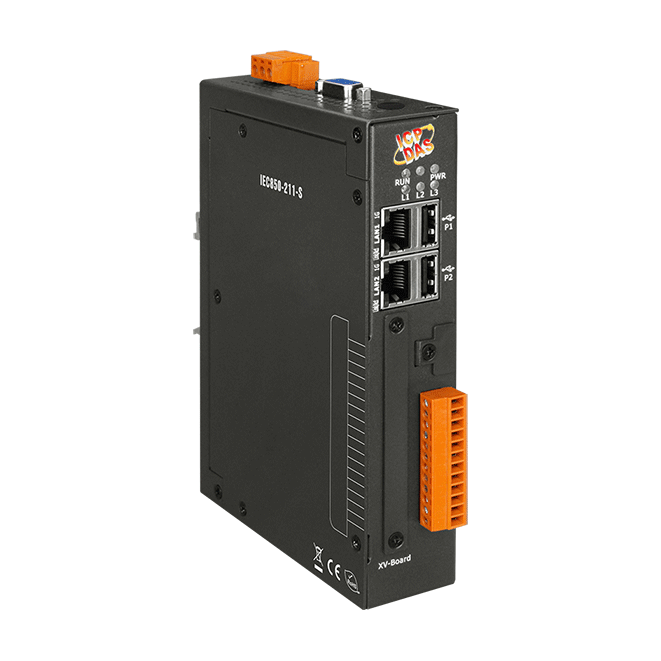

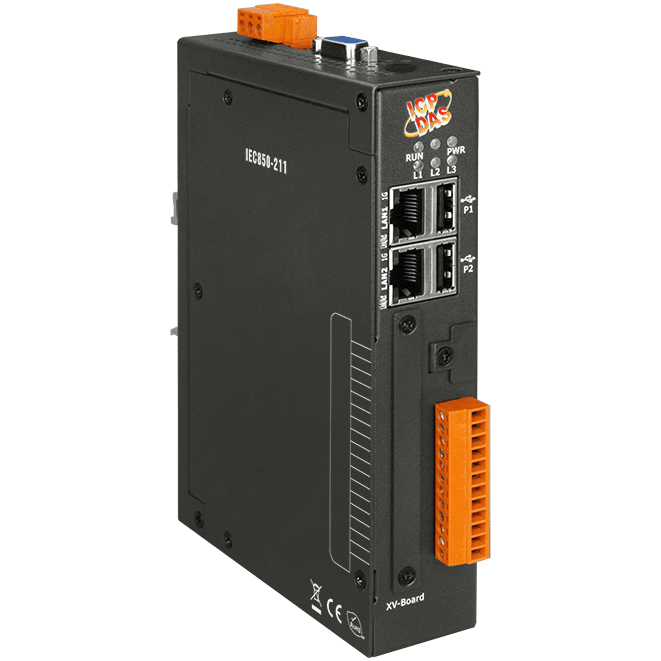

IEC850-211

$1,459.00

IEC 61850 Server and Modbus TCP Client Gateway. Reads and writes IEC 61850 objects via Modbus Commands. Supports up to 10 IEC 61850 Server Connections and up to 5000 mapping points. Automatically maps IEC61850 data objects to Modbus registers. Supports Operating Temperatures from -25C to 75C (-13F to 167F) and has a din rail mount.

Availability: | FASTEST DELIVERY : Tuesday, Nov 3 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	Industrial Data Communications \| Fieldbus Communication
Review:	Write your review
Resources:	User Manual Quick Start Data Sheet Utility Software Firmware

Introduction

IEC850-211 is a communication gateway that provides data conversion between an IEC 61850 Client and a Modbus Slave, enabling devices on an IEC 61850 network to be accessed and integrated by existing Modbus systems. It is particularly suitable for substation automation and power monitoring applications. The gateway supports various MMS data types, including Boolean, Integer, Unsigned, Float, BIT_STRING, and UTC_TIME, ensuring data integrity and consistency during conversion. In addition, it supports IEC 61850 Report and GOOSE Publish/Subscribe mechanisms to achieve real-time event transmission and high-speed communication. With the dedicated Utility tool, users can import SCL (SCD/CID/ICD) files and automatically configure data mapping, allowing IEC 61850 data objects to be mapped to Modbus registers, significantly simplifying system integration and improving overall deployment efficiency.

Specifications

Software
OS	Linux Kernel 3.2.14
Protocol	Modbus TCP server: Function:1,2,3,4,5,6,16 IEC 61850 MMS client: connection:Max. 10 MMS servers MMS data types : Boolean, Integer, Unsigned, Float, BIT_STRING, UTC_TIME Max Mapping Point:5000 control: ---- status-only ---- direct-with-normal-security ---- direct-with-enhanced-security ---- sbo-with-normal-security ---- sbo-with-enhanced-security
Service	SFTP server, Web server

Main Unit
CPU	Cortex-A8, 1 GHz
System Memory	512 MB DDR3 SDRAM
Real Time Clock	Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer	Yes, Dual Watchdog Timer

Display
Signal	VGA (Analog RGB)

LED Indicators
Status	1 x PWR(Power) 1 x RUN(Running) 1 x L1 1 x L2 1 x L3

Ethernet
Ports	2 x RJ-45, 10/100/1000 Base-TX

COM Ports
Ports	1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated)

USB
Ports	2
Specification	USB 2.0 (Host)

Power
Input Range	+12 VDC ~ +48 VDC
Consumption	4.8 W

Mechanical
Casing	Metal
Dimensions (mm)	35 x 167 x 119 (W x L x H)
Installation	DIN-Rail or Wall Mounting (optional)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	10 ~ 95% RH, Non-condensing
