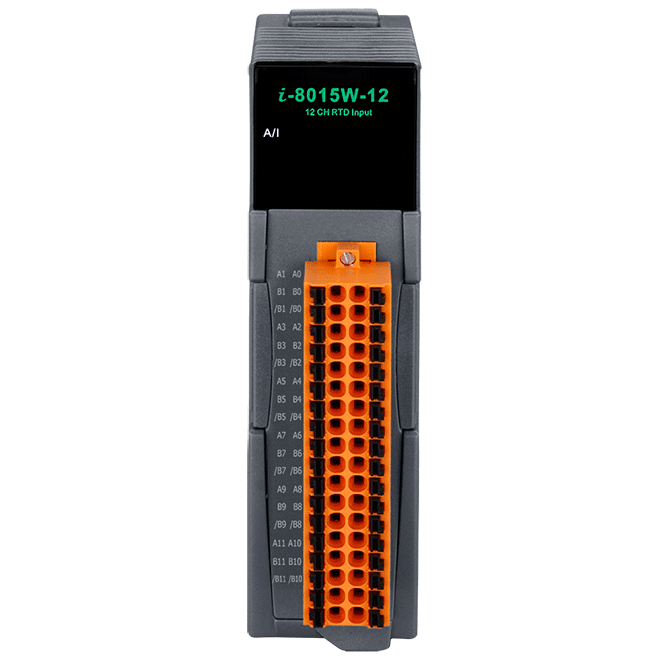

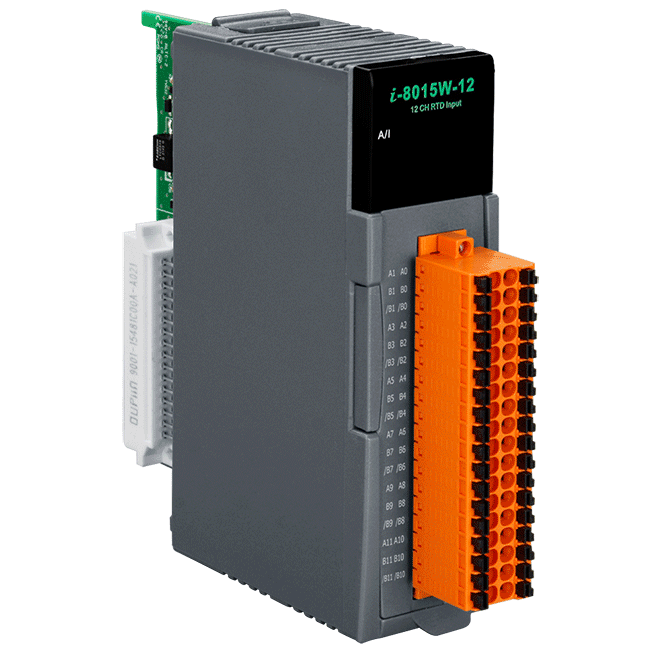

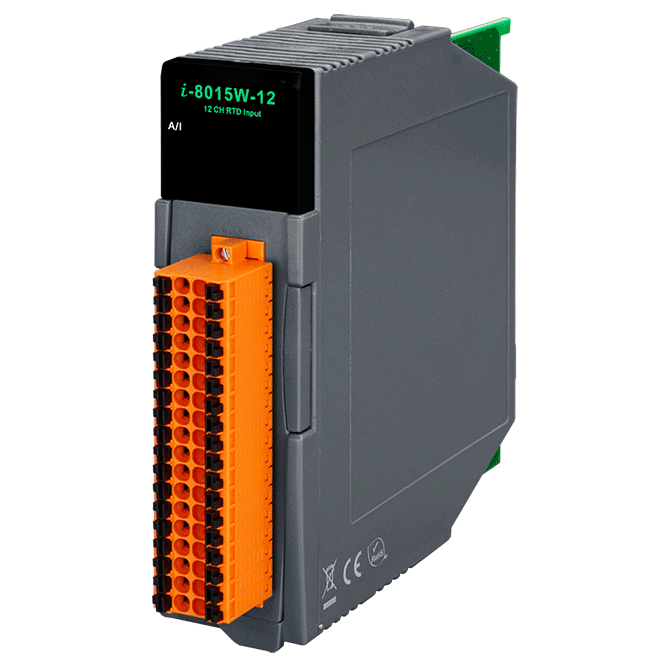

The I-8015W-12 is a 12-channel RTD input module that measures temperature through RTD and provides 85Hz high-speed measurement for each channel. Each channel can be connected to diff erent kinds of RTD sensors. It features automatic compensation for three-wire RTD so that it can measure accurately regardless of the length of the wires. Also, the I-8015W-12 are fully RoHS compliant and feature 4 kV ESD protection as well as 3000 VDC intra-module isolation.
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
| CPU Module | |
|---|---|
| Watchdog Timer | Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Power and Communication x 1 |
| Analog Input | |
|---|---|
| Channels | 12 |
| Type | RTD |
| Sensor Type | Pt100, Ni120, Cu50, Cu100 |
| Resolution | 16-bit |
| Accuracy | Fast Mode: ±0.1 % of FSR (25 ) Normal Mode: ±0.05 % of FSR (25 ) |
| Sampling Rate | Fast Mode: 85 Hz (per channel) Normal Mode: 1.5 Hz (per channel) |
| Input Impedance | >1 M |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 |
| Baud Rate | 921600 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
|---|---|
| Consumption | 0.5 Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 114 x 126 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
