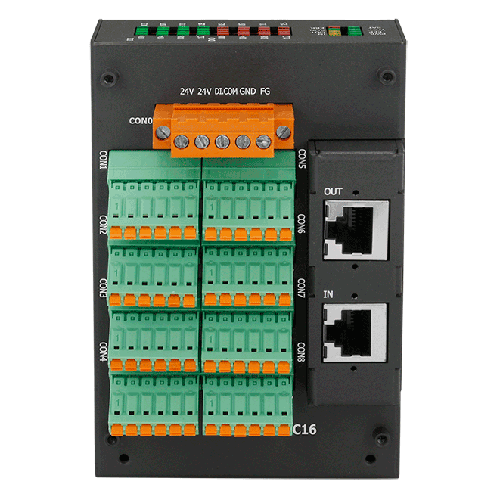

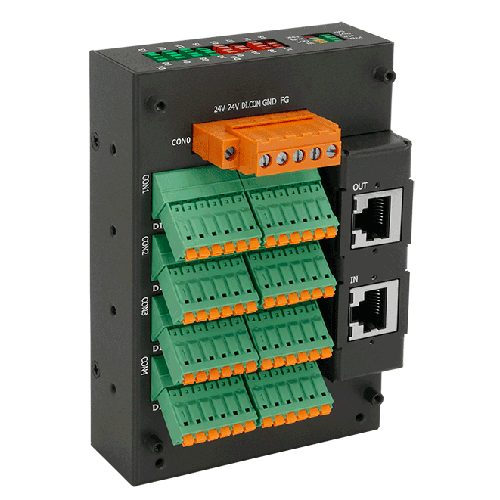

The EC2-P16C16 is a highly versatile and robust industrial slave I/O module designed to provide seamless integration into advanced automation systems. This module is equipped with 16 digital inputs and 16 digital outputs, offering exceptional flexibility for a wide range of industrial applications. Utilizing the EtherCAT protocol, the EC2-P16C16 ensures rapid, real-time communication with superior data exchange capabilities. It supports a daisy chain connection, significantly reducing the need for extensive wiring and making it an ideal choice for building scalable, efficient systems that can grow and adapt to changing requirements.

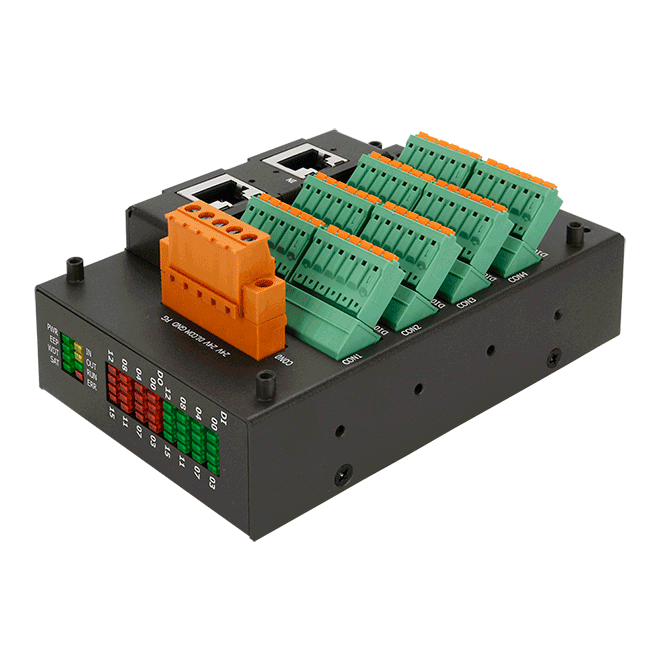

One of the standout features of the EC2-P16C16 is its comprehensive monitoring capabilities. Users can easily access the input and output statuses through both process data and visual indicators provided by built-in LED displays. This dual method of status monitoring ensures that users can quickly identify and troubleshoot any issues within the system. Furthermore, the EC2-P16C16 has successfully passed rigorous testing and validation through the EtherCAT conformance test tool, guaranteeing its compatibility and reliable performance with any eligible EtherCAT Master or configurator.
Thanks to this conformance, integration with various EtherCAT-based systems is straightforward, allowing users to effortlessly implement the EC2-P16C16 into their specific applications. Whether it's for factory automation, process control, or any other industrial operation, the EC2-P16C16 offers a highly efficient, user-friendly solution that streamlines setup and enhances operational performance.
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: 1 KV Class B; Power: 1 KV Class B |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | Wet (Sink & Source )/ Dry (Source) |
| ON Voltage Level | Wet Contact: +10 V ~ +24 V Dry Contact: Close to GND |
| OFF Voltage Level | Wet Contact :+4 V Max. Dry Contact: Open |
| Isolation | 3750 VDC |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector (Sink),with internal flywheel diode |
| Load Voltage | 40 VDC Max. |
| Load Current | 500mA/Channel(Sink) |
| Isolation | 3000 VDC |
| EtherCAT | |
|---|---|
| Ports | EtherCAT, 2 X RJ45 |
| Node ID | Up to 256 |
| Distance Between Stations | Max. 100m (100Base-Tx) |
| Data Transfer Medium | Ethernet/EtherCAT cable(min. CAT5), shielded |
| Cycle Time | 100 us |
| Distributed Clocks | Yes |
| Power | |
|---|---|
| Input Range | +24 VDC |
| Consumption | 3 W |
| Mechanical | |
|---|---|
| Casing | Metal with IP40 |
| Dimensions (mm) | 83 x 122 x 65 (W x L x D) |

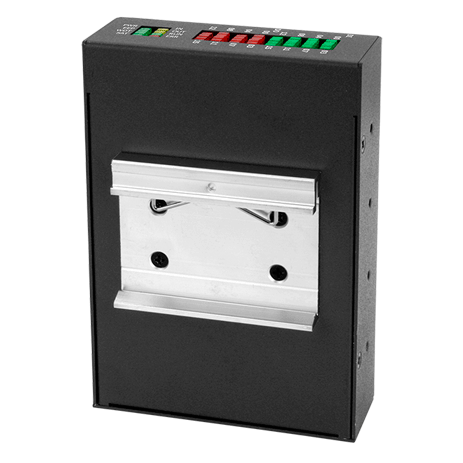

| Installation | DIN-Rail or Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
