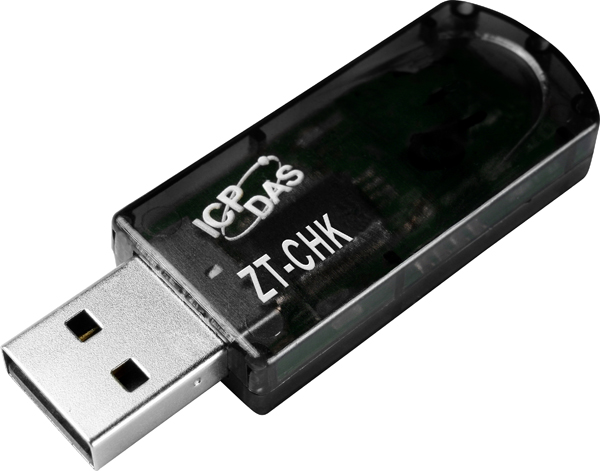

The ZT-CHK module is a wireless sniffer that captures and analyze over-the-air data packets of IEEE 802.15.4 standard in real-time with TI SmartRF Protocol Packet Sniffer (SPPS) software. It is easy to install the ZT-CHK to PC by USB interface. With SPPS software, users can view or store the wireless data packets in PC and these data packets are like ZigBee 2007 (ZigBee Pro). This can be a good way for users to analyze the IEEE 802.15.4 data in their applications, and reduce the wireless communication test time efficiently.
| CPU Module | |
|---|---|
| CPU | TI CC2531 |
| ZigBee | |
|---|---|
| Antenna | 2.4GHz-3dBi PCB Antenna (50) |
| USB | |
|---|---|
| Connector | Type-A Plug |
| Driver | Windows 2000/XP/Vista/7/8 |
| Power | |
|---|---|
| Consumption | 0.15 W (Max.) |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 19.8 x 58.4 x 9 (W x L x H) |
