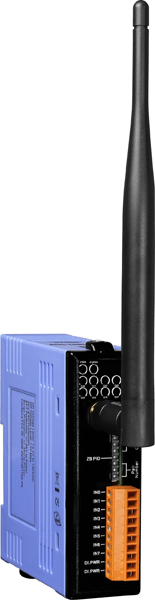

The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller.
The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits status updates of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized.
The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.
|
Communication Interface
|
|
|
Wireless Standards
|
ZigBee 2007 Pro
|
|
Transmission Power
|
11dBm (FCC Certificated)
|
|
2.4 GHz Antenna
|
5 dBi Omni directional
|
|
Transmission Range (LoS)
|
700 m (Typical)
|
|
Certification
|
Yes - CE/FCC, FCC ID
|
|
Max. Slaves in ZigBee Network
|
255
|
|
Hot Swap
|
Rotary and DIP switch
|
|
LED Indicators
|
|
|
Power / Debug
|
1 Red LED, ZigBee Device Power Indicator
|
|
ZigBee Communications
|
1 Green LED, ZigBee Communication Indicator
|
|
Digital Input and Output
|
8 Green LED, Digital Input Channel Indicators
|
|
Isolation
|
|
|
Intra-module Isolated, Field-to-Logic
|
3750 VDC
|
| Power | |
| Input Voltage Range | +10 VDC ~ +30 VDC |
| Power Consumption | 1 W (Max.) |
| Mechanical | |
| Flammability | Fire Retardant materials (UL94-V0 Level) |
| Dimensions (W x L x H) | 33 mm x 88 mm x 110 mm |
|
Installation
|
DIN-Rail
|
|
Environment
|
|
|
Operating Temperature
|
-25 ~ +75°C (-13°F ~ +167°F)
|
|
Storage Temperature
|
-30 ~ +80°C (-22°F ~ +176°F)
|
|
Relativel Humidity
|
10 ~ 90% RH, Non-condensing
|
|
Digital Input/Counter
|
|
|
Input Channels
|
8 |
|
Wet Contact
|
On Voltage Level: +3.5 VDC ~ +30 VDC
|
|
Off Voltage Level: +1 VDC Max.
|
|
|
Counter
|
Channels: 8
|
| Max. Count: 16-bit (65535) | |
| Max. Input Frequency: 100 Hz | |
| Min. Pulse Width: 5 ms | |
| Intra-module Isolation, Field to Logic | 3750 Vrms |
| Impedence | 3 kΩ, 0.33 W |
| ESD Protection | +/-4 kV contact for each channel |
