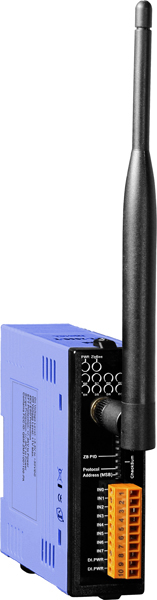

The ZT-2052 offers 8 digital input channels, each of which features photocouple isolation. In addition, you can choose either sink-type or source-type input via wire connections. All channels are able to be used as 16-bit counters. The ZT-2052 has 8 LED indicators to display the channel status and also includes 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 Vrms |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | +/-4 kV contact for each channel |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x Digital Input |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz,5 dBi Omni directional |
| Max. Slaves | 255 |
| Protocol | Supports DCON and Modbus RTU Protocols |
| Standard | ZigBee , IEEE 802.15.4 |
| Transmission Power | 11 dBm |
| Transmission Distance (LoS) | 700 m (Typical) |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/ Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level | Wet: Max. +1 VDC |
| Max. Counts | 16-bit (65535) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 3 k, 0.33 W |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 88 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
