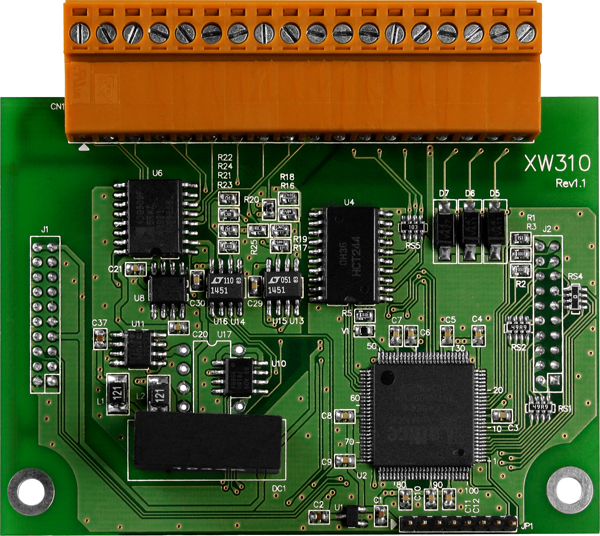

4-channel Analog Input Differential Wiring, 2-channel Analog Output at +/- 10 V, 3 Digital Input (Dry Contact), 3 Channel Digital Output (Open Collector).
| Analog Input | |
|---|---|
| Channels | 4 |
| Range | ±10 V |
| Resolution | 12-bit |
| Sampling Rate | 4 kHz |
| Input Impedance | 1 M Ohm |
| Overvoltage Protection | ±30 VDC |
| Isolation | non-isolated |
| Analog Output | |
|---|---|
| Channels | 2 |
| Range | ±10 V |
| Resolution | 12-bit |
| Voltage Output Capability | 20 mA |
| Isolation | non-isolated |
| Digital Input | |
|---|---|
| Channels | 3 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | 30 VDC |
| Digital Output | |
|---|---|
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ 40 VDC |
| Load Current | 200 mA/channel at 25 °C |
| Overload Protection | 1.4 A |
| Power | |
|---|---|
| Consumption | 0.9 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 66 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30°C ~ +75°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
