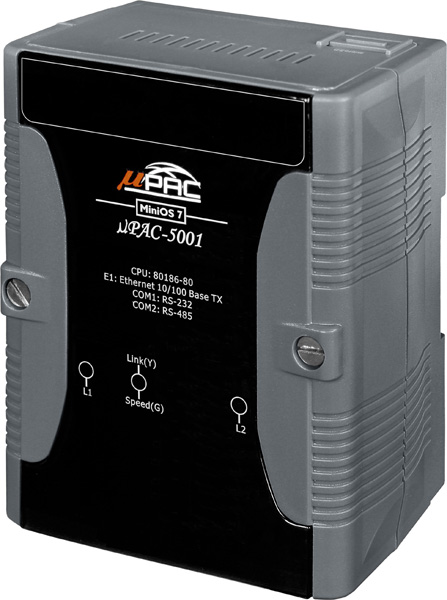

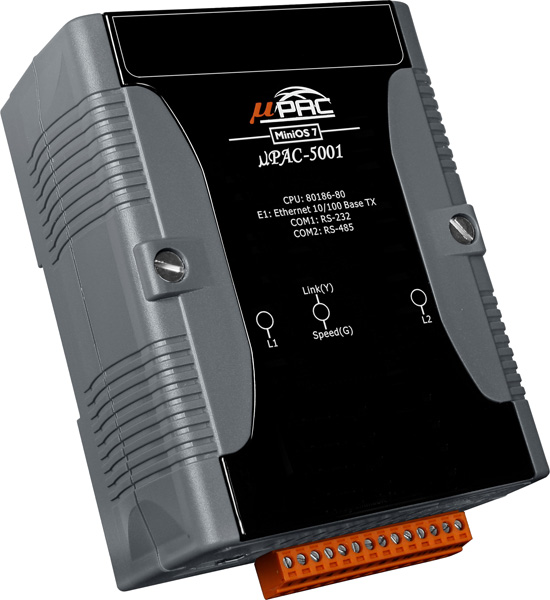

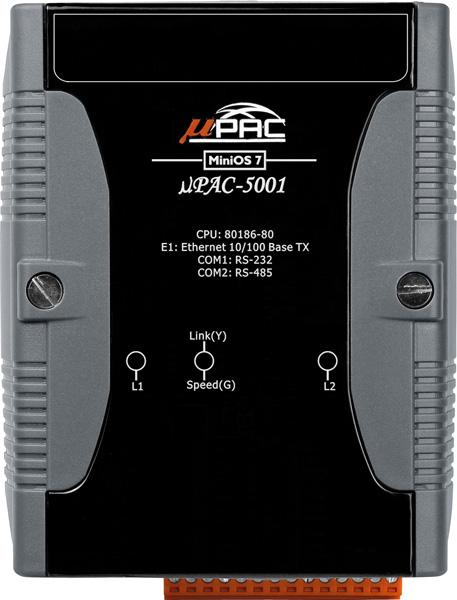

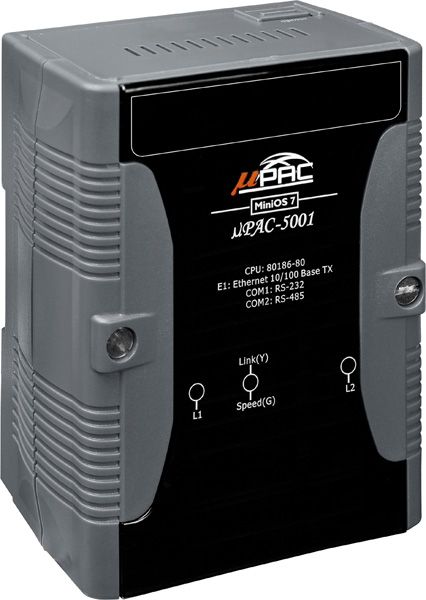

uPAC-5001

Introduction

The μPAC-5000 series is a palm-size programmable automation controller. It has a 80186 CPU, SRAM , Flash, Ethernet port, RS-232 and RS-485 port. With a DOS-like OS (MiniOS7) and a developed fi rmware running inside, it can act like a small PC.

ICP DAS provides easy-to-use software development tool kits (Xserver, MiniOS7 framework, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for μPAC-5000 series, you can choose one of them to expand hardware features.

Features

• MiniOS7 Inside
• C Language Programming
  • TCP/IP Library
  • Modbus Library

• Storage Media
  • microSD
• Various Communication Interfaces
  • 10/100 Base-TX Ethernet
  • RS-232/485
• 64-bit Hardware Serial Number
• I/O Expansion Bus
• Redundant Power Inputs
• PoE (Power over Ethernet)
• Operating Temperature: -25 ~ +75 °C
