NS-205R

$229.00
5-Port Industrial 10/100 Mbps Ethernet Switch (Robust Version). Supports Operating Temperature -40°C ~ +85°C (-40F ~ 185F).
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Switches and Converters with Plastic Cases | Industrial Ring Ethernet/Fiber Switch | Industrial Unmanaged Ethernet Switches
Review: Write your review
Resources:

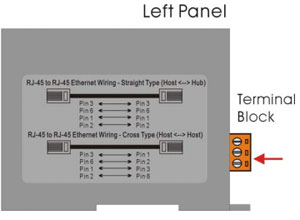

NS-205r left panel 5-Port Industrial 10/100 Mbps Unmanaged Ethernet Switch, DIN-Rail mount, manufactured with MIL-SPEC conformal coating. Conformal coating will allow operating temperature range to be increased to -40ºC~85ºC.

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • Store-and-forward
  • Supports 4 kV Ethernet ESD protection
  • 1.4Gbps high performance memory bandwidth.
  • Integrated look-up engine with dedicated 1024 unicast MAC addresses.
  • Supports +10 ~ 36V DC voltage
  • Supports operating temperatures from -40°C ~ +75°C
  • DIN rail mount for industrial usage
  • 1.4Gbps high performance memory bandwidth.

Specifications

  • Compatibility:IEEE 802.3, IEEE802.3u, IEEE802.3x
  • Interface: 10/100 Base-T(X)
  • Port: 10/100 Mbps x 5 (Shielded RJ-45 Jack)
  • Provides LEDs for network and power monitoring
  • Environment:
    • Operating temperature: -40°C ~ +85°C
    • Storage Temperature: -40 ~ +85°C
    • Relative Humidity: 10 ~ 90% HR, non-condensing
  • Dimensions: 33 mm x 78 mm x 107 mm (W x L x H)
  • Power requirements: +10 ~ 36V DC (Removable Terminal Block)
  • Power consumption: 0.1A@24VDC, ± 5% arrowed with 10M Full duplex.
    • 0.09A@24VDC, ± 5% arrowed with 100M Full duplex.
