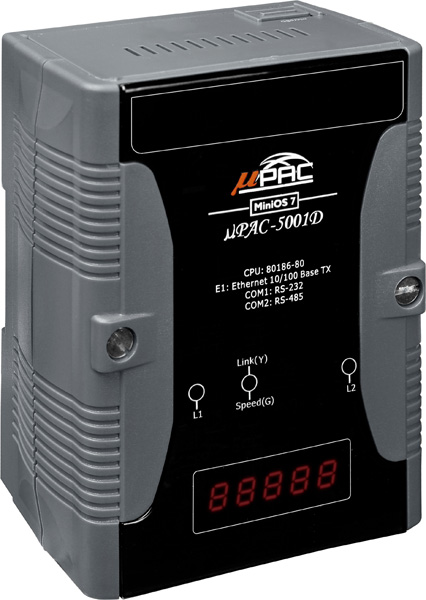

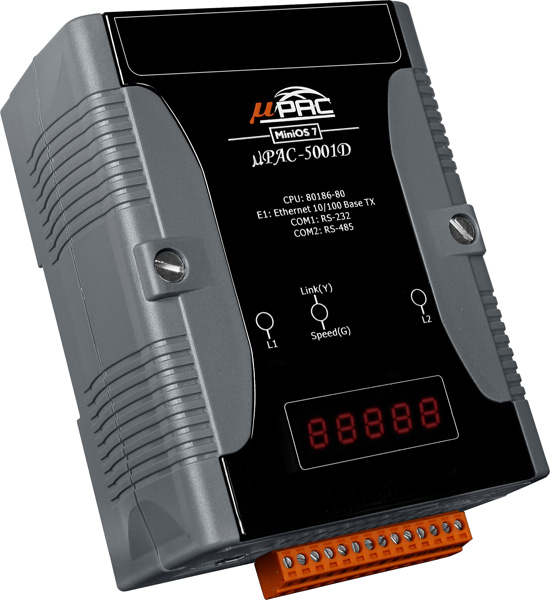

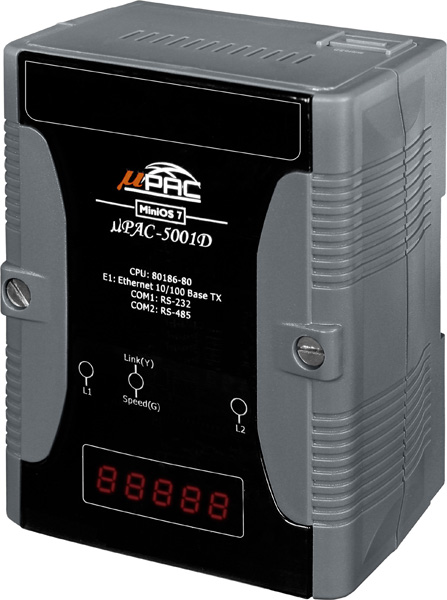

The μPAC-5XX1 series is an enhanced version of μPAC-7186EX. It provides C tool kits for C programmer. Owing to the bigger and special form factor design, the μPAC-5XX1 can add an internal wireless module, such as 2G, 3G, ZigBee, Wi-Fi, GPS for different wireless application. The optional I/O expansion board, XW-board, is two times larger than the X-board of μPAC-7186 and provides high-protection I/O. With built-in micro SD, the μPAC-5000 can be used as a data logger.
ICP DAS provides easy-to-use software development tool kits (Xserver, MiniOS7 framework, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
| System Software | |
| OS | MiniOS7 (DOS-like embedded operating system) |
| Development Software | |
| Download Interface | RS-232 (COM1) or Ethernet |
| Language | C language |
| Compilers | TC++ 1.01, TC 2.01, BC++3.1 ~ 5.2x, MSC 6.0, MSVC++ (before version 1.5.2) |
| CPU Module | |
| CPU | 80186, 80 MHz |
| SRAM | 512 KB |
| Flash | 512 KB |

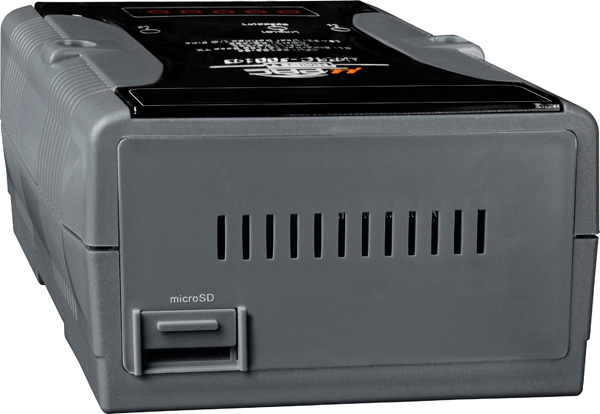

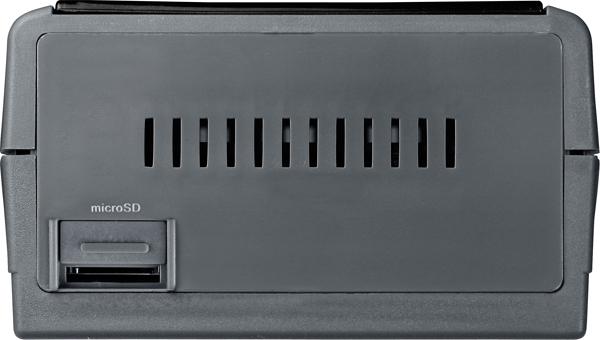

| microSD Expansion | Yes, can support 1 or 2 GB microSD |
| NAND Flash Disk | V |
| 512 KB Battery Backup SRAM | V |
| EEPROM | 16 KB |
| NVRAM | 31 Bytes (battery backup, data valid up to 10 years) |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| Watchdog Timers | Yes (0.8 second) |
| Communication Ports | |

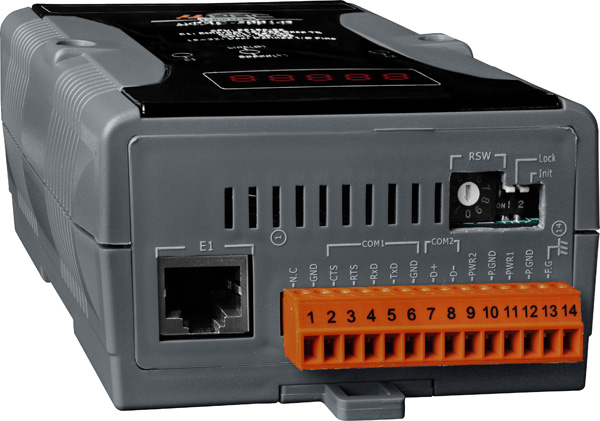

| Ethernet | RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM 1 | RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max. |
| COM 2 | RS-485 (Data+, Data-) with internal self-tuner ASIC; non-isolated, Speed: 115200 bps max. |
| LED Indicator | |
| Programmable LED Indicators | 2 |

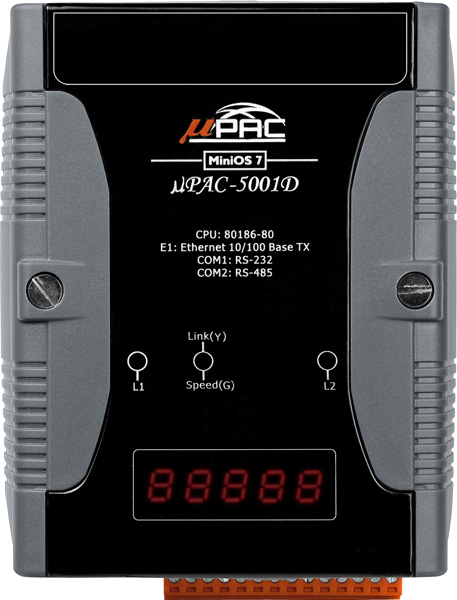

| LED Display | 5-digit 7-segment LED display for (D) versions |
| Hardware Expansion | |
| I/O Expansion Bus | Yes (for one XW-Board only) |
| Mechanical | |
| Dimensions (W x H x D) | 91 mm x 123 mm x 52 mm |
| Installation | DIN-Rail Mounting |
| Environmental | |
| Operating Temperature | -25 ~ +75XC |
| Storage Temperature | -30 ~ +80XC |
| Ambient Relative Humidity | 10 ~ 90% RH (non-condensing) |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Isolation | V |
| Redundant Power Inputs | Yes |
| Protection | Power reverse polarity protection |
| Frame Ground | Yes (for ESD Protection) |
| Power Consumption | 2 W; 2.5 W for (D) version |
