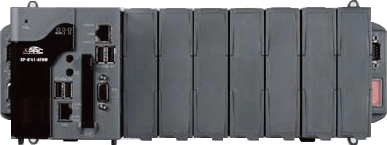

The XP-8000-WES7 series are WES7 based Programmable Automation Controller of ICP DAS. By combining computing, I/O, and operator interface into a single unit. Embedded with a x86 (1 GHz, dual-core) CPU, 1/3/7 I/O expansion slot(s) and dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface connectivity, the XP-8000-WES7 series provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC.. Local I/O slots can be used with I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules.
Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC.
| System Software | |
| OS | Microsoft Windows Embedded Standard 7 |
| .Net Compact Framework | 4.5 |
| Embedded Service | FTP Server, IIS 7, ASP (Java Script, VB Script) |
| SDK Provided | Dll for VC, VB, Delphi, BCB, Visual Studio .NET 2005/2008 |
| Multi-Language Support | English, German, French, Spanish, Russian, Italian, Portuguese, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| CPU Module | |
| CPU | x86 CPU, 1 GHz, dual-core |
| SDRAM | 2 GB DDR3 SDRAM |
| Dual Battery Backup SRAM | 512 KB (for 5 years data retain while power off) |
| Flash | 32 GB |
| EEPROM | 16 KB Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card | 8 GB (support up to 32 GB) |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| Programmable LED Indicator | 2 |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| Dual Watchdog Timers | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Audio | Microphone-In and Earphone-Out |
| VGA & Communication Ports | |
| VGA | Yes, (resolution: 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480) |
| Ethernet (Giga bit) | RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 | 4 |
| COM 1 | Internal communication with the high profile I-87K series modules in slots |
| COM 2 | RS-232 (RxD, TxD and GND); non-isolated |
| COM 3 | RS-485: D2+, D2-; self-tuner ASIC inside Isolation: 3000 VDC |
| COM 4 | RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
| COM 5 | RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| I/O Expansion Slots | |
| Slot Number | 7 |
| Hot Swap Will be available | For High Profile I-87K Modules Only |
| Mechanical | |
| Dimensions (W x L x H), unit: mm | 355 x 132 x 125 |
| Installation | DIN-Rail or Wall Mounting |
| Environmental | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Ambient Relative Humidity | 10 ~ 90% RH,non-condensing |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Isolation | 1 kV |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity | 35 W |
| Consumption | 18 W |
