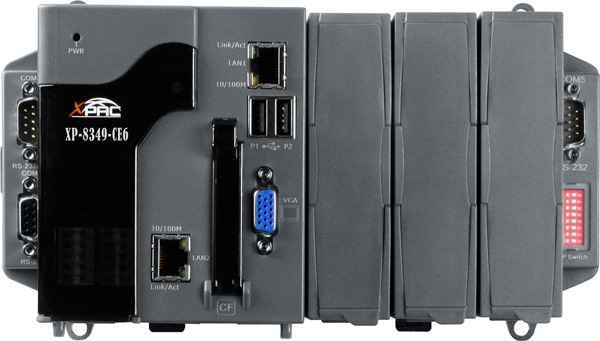

XP-8349-ATOM-CE6

$0.00

XP-8349-ATOM-CE6 Programmable Automation Controller with InduSoft inside. Support +200 Communication drivers. Supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F)

Product Unavailable

Share On:
Categories:	X-PAC Windows Embedded PAC
Review:	Write your review
Resources:	User's Manual Demo Software Data Sheet InduSoft SCADA Software FAQ

XP-8349-ATOM-CE6 has been phased out. Click here for replacement XPAC product details.

Windows Embedded CE 6.0
Integrated with InduSoft Web Studio
IIS, ASP.NET, .NET Framework 3.5
VS.NET 2003/2005/2008 and EVC++ Supported
Support DCON/Modbus/OPC/DDE Protocol
Host the application using Web Browser (Internet Explorer)
Supports third-party SQL relational databases

XP-8x49-Atom-CE6 is the new generation Windows CE 6.0 based InduSoft PAC (Programmable Automation Controller) of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.

XP-8000-Atom--CE6 series equips a Intel Atom Z500 Series, variant connectivity (VGA, USB, Ethernet, RS-232/RS-485), and 1/3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Its operating system, Windows Embedded CE 6.0 is an operating system with resource saving and real-time capability as their main features. To develop XP-8000-Atom--CE6, the time spent for development is not much especially with our SDK and pluggable IO modules.

Specifications

Models
System Software
OS		Microsoft Windows Embedded CE 6.0
Preloaded Software		InduSoft Web Studio v6.1 Service Pack 6 (NTView Pro: 300 Tags, 3 Drivers ,and 4 Web Thin Clients)
CPU Module
CPU		Intel Atom Z510 CPU (1.1 GHz)
System Memory		512 MB DDR2 SDRAM
Dual Battery Backup SRAM		512 KB (for 5 years data retain while power off)
Flash		8 GB as IDE Master
EEPROM		16 KB
		Data Retention: 40 years; 1,000,000 erase/write cycles
CF Card		8 GB (support up to 32 GB)
64-bit Hardware Serial Number		Yes
Dual Watchdog Timer		Yes
Rotary Switch		Yes (0 ~ 9)
DIP Switch		Yes (8 bits)
VGA & Communication Ports
VGA		Yes, (resolution: 1024 x 768, 800 x 600, 640 x 480)
Ethernet Port		RJ-45 x 2, 10/100 Base-TX Ethernet Controller (Auto-negotiating, auto MDI/MDI-X, LED indicator)
USB 2.0		4
COM 1		Internal communication with I-87K modules in slots
COM 2		RS-232 (RXD, TXD and GND); Non-isolation
COM 3	RS-485	D2+, D2-; self-tuner ASIC inside
	Isolation	3000 VDC
COM 4		RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5		RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number		3 slots
Hot Plug * Will be available		For high profile I-87K modules only
Mechanical
Dimensions (W x L x H)		231 mm x 132 mm x 125 mm
Installation		DIN-Rail or Wall Mounting
Environmental
Operating Temperature		-25 °C ~ +75 °C (-13°F ~ +167°F)
Storage Temperature		-30 °C ~ +85 °C (-22°F ~ +176°F)
Ambient Relative Humidity		5% ~ 90% RH, non-condensing
Power
Input Range		+10 ~ +30 VDC
Isolation		1 kV
Redundant Power Input		Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity		1.8A, 5V supply to CPU and backplane, 5.2A, 5V supply to I/O expansion slots, total 35 W
Consumption		14.4 W (0.6 A @ 24 VDC)
