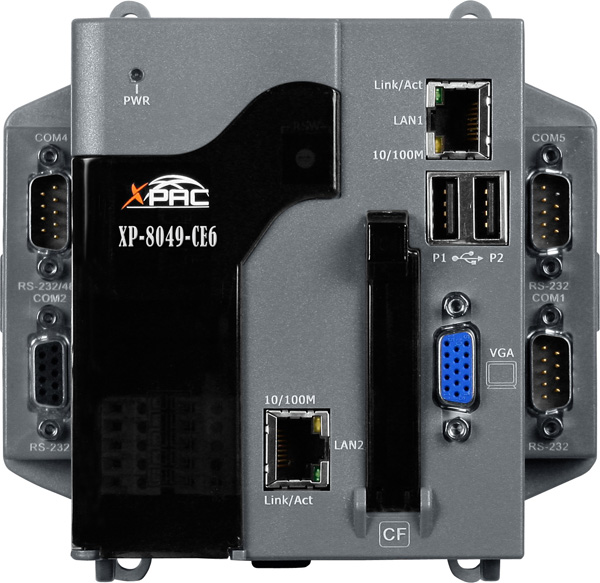

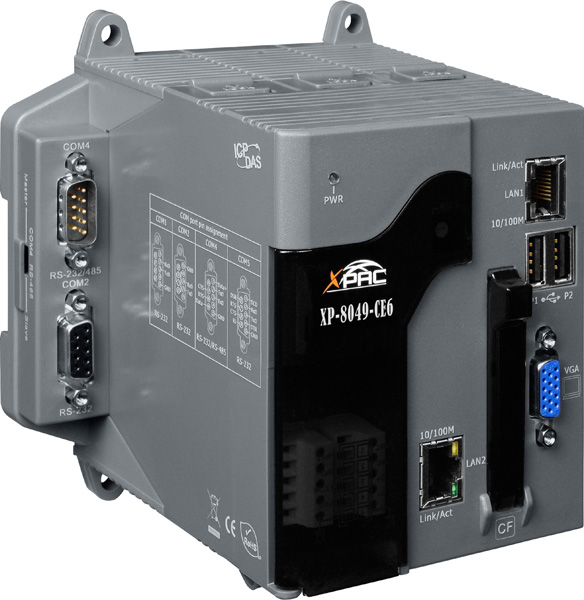

XP-8049-CE6-EN-1500R

XP-8x49-CE6 is the new generation Windows CE 6.0 based InduSoft PAC (Programmable Automation Controller) of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.

XP-8000-CE6 series equips a AMD LX 800 CPU (500MHz), variant connectivity (VGA, USB, Ethernet, RS-232/RS-485), and 3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Its operating system, Windows Embedded CE 6.0 is an operating system with resource saving and real-time capability as their main features. To develop XP-8000-CE6, the time spent for development is not much especially with our SDK and pluggable IO modules.

Software Features InduSoft Web Studio General Features

IWS applications run on microcomputers connected in real-time to machines or processors through XP-8000-CE6 programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.

InduSoft Integrated with XP-8000-CE6

Easy steps to accomplish your system.

Communication drivers are provided by ICP DAS.

Supports more than 200 Communication drivers such as Siemens, Omron and so forth.

InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server.

Monitor and control system from both sites (WinPAC) and control room (PC)

Access Database Easily

Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc.

Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway.

Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and      avoid loss of data.

SNMP Protocol Supported

I/O Status of WinPAC can be gathered via Internet by polling or inform actively(trap) mode to remote SNMP manager station.

WinPAC controller can be treated as a SNMP gateway to transfer the information including I/O and user-defined data to SNMP      manager station.

Integrating I/O and Network information in SNMP manager station.

Web Thin Clients

Use a regular WEB Browser (Internet Explorer) to host the application.

Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data.

Provide Multi-level security for applications, including the Internet and Intranet.

Useful Package Tool is Provided

ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc.

By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application.

Reduce the number of used drivers.

To integrate with GSM/GPRS external modem easily.

Hardware Features

1. AMD LX800 CPU (32-bit and 500MHz)
2. 1 GB RAM
3. 4GB Built-In Flash Disk
4. Built-in VGA Port
5. 64-bit Hardware Serial Number
6. Dual Watchdog Timer
7. Dual Battery-Backup SRAM (512KB)
8. Dual Ethernet Port
9. Redundant Power Input
10. Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃
