WP8-GUP-1800 (can only upgrade within 30 days)

Win-GRAF is a powerful SoftLogic development software and PLC-like SoftLogic package that supports IEC 61131-3 Standard Open PLC Languages running on Windows 7 and Windows 8. The Win-GRAF Runtime application can run on any ICP DAS PAC (Programmable Automation Controller) that supports the Win-GRAF, such as the WinCE series WinPAC WP-8xx8 and WP-5xx8, or the WinCE series touch panel ViewPAC VP-25W8 and VP-4138, or the advanced CPU XPAC XP-8xx8-CE6、XP-9xx8-CE6 and XP-8xx8. Using the Win-GRAF software with ICP DAS Win-GRAF PACs, the control/monitor systems can easily implement industrial level of real-time data acquisition and logic control via wiring or wireless network in various industry fields.  You can upgrade your existing WinCE 5.0 PACs to have Win-GRAF runtimes within 30 days of purchase.

Applications

• Data Acquisition System
• Distributed Control System (DCS)
• Factory Automation
• Building Automation
• Remote I/O system
• Wireless Monitor/Control System
• Motion Control System and so on

Win-GRAF Workbench Features

Support IEC 61131-3 Standard Open PLC Languages:

1. Ladder Diagram (LD)

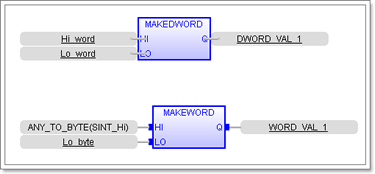

2. Function Block Diagram (FBD)

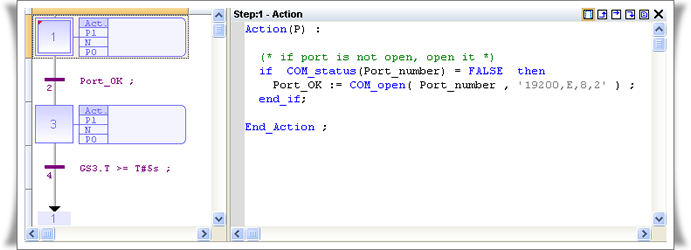

3. Sequential Function Chart (SFC)

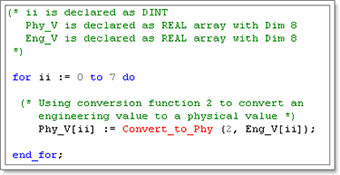

4. Structured Text (ST)
5. Instruction List (IL)

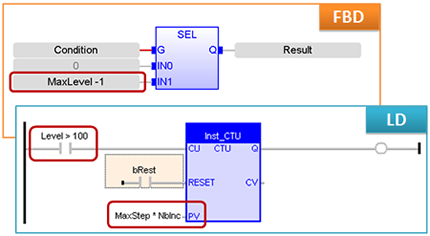

Using ST Syntax in the FBD or LD Program

On Line Debug/Control/Monitor

Off Line Simulation on PC

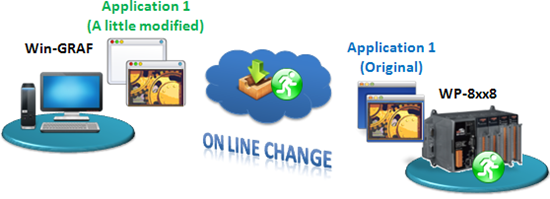

On-Line Change :

Replace the current running project to a new modified one without stopping the project.

Data Binding :

Exchange data between PACs.

Upload Source Code From PAC to PC

Recipe: Apply multi-recipes pre-defined in PC/Win-GRAF to PAC.

Spy List: Show several selected variables in one Spy List window.

Win-GRAF PAC Features

Support Soft-GRAF HMI

Soft-GRAF is a free HMI software by ICP DAS.

All WinCE Win-GRAF PACs support Soft-GRAF HMI, including: WP-5xx8, WP-8xx8, VP-25W8,VP-4138, XP-9xx8-CE6 and XP-8xx8-CE6.

Provides various HMI objects, such as Button, Numeric Display, Trends, Angular Gauge, Alarm List, Logger, etc.

Modbus Master Protocol

Multi-port Modbus RTU, ASCII Master, RS-232/485/422.

Modbus TCP Master (Multiple connections).

Connect other Modbus PLC, Modbus Master, Modbus I/O and Modbus devices

Modbus Slave Protocol

Multi-port Modbus RTU Slave, RS-232/485/422.

Modbus TCP Slave (Multiple connections).

Connect PC/SCADA/HMI.

Support File Access & Data Log

Exchange Data between PACs (DCS)

Up to 32 Win-GRAF PACs can use Data Binding to exchange application data and control data to each other.

Support DCON I/O

Support RS-485 Port to connect the ICP DAS I-7000 I/O modules, and I-87K4/5/8/9 Expansion Unit plus
   I-87xxxW I/O boards, and RU-87P4/8 Expansion Unit plus I-87xxxW I/O boards.

Support a Variety of I/O Boards

Support I-8xxxW and I-87xxxW I/O boards, such as DI, DO, AI, AO, Relay, AC-IN, Thermister, Thermo Couple,
   RTD, Strain Gauge, Encoder, PWM output, Counter, Frequency, etc.

Support Temperature/Humidity Modules

DL-100T485 and DL-100TM485.

Support Retain Variables

WP-8xx8, WP-5xx8, VP-25W8, VP-4138, XP-8xx8-CE6, XP-9xx8-CE6 support retain variables. Suitable to
   retain the data changed quickly and frequently.

Protect Application by Own Algorithm

Protect the Win-GRAF application by user-defined algorithm. Even others copy the application to the same
   model PAC, as long as he cannot get the source code, can not run the application correctly.

Redundant Solution

XP-8xx8-CE6 and XP-9xx8-CE6 support the Win-GRAF redundant system to achieve the more secure
   engineering applications.

Schedule-Control

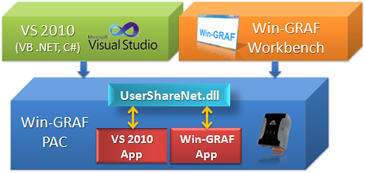

Support VS 2008/VS 2010 Development:

The Win-GRAF PACs support to use VS 2008 or VS 2010 (VB.net, C#) to develop user own HMI and data management programs, and can exchange variables with the Win-GRAF control programs.
