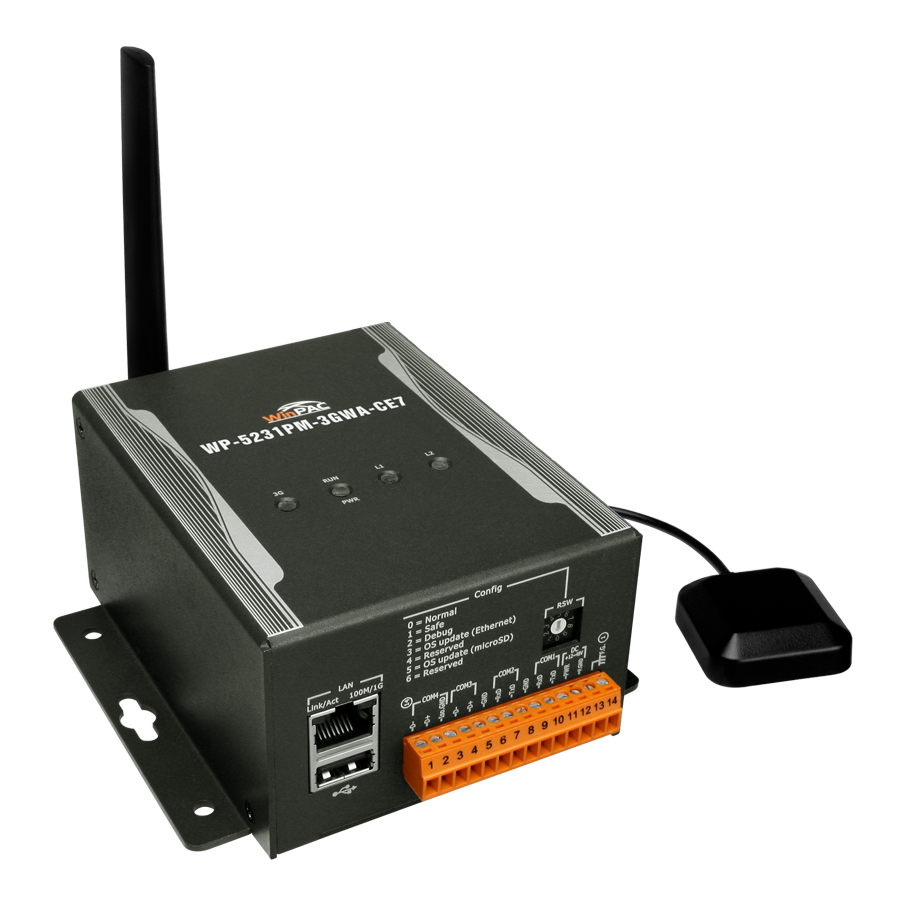

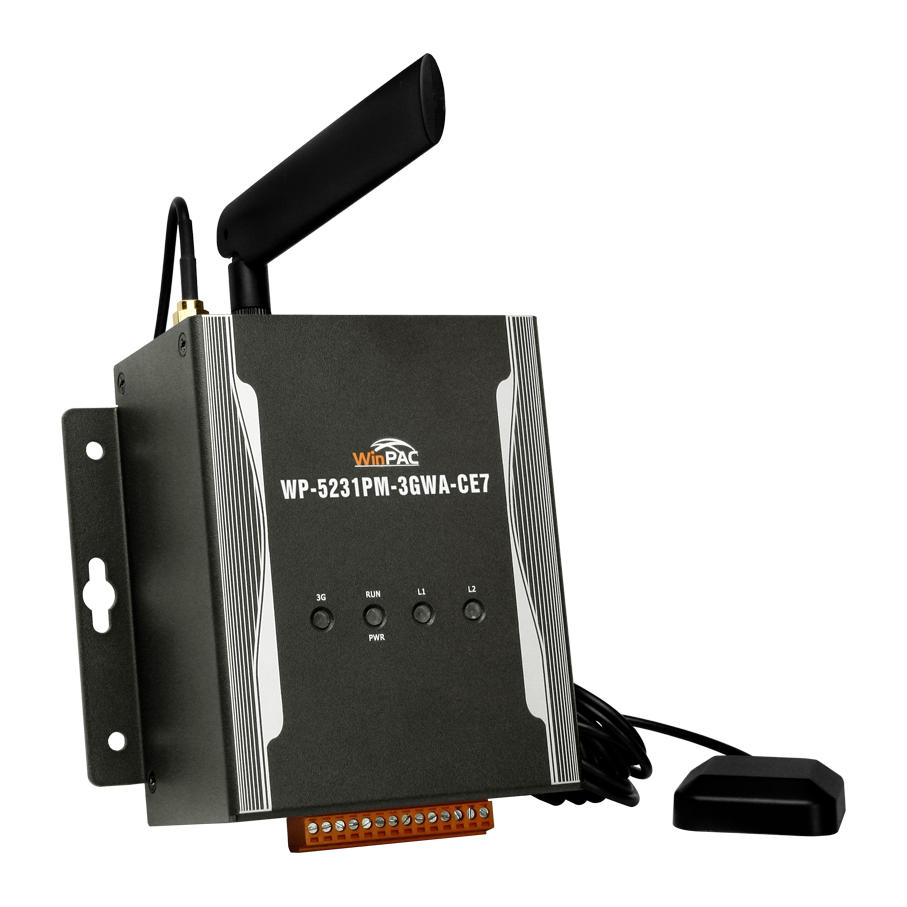

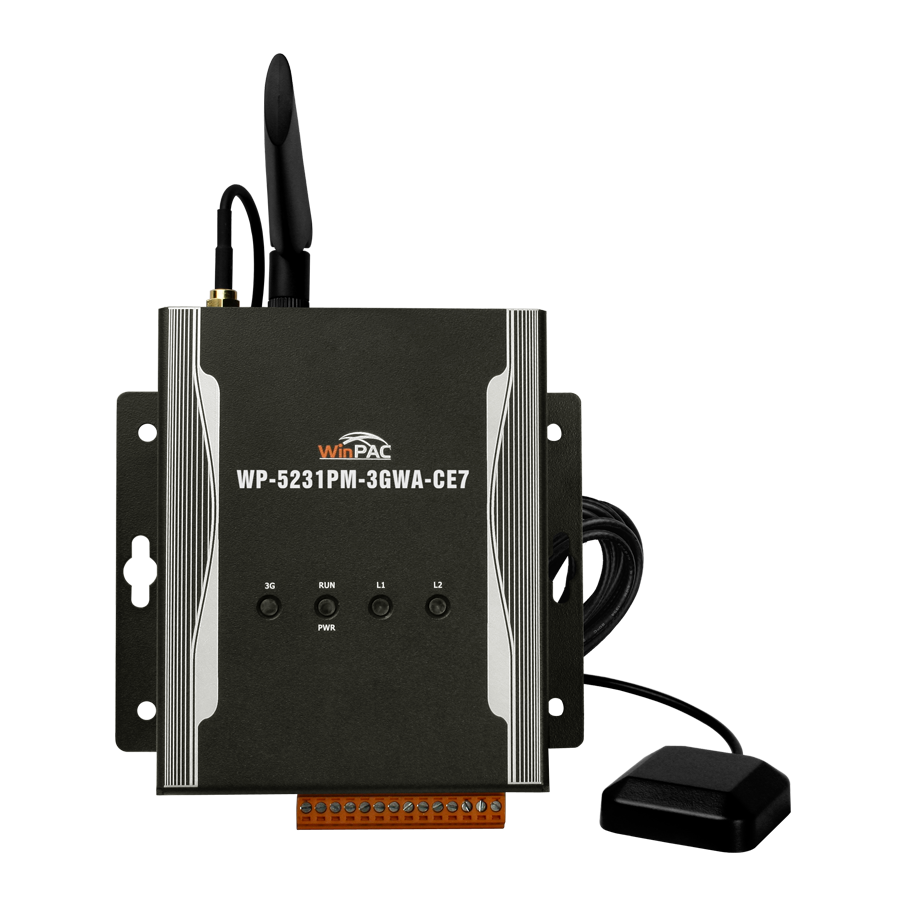

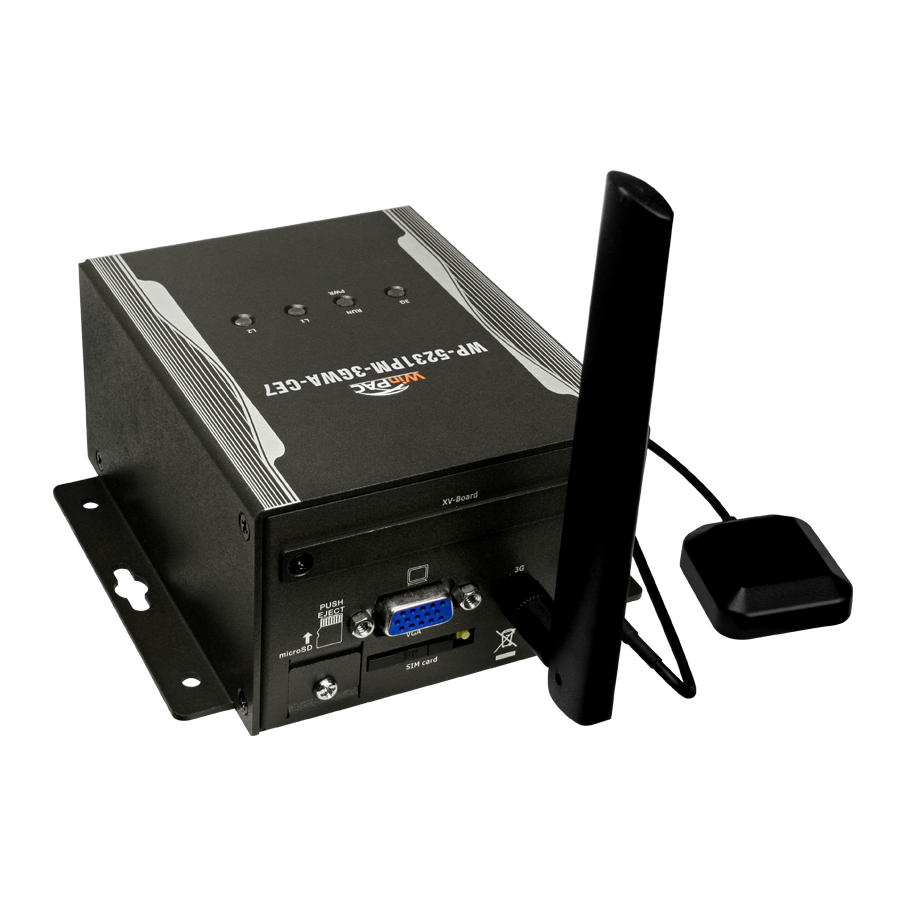

The WP-5231PM-3GWA-CE7 is equipped with Cortex-A8 CPU (1GHz) and runs on Windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. The WP-5231PM-3GWA-CE7 has a built-in flash and microSD to save application programs, image file and data. The WP-5231PM-3GWA-CE7 is a 3G module that runs on frequencies of WCDMA 2100/1900/900/850 MHz and GSM 850/900/1800/1900 MHz. This module utilizes the 3G network, making it convenient and cost effective for data transfer from remote instruments, meters, computers or control systems in either live data or packet data. Designed with the integration of TCP/IP stack allowing even the simple controllers with serial communications ports be connected to the modem without the need for special driver implementation.
System Software
OS
Windows CE 7.0 Professional
.Net Compact Framework
3.5
Embedded Service
FTP server, Web server
SDK Provided
Dll for Visual Studio.Net 2008
Multilanguage Support
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
CPU Module
CPU
Cortex-A8, 1GHz
DDR3 SDRAM
256 MB
Flash
256 MB
FRAM
64 KB
Expansion Flash Memory
microSD socket with one microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number
Yes, for Software Copy Protection
Dual Watchdog Timers
Yes, for Software Copy Protection
LED Indicators
1 LED for Power and Running; 2 LED for user defined
Rotary Switch
Yes (0 ~ 9)
VGA & Communication Ports
VGA and Communication Ports
640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet
RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host)
1
COM 1
Console Reserved for OS
COM 2
RS-232 (RxD, TxD and GND); Non-isolated
COM 3
RS-485 (Data+, Data-); Non-isolated
COM 4
RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus
Yes, one optional XV-board
Mechanical
Casing
Metal
Dimensions (W x L x H)
91 mm x 132 mm x 52 mm
Installation
Wall Mounting
Environmental
Operating Temperature
-25 to +75°C
Storage Temperature
-40 to +80°C
Ambient Relative Humidity
10 to 90% RH (non-condensing)
Power
Input Range
+12 to +48 VDC
Consumption
6.5 W
GSM System
Frequency Band
GSM: 850/900/1800/1900 MHz
GPRS Connectivity
GPRS class 12/10; GPRS station class B
Data GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8k bps
3G System
Frequency Band
WCDMA 850/900/1900/2100 MHz
Data Transmission
WCDMA / HSPA+, Download: Max. 14.4Mbps; Upload: Max 5.76Mbps
GPS System (option)
Support Channels
32
Protocol Support
NMEA 0183
