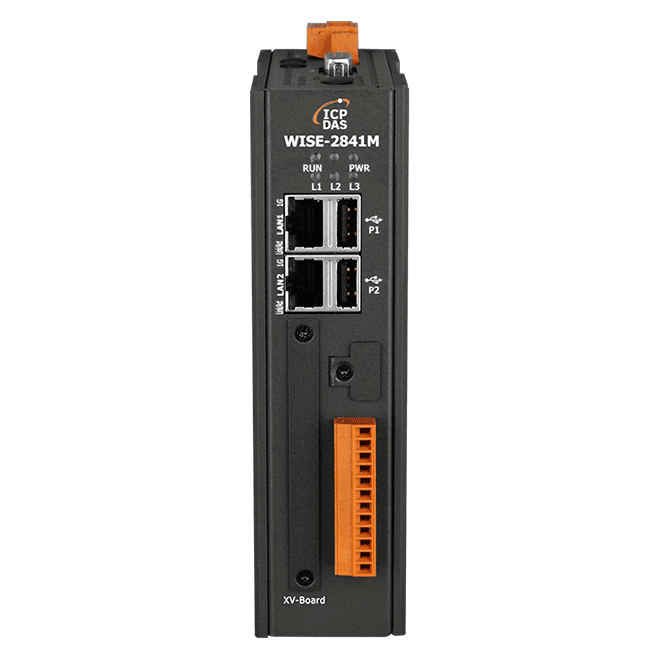

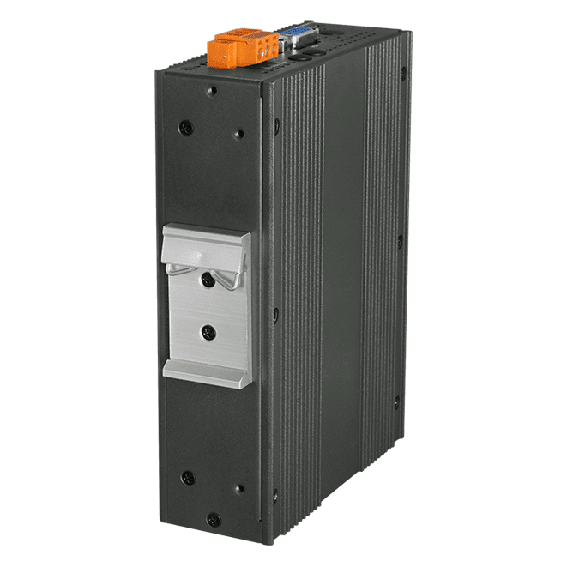

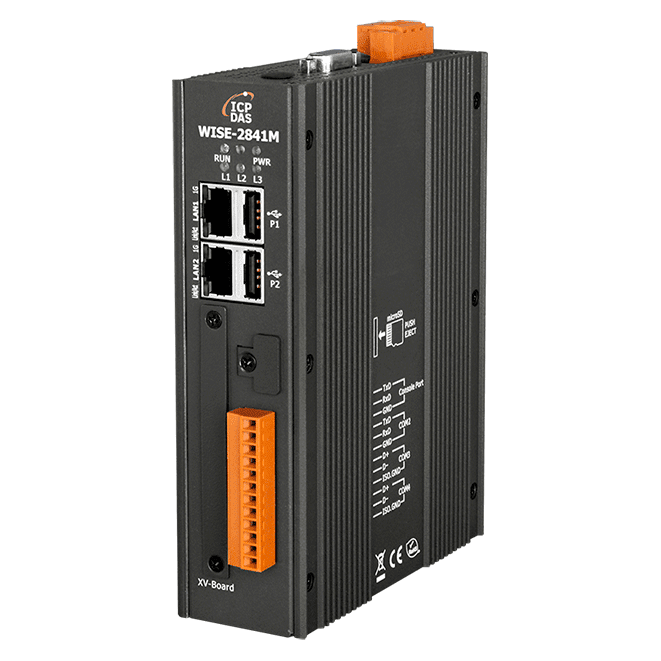

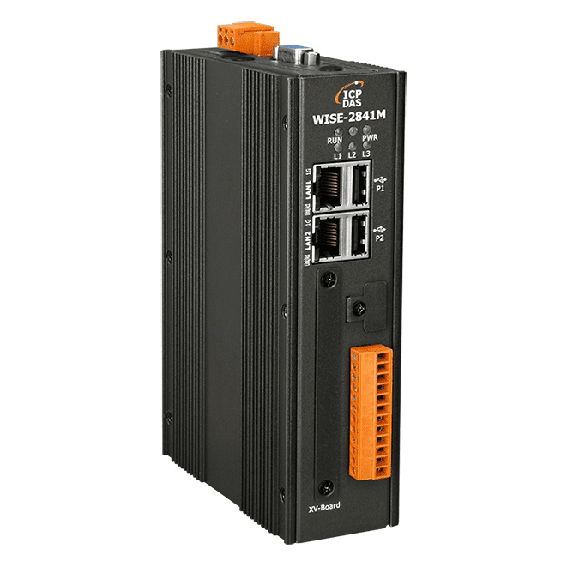

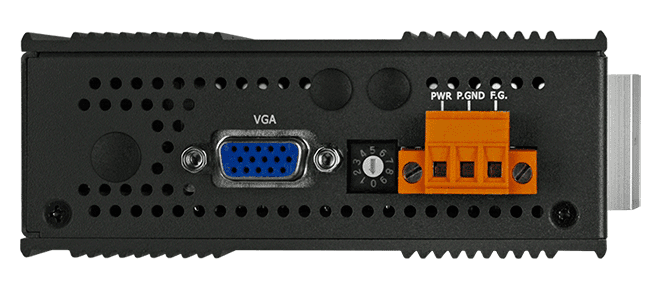

WISE-2841M

Introduction

The Advanced IIoT Edge Controller - WISE-2841M inherits the features of the original WISE series controllers: perform system setting and monitoring by browser, powerful IF-THEN-ELSE logic operation capability, connection ability to a variety of I/O modules, support data computing and real-time message notification functions

To address the increasing demands for information security in IoT systems, WISE-2841M offers a range of encrypted communication protocols. With HTTPS, users can securely access the web interface without concerns about unauthorized access to settings. The controller supports SNMP v3 for seamless and secure integration with IT and network management systems. SFTP and FTPS protocols enable secure downloading of logged data files.

Security is further enhanced through blacklist and whitelist controls, allowing domain-based traffic filtering. The built-in VPN functionality allows WISE-2841M to communicate with devices in protected network environments, isolating it from external security threats.

For cloud integration, WISE-2841M supports leading IoT platforms including Amazon Web Services (AWS), Microsoft Azure, and IBM Bluemix, as well as ICP DAS's IoTstar Cloud Management Software.

With its strong interoperability, advanced security features, and seamless IT/IoT integration, the WISE-2841M stands out as a leading IIoT edge controller for the modern IoT landscape.

Features

• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Support XV-board.
• Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
• Support Modbus TCP Slave modules (Up to 16).
• Timer and Schedule functions supported.
• Data logger and data files send back function supported.
• Active I/O sending function for real-time data transfer.
• CGI Command sending and receiving function supported for IP Camera and Network device.
• Support Modbus TCP/RTU, FTP, MQTT and SNMP v2c/v3 protocols.
• Support HTTPS, SFTP, FTPS encrypted communication protocols.
• Support VPN function.
• Support Line, Telegram, WeChat and Email real-time message sending.
  • Please note: An Enterprise WeChat account in China is required for WISE to send the messages to the members under the enterprise WeChat account.
• Support Connection with IoT Cloud Platform (Amazon Web Services, Microsoft Azure and IBM Bluemix).
• Support IoTstar Cloud Management Software.
