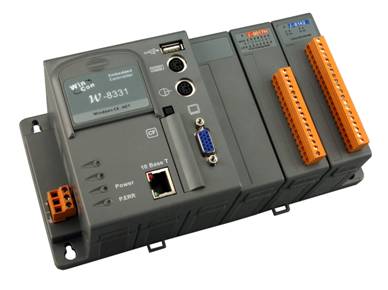

W-8x36

$0.00

Windows CE.net programmable automation controller, for use with both ISaGRAF & Indusoft development software. Available in 0, 3, and 7 slot configurations.

Product Unavailable

Share On:
Categories:
Review:	Write your review
Resources:	WinCON Technical Support Documentation WinCON Utilities WinCON OS Image Library WinCON SDK Updates WinCON Code Examples WinCON Compact Flash Updates WinCON Library Updates RS-485 Expansion Racks Ethernet Expansion Racks I-8000 I/O Modules I-87K I/O Modules Setting up Printers with Wincon

WinCON is being phased out. WinCON has been replaced by WinPAC. Click here for WinPAC product details.

The WinCON W-8x36 series takes full advantage of both Indusoft’s "Web-Ready" HMI suite, and ISaGRAF’s powerful IEC-1131 programming suite! With a W-8x36 WinCON, users can comfortably integrate powerful, web-based SCADA applications; allowing for cutting edge remote HMI possibilities, as well as comfortably integrate programs developed in any one of the IEC-61131-3 based languages, including: Sequential function chart, Function block diagram, Structured text, Instruction list, Ladder diagram, and flow chart.! The W-8x36 provides the ultimate, no compromise solution for robust automation applications!

Being one of the forerunners of PAC technology, ICP DAS proudly offers a multitude of powerful and flexible platforms for implementing programmable automation control technology into your existing industrial control infrastructure. ICP DAS has teamed up with our embedded partners, to ensure you that the Windows CE.net based W-8000 series of programmable automation controllers far exceeds anything else on the market today!

The ICP DAS W-8000 platform has several powerful software configurations, enabling users to maximize productivity, while maintaining the comfortable familiarity of industry standard communication protocols and operating systems. With longstanding relationships with both Microsoft and Red Hat Linux, W-8000 PAC users have the freedom to choose not only their standard operating environment, but also the added flexibility to dictate both their logic and HMI runtimes as well. Users benefit from such familiar development environments as: Microsoft Embedded Visual C++, Visual Basic .NET, and Visual C# to develop your applications. By offering comprehensive software, SDK, WinCon Utility and WinConOPC Sever utilities, development time is drastically reduced!

Specifications

The MCU (Main Control Unit) of WinCon-8x3x is the powerhouse of the W-8x3x. Each MCU comprises a Central Processor Module(CPM) and a wide-range power supply. Except the zero-slot version, there is a three or seven slot backplane for either 3 or 7 Parallel or Serial I/O modules. The CPM is powerful integrated processing engine comprising a CPU, the internal 32M bytes flash memory and 64M bytes SDRAM. The CPM offers an additional memory medium in Compact Flash type II format. Ethernet port is also part of the basic configuration. The CPM is equipped with PC interface: PS/2(keyboard and mouse), VGA port and USB port. Further system interfaces or fieldbus connections such as Modbus/TCP and CANopen/DeviceNet are available in the basic MCU of WinCon.

WinCon-8000 with Display	W-8031/8037/ 8039	W-8331/8337/ 8339	W-8731/8737/ 8739
Processor	compatible with Intel Strong ARM CPU, 206MHz
Operating System	Windows CE.NET
Pre-load Software	Standard WinConSDK for W-8031/8331/8731 ISaGRAF Software for W-8037/8337/8737 InduSoft Software for W-8039/8339/8739
SDRAM	64M bytes
Flash	32M bytes
EEPROM	16K bytes
Expansion Slot	1 x Compact Flash type II insert with ejector
Interface	1x USB1.1, 2 x PS/2 port(Keyboard and Mouse), 1 x VGA port
Ethernet Port	1 x RJ45, 10BaseT
COM 2	9-pin D-Sub (RS-232)
COM 3	2-wire Terminal Block (RS-485)
Additional Serial Port	N/A
Default Function	64-bit hardware unique serial number Reset button Power LEDs Watchdog Timer Real Time Clock
I/O Expansion Slot	0	3	7
Operating Temp.	-25°C to +75°C
Storage Temp.	-30°C to +85°C
Humidity	5 ~ 95%
Power Supply	20W, Unregulated +10Vdc to +30Vdc
Dimensions (LxHxD)(mm)	114 x 110 x 90	229 x 110 x 90	354 x 110 x 90
Mount:	Din Rail Mount
