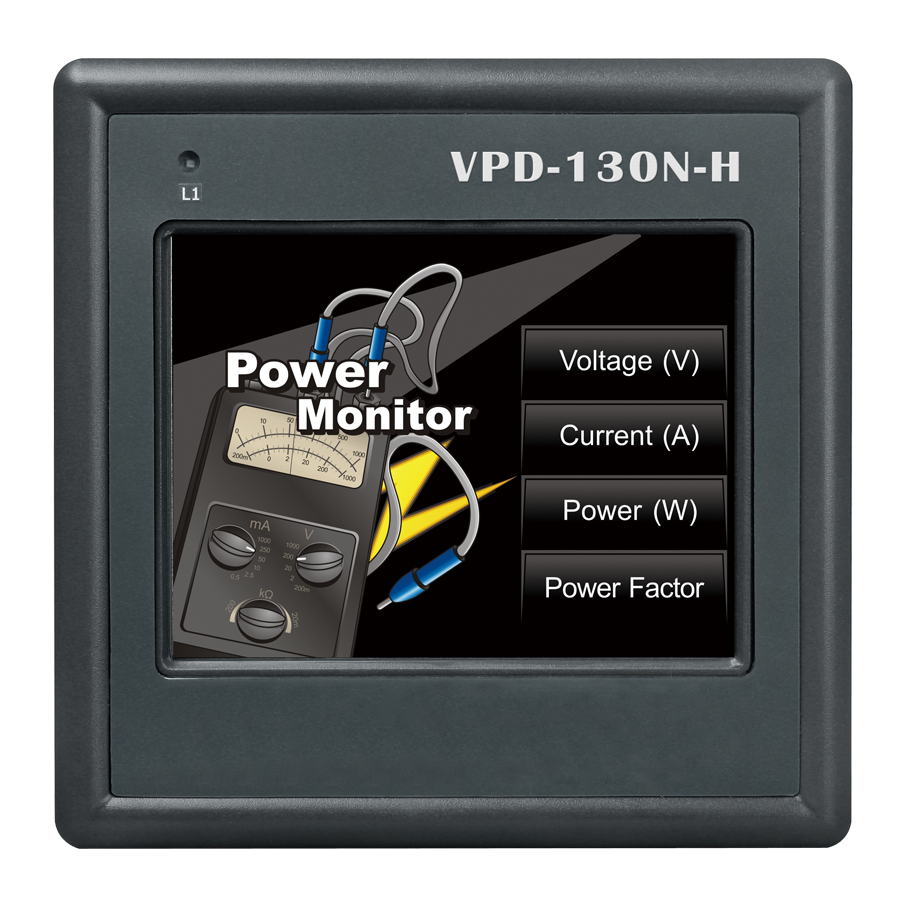

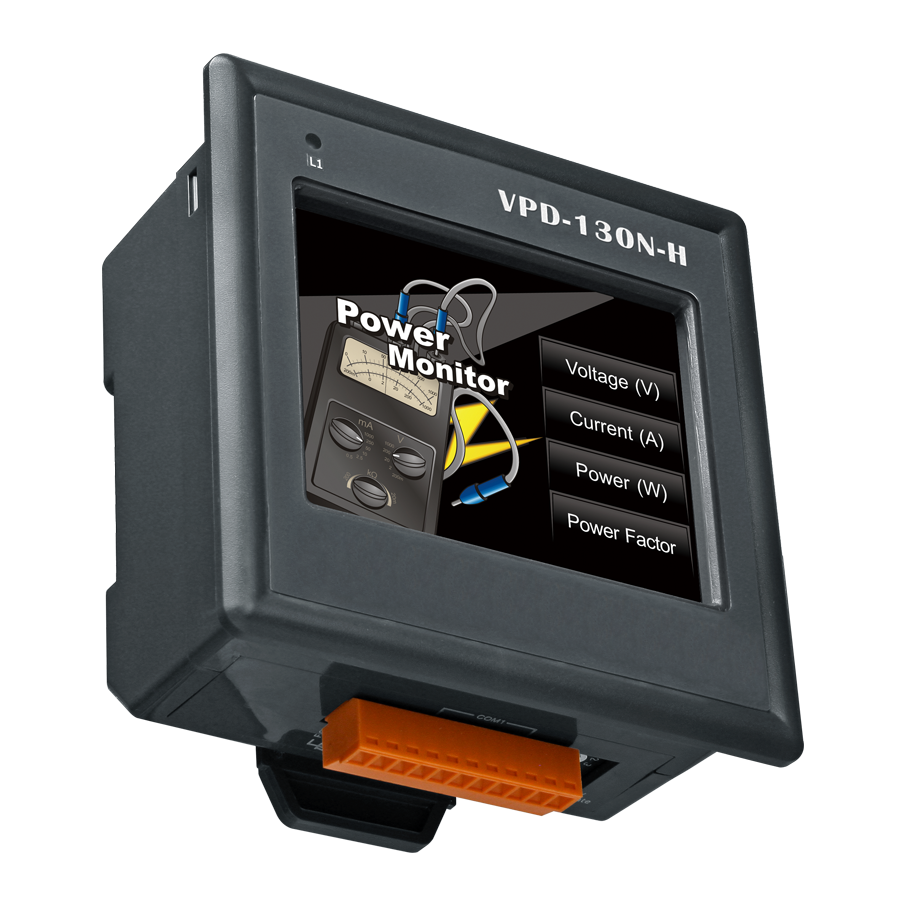

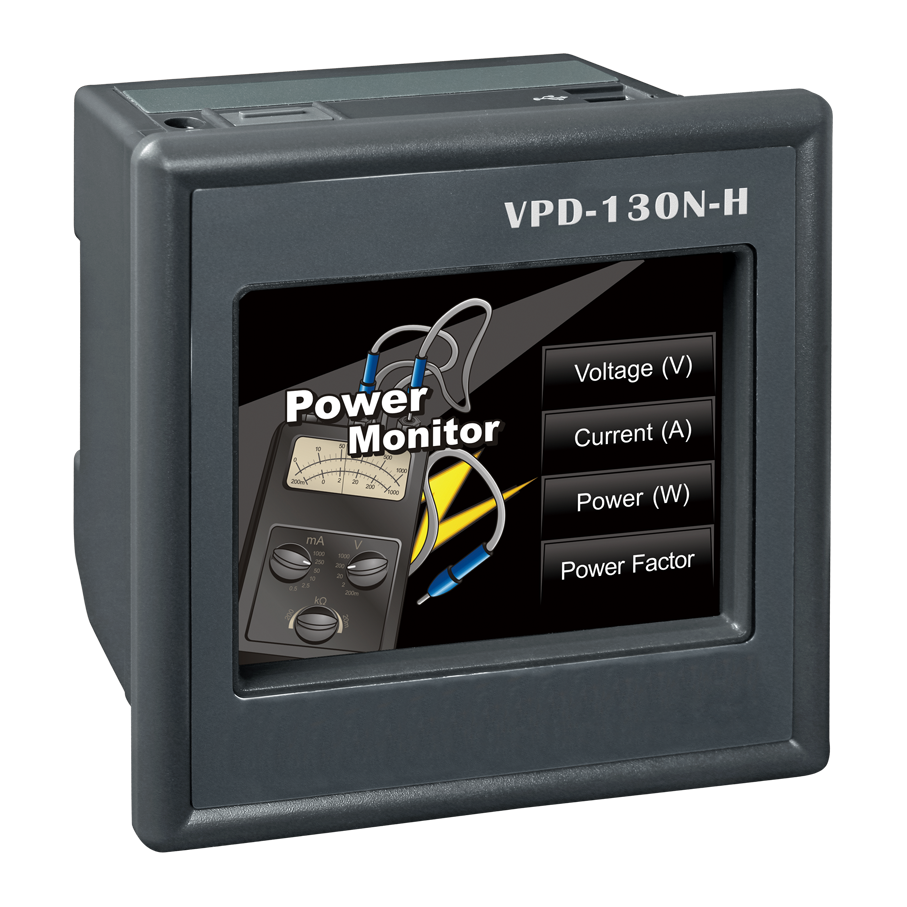

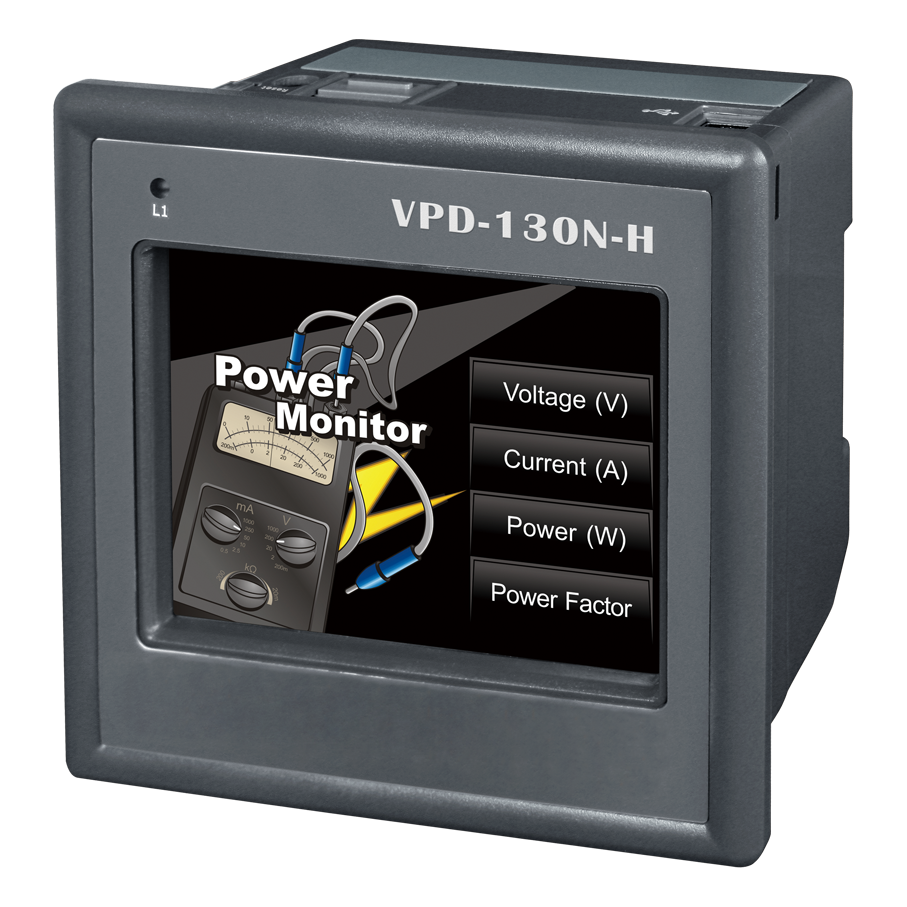

VPD industrial touch HMI device series features, 3.5" high resolution color touch screen LCD. With touchscreen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods. Its built-in communication ports include RS-232/RS-485, and USB interface, enable integration into the system allowing users to control, monitor I/O at the remote sides and update firmware directly from the central computer. Besides, the built-in non-volatile storage makes VPD series more reliable for rugged environments.
HMIWorks, the free development software for VPD series, provides an easy-to-use environment, and powerful and intuitive programming with vector graphic capabilities to let users create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program when using Ladder Designer. With all the features provided, VPD series touch HMI Devices must be the most cost effective HMI Device ever been in the market.
CPU Module
CPU
Low-power 32-bit RISC CPU
Memory
16 MB SDRAM/8 MB Flash
Real Time Clock (RTC)
Yes
Rotary Switch (0~9)
Yes
Communication Interface
Serial Port
x 1 (RS-232/RS-485 including Self-Tuner)
USB 1.1 Client
Firmware updates only
MMI (Main Machine Interface)
LCD
3.5” TFT (Resolution 240 x 320 x 16), Bright pixels <= 3
Backlight Life
20,000 hours
Brightness
270 cd/m2
Touch Panel
Yes
LED Indicator
Yes
Reset Button
Yes
Electrical
Power Input Range
+12 ~ 48 VDC
Power Consumption
2 W (83 mA @ 24 VDC)
Mechanical
Dimensions (W x L x H)
103 mm x103 mm x 53 mm
Ingress Protection
Front Panel: IP65
Installation
DIN-Rail Mounting and Panel Mounting
Environmental
Operating Temperature
-20 ~ +50 °C
Storage Temperature
-30 ~ +80 °C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing
