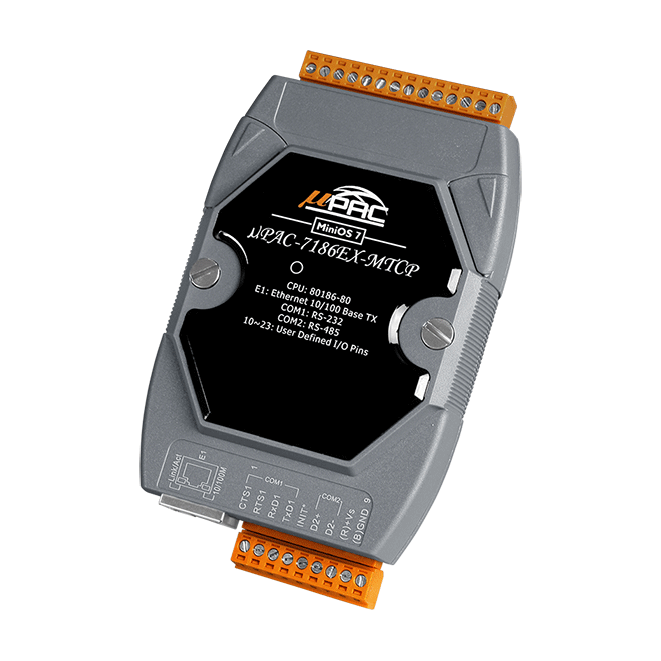

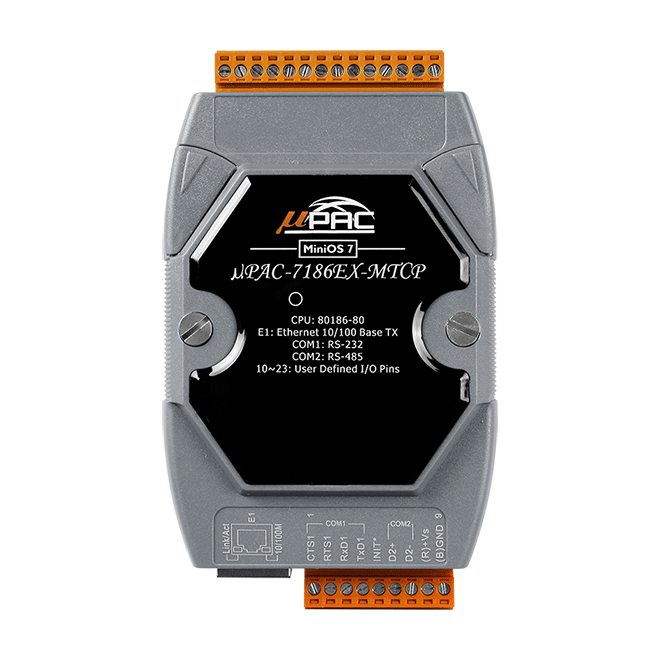

uPAC-7186EX-MTCP

The uPAC-7186EX-MTCP is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/485 devices to an Ethernet network. The μPAC-7186EX-MTCP also works as a Modbus TCP to RTU gateway that supports most SCADA/HMI communications based on the Modbus TCP protocol.

ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-7186EX-MTCP also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186EX-MTCP, you can choose one of them to expand hardware features.

• ISM 2.4 GHz Operating Frequency
• Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
• Wireless Transmission Range up to 700 m (Default)
• Adjustable RF Transmission Output Power
• 14 Channels Pair-connection of the Digital Input
• DO Safe Value setting for Wireless Disconnection Monitoring
• Configurable I/O Pairing Number
• Surge and ESD Protection
• Supports AES-128 Encryption for the Wireless Communication
• DIN-Rail Mountable
• Incorporate Serial Devices in an Ethernet network
• Supports Modbus TCP to RTU Gateway
• Built-in High Performance MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Communication Interfaces
  • 10/100 Base-TX Ethernet
  • RS-232/485
• 64-bit Hardware Serial Number
• I/O Expansion Bus Interface
• Programmable LED Indicator
• Build-in Watchdog Timer
