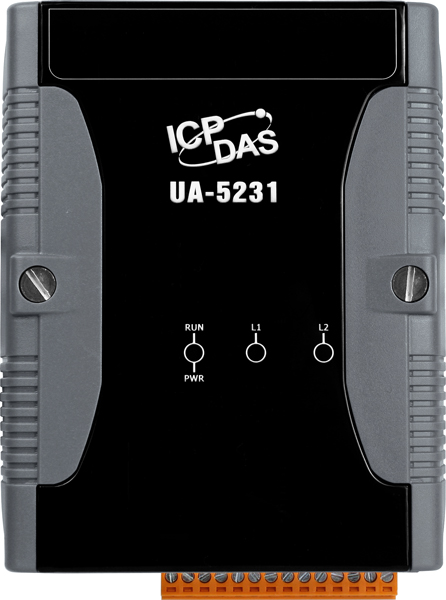

The UA-5231 is a data acquisition controller and communication server for Industrial Internet of Things (IIoT) applications. The UA-5231's built-in OPC UA Server and MQTT Client Service support a variety of common industrial communication protocols. Its RISC-based CPU architecture has the advantages of small size low power consumption that lets this series can be placed in a small space to fit variety of rooms, equipment and case environment. In the hardware, it provides a variety of communication interfaces, such as Gigabit Ethernet, USB, RS-232 and RS-485 ports to connect diverse devices. It runs on a Linux operating system (Kernel 3.2.14).

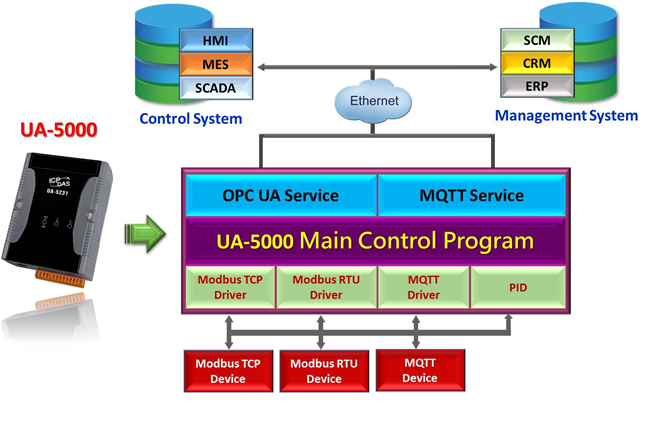

Applying OPC UA can integrate the I/O products of ICP DAS with the third-party devices, import the data information to the SCADA, database or decision-making systems for the back-end management, and satisfy the reliability, interoperability and security needs of the industrial automation system. Using MQTT communication can bridge the system with the Internet of Things (IoT) to meet the current trend of the smart internet.
| System Softwore | |
| OS | Linux Kernel 3.2.14 |
| Embedded Service | SFTP server, Web Server, SSH |
| CPU Module | |
| CPU | AM3352, 720 MHz |
| DDR3 SDRAM | 512 MB |
| Flash | 256 MB |
| FRAM | 64 KB |
| Expansion Flash Memory | microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card) |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial | Yes, for Software Copy Protection |
| Dual Watchdog Timers | Yes |
| LED Indicators | 4 LEDs (Power, Running and 2 user defined LEDs) |
| Rotary Switch | Yes (0 ~ 9) |
| VGA & Communnication Ports | |
| VGA & Communication | Yes, resolution: 640 × 480, 800 × 600, 1024 × 768, 1280 x 720 |
| Ethernet | RJ-45 x 1 |
| 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) | |
| USB 2.0 (host) | 1 |
| Console Port | RS-232 (RxD, TxD and GND); Non-isolated |
| ttyO2 | RS-485 (Data+, Data-); Non-isolated |
| ttyO4 | RS-232 (RxD, TxD and GND); Non-isolated |
| ttyO5 | RS-485 (Data+, Data-); 2500 VDC isolated |
| Mechanical | |
| Dimension (W x L x H) | 91 mm x 132 mm x 52 mm |
| Installation | DIN-Rail |
| Environmental | |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature | -30°C ~ +80°C (-22°F ~ +176°F) |
| Ambient Relative | 10 ~ 90% RH (non-condensing) |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 4.8 W |
| OPC UA | |
| OPC UA Server |
|
| Mdobus Master | |
| Modbus TCP | To read or control the devices that support standard Modbus TCP Slave protocol. Recommend to keep the maximum number of devices within 100 connections. |
| Modbus RTU | A max. of 3 ports: ttyO2, ttyO4, ttyO5 to connect other Modbus RTU Slave devices (e.g., M-7000). Recommend no more than 32 devices per port for better communication quality. |
| MQTT | |
| MQTT Client | Connect the MQTT Broker to read/control the devices supporting the MQTT protocol. |
| MQTT Service | Connect the MQTT Broker to externally read/control the devices supporting other protocols that linking with the UA-5000 series. |
| MQTT Broker | Compliance with MQTT v3.1.1 protocol. Support MQTT message distribution management. Recommend to keep the connection number of Client within 400. |
| Virtual Device | |
| PID Function | Combine the remote I/O devices for the PID logic control system. |
