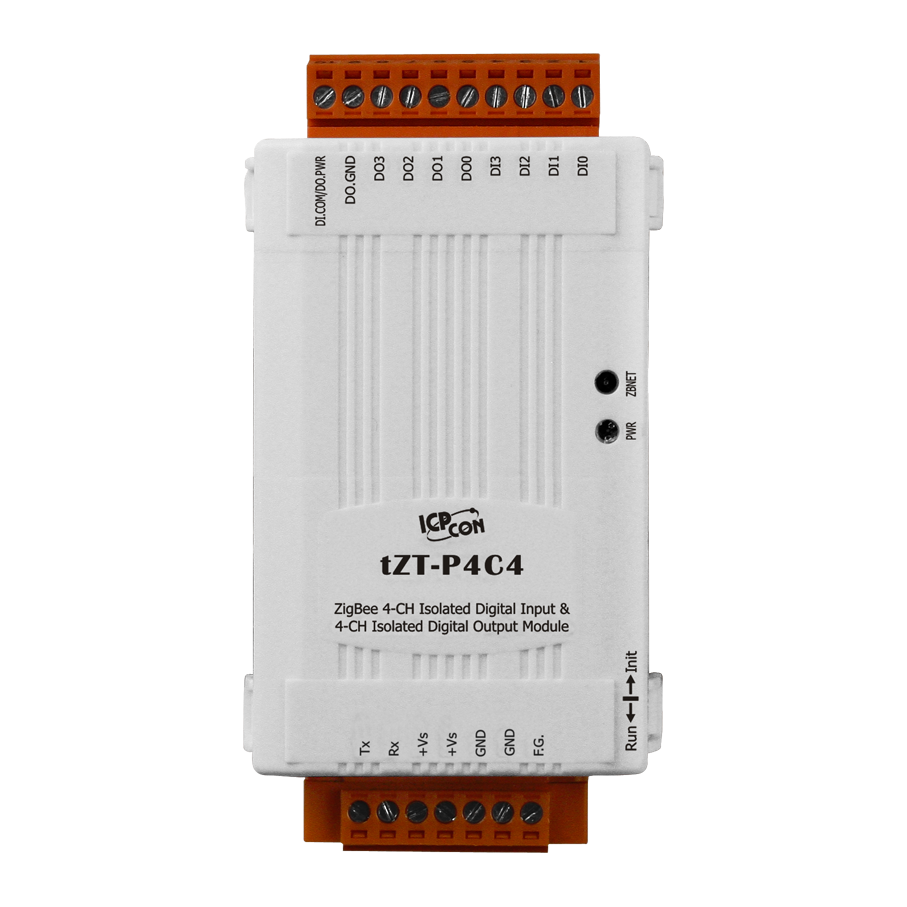

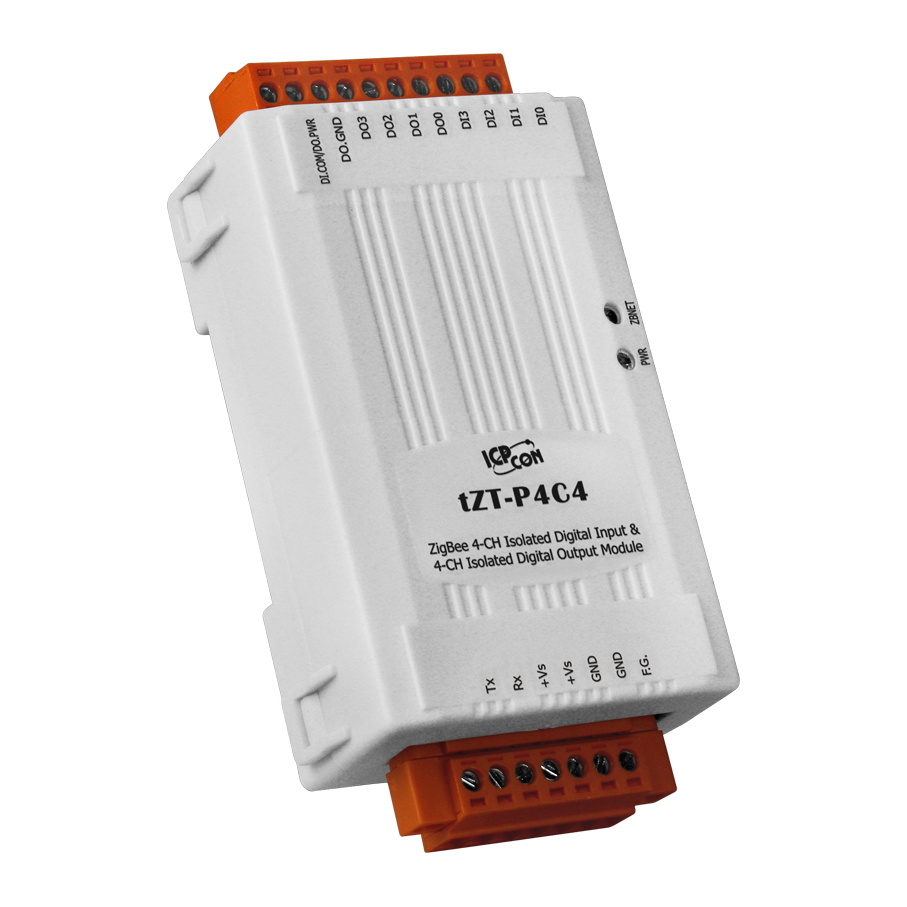

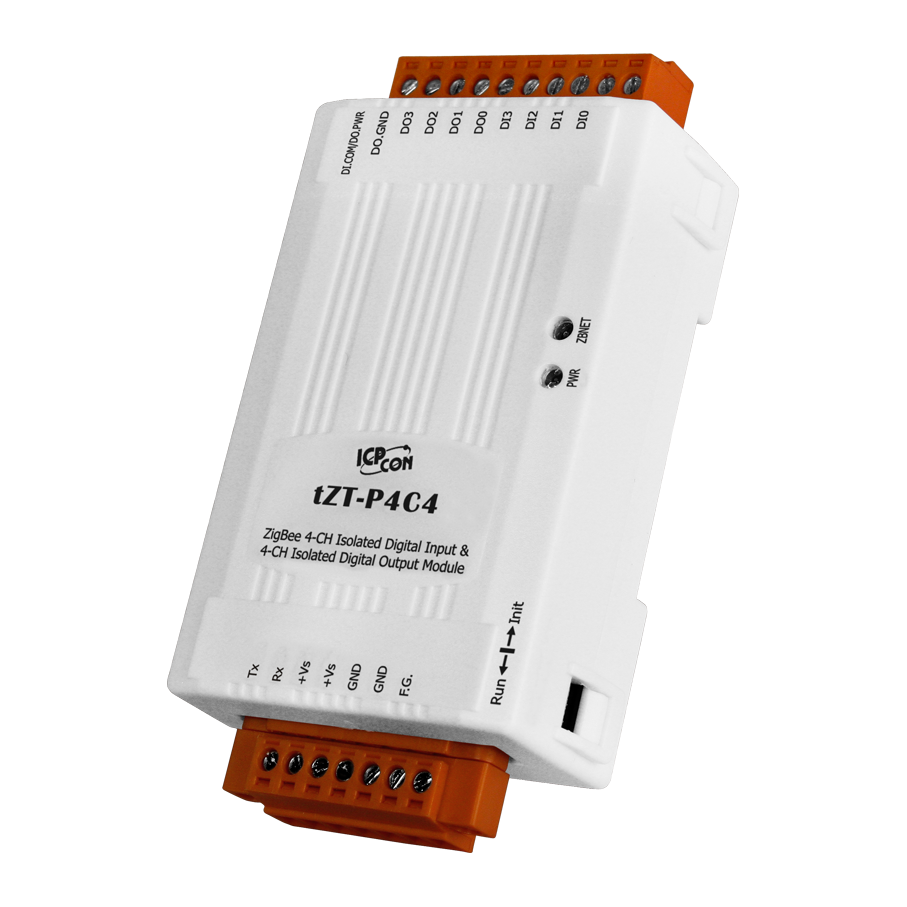

The tZT-P4C4 provides 4 channels for digital input and 4 channels for digital output, each of which features photocouple isolation. The tZT-P4C4 supports sink-type output with short circuit protection, while input is source-type. All input channels can be used a 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The tZT series products of ICP DAS USA have the advantage of low cost and low power consumption of ZigBee. Provide wireless communication capability up to 300 meters (LOS) standard transmission distance. Coupled with the dynamic mesh network, users can easily catch DIO data in difficult-to-wire environments.
Communication Interface
Wireless Standards
ZigBee 2007 Pro
Transmission Power
11dBm (Max. 19dBm)
2.4 GHz Antenna
2.4 GHz - PCB Antenna (3dBi, 50Ω)
Transmission Range (LoS)
300 m
Protocols
Supports DCON and ModBus
Watchdog
Module(1.6seconds),Communication(Programmable)
LED Indicators
ZigBee Communication
1 LED, Green
Power
1 LED, Red
EMS Protection
ESD (IEC 61000-4-2)
±4 kV Contact for each Terminal
EFT (IEC 61000-4-4)
±1 kV for Power
Power
Input Voltage Range
+10 VDC ~ +30 VDC
Power Consumption
1 W Max.
Mechanical
Dimensions (L x W x H)
52 mm x 98 mm x 27 mm
Installation
DIN-Rail Mounting
Environment
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Relative Humidity
10 ~ 95% RH (Non-condensing)
Digital Input/Counter
Input Channels
4
Type
Wet Contact (Source)
On Voltage Level
+6 VDC ~ +50 VDC
Off Voltage Level
Max. +5 VDC
Counter Channels
4
Max. Count 65535 (16-bit)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance
10 KΩ, 0.66W
Overvoltage Protection
± 70 VDC
Digital Output
Output channels
4
Type
Isolated Open Collector (Sink)
Load Voltage
+3.5 ~ +50 VDC
Max. Load Current
700mA/channel
Overvoltage Protection
Yes
Overload Protection
Yes
Power On Value
Yes, Programmable
Safe Value
Yes, Programmable
