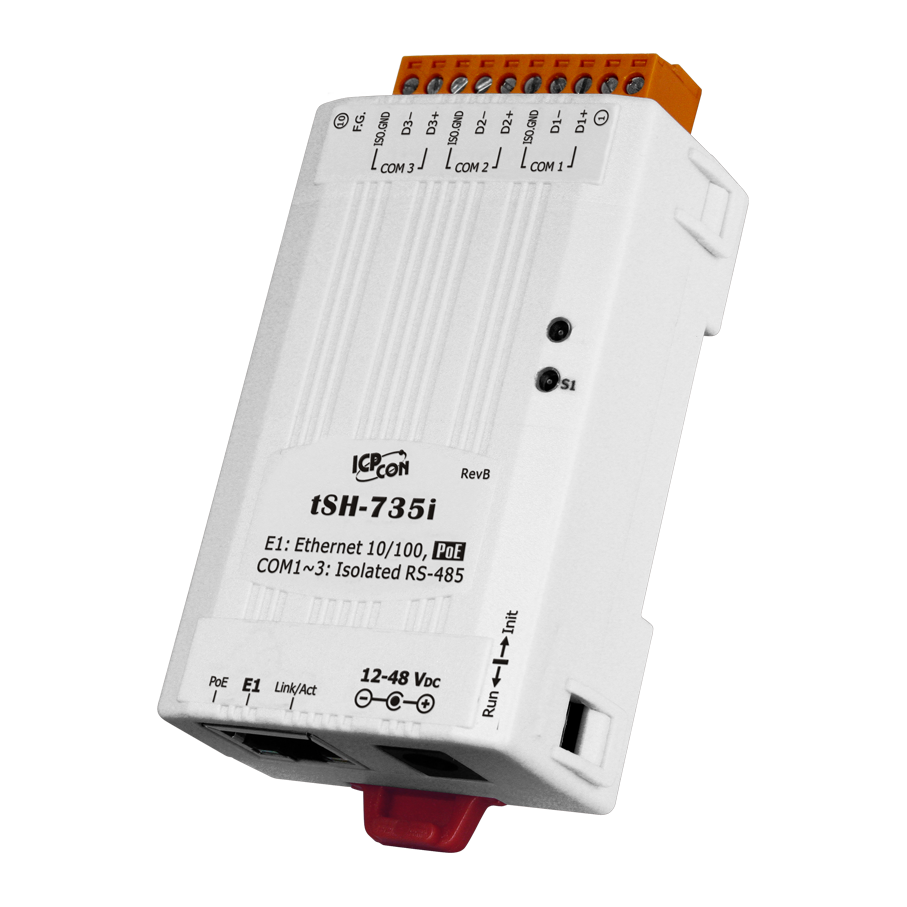

TSH-735i

$329.00

Tiny Serial Port Sharer and Baud Rate/ Modbus RTU/ASCII converter with PoE and 3 Isolated RS-485 Ports (RoHS)

Availability: IN STOCK | FASTEST DELIVERY : Monday, Oct 12 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	tSH-700 Serial Port Sharing Devices
Review:	Write your review
Resources:	3D STEP Model Data Sheet eSearch Utility Firmware Quickstart Software User's Manual VxComm Software 2D DWG Drawing

Introduction

The tSH-735i module is a serial port sharer with 3 RS-485 ports that provides a number of functions, including "Baud Rate Conversion", "Modbus RTU/ASCII Conversion" and "Two Masters Share One Slave". It has a built-in web server that provides a configurable interface. No console commands are required.

This device has Baud Rate and Modbus RTU/ASCII Conversion features. The Baud Rate Conversion makes it possible communication between master and slave devices. It allows for differences in baud rates and data formats to be sent. Modbus RTU/ASCII Conversion allows for a single Modbus RTU master device to communicate with Modbus RTU/ASCII slave devices through different protocols, baud rates, and formats.

Features

Raw data mode for most query-response protocols
Built-in Web Server for easy configuration (HTTP)
Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
Allows automatic RS-485 direction control
Tiny form-factor and low power consumption
Baud Rate Conversion
Modbus RTU/ASCII Conversion
Allows Two Master Devices to Access a Slave Device

Modbus Protocol and Baud Rate Conversion Function

Baud Rate Conversion in Raw Data Mode

Applications

Office Lighting Control Application
Production Line Application

FCC RoHS WEEE

Specifications

CPU Module
CPU	32-bit ARM

Ethernet
Ports	10/100 Base-TX, 8-pin RJ-45 x 1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1)

COM Ports
Ports	3 x RS-485 (3000VDC Signal Isolation)
Baud Rate	115200 bps Max.
Bias Resistor	Yes, 1 K
Parity	None, Odd, Even, Mark, Space
Data Bit	5, 6, 7, 8
Stop Bit	1, 2
Node Address	RS-485 254 Nodes(max.)

Power
Consumption	0.07 A @ 24 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	52 mm x 27 mm x 95 mm (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, non-condensing
