TPD-433-EU-H (European Version)

$0.00

Touchpad 4.3" Touch Screen PLC / Touch Screen Controller with Ethernet, RS-485 and USB ports, Real Time Clock and fits in regular electrical wall mount outlets. Supports Modbus RTU and Modbus TCP protocols. Comes with Free HMIWorks C Language and Ladder Logic Programming Development Environment. Supports operating temperatures between -20 ~ +50°C (-4F ~ 122F). TPD-433F has a flange mount and T...

Product Unavailable

Share On:
Categories:	TouchPad Touch Screen Controllers \| TouchPad Controller
Review:	Write your review
Resources:	User's Manual Data Sheet Quick Start Getting Started HMI Works TouchPad Manuals & Demo Programs CE Certification FCC Certification

Applications

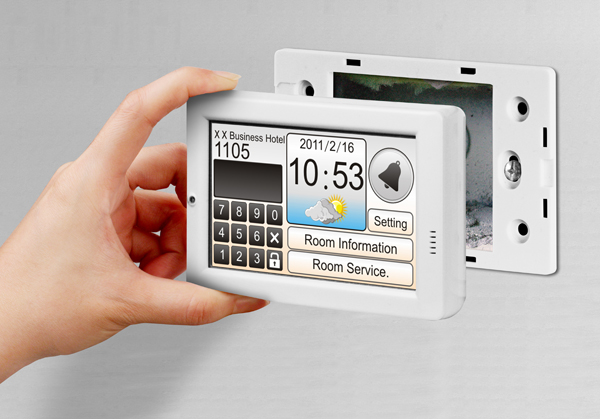

The TPD-433 TouchPAD is a tiny touch HMI PLC designed for building and home automation. The TPD-433 PLC is equipped with a high resolution TFT color touch screen and fits in with regular electrical wall-mount outlets. It seamlessly integrates with rich I/O modules and presents a beautiful, flexible and user-defined picture interface. In short, it is the best choice to upgrade mechanical switches to intelligent control pads.

For PLC users HMIWorks provides Ladder Designer, and for IT users, a C language environment is provided. It takes less than 30 minutes to learn how to create a GUI application program for the TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI Devices must be the most cost effective HMI Device in the history of the market.

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
Ethernet
RTC (Real Time Clock)
Speaker
WYSIWYG (What You See Is What You Get) GUI design
Free HMIWorks development tool
Supports the popular C programming language
Supports Ladder Designer
ESD Protection: 4 kV
Operating temperature: -20 ~ 70°C

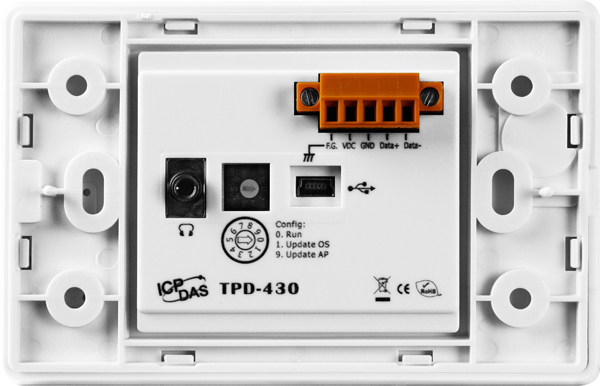

TPD-433F rear view

Specifications

CPU Module
CPU	32-bit RISC CPU
Memory	16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC)	Yes
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
Serial Port	RS-485 (including Self-Tuner)
Ethernet	Yes (RJ-45 x 1, 10/100 Base-TX)
USB 1.1 Client	Firmware updates only
MMI (Main Machine Interface)
LCD	4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	400 cd/m2
Touch Panel	Yes
LED Indicator	Yes
Reset Button	Yes
Electrical
Power Input Range	+12 ~ 48 VDC
Powered from PoE	IEEE 802.3af, Class1 (48 V)
Power Consumption	2.5 W
Mechanical
Dimensions (W x L x H)	126 mm x 82 mm x 24 mm
Installation	Wall Mount (Suitable for the outlet box in United States)
Environmental
Operating Temperature	-20 ~ +50 °C
Storage Temperature	-30 ~ +80 °C
Ambient Relative Humidity	10 ~ 90% RH, non-condensing
