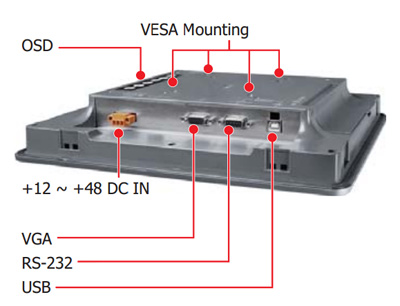

TP-5120 is a 12.1" 800 x 600 resistive touch panel monitor with an RS-232 or USB interface. Drivers are provided for Windows 2000/XP/Vista/7/WES/WinCE 5.0/WinCE 6.0 and Linux operating systems. It can be used as a touch screen interface with our WinPAC Programmable Automation Controllers. The front panel of TP-5120 is IP65 compliant so it can be used in applications where water can be sprayed at the touch screen when mounted properly. It supports VESA panel mounting installation.
| Display | |
| Size | 12.1" |
| Resolution | 800 x 600 |
| Max.Color | 16.7M |
| Brightness (cd/m2) | 400 |
| Touch screen | 5-wire, analog resistive Light; Transmission: 80% |
| Contrast Ratio | 500 : 1 |
| Viewing Angle (H/V) | 140/130 |
| Backlight Life (hrs) | 50,000 |
| Touchscreen function | Combo RS-232 & USB interface |
| Input Signal | VGA (Analog RGB) |
| MMI (Man Machine Interface) | |
| OSD Control | Functions: Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| LED Indicators | Power, Display signal is detected |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Power Consumption | 13 W |
| Mechanical | |
| Dimensions (W x L x H) | 323 mm x 254 mm x 65 mm |
| Casing | Plastic |
| Installation | Panel Mounting, VESA (75mm x 75mm, 100 mm x 100 mm) Mounting |
| Ingress Protection | Front panel: IP65 |
| Environment | |
| Operating Temperature | -20°C ~ +70 °C |
| Storage Temperature | -30°C ~ +80°C |
| Ambient Relative Humidity | 10 ~ 90% RH (non-condensing) |
