Intelligent 3G SMS Alarm Controller, communicable over RS-232, supports operating temperatures from -25°C ~ +55°C

Product Unavailable

Share On:
Categories:	Industrial SMS Controllers and GPRS Data Servers \| 2G/3G/4G Wireless Solutions
Review:	Write your review
Resources:	User's Manual Data Sheet Quick Start PIN Assignment Internal I/O Structure Software

SMS-530 is an intelligent 3G SMS controller for industry applications with the simple commands and SMS tunnel function, and power can be input via external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. Applying SMS-530, the SMS report can be sent by a defined time or a DI/counter event trigger. This can be a remote control and alarm system allowing you to use your mobile phone to monitor and control your business from any location. Its alarm facilities provide a flexible way to distribute critical alarm information to any number of mobile phone users.

SMS-530 can monitor a total of 10 digital inputs (6 counters). The user can also interrogate the status of I/O through SMS messages. The SMS-530 also has 2 Digital outputs which can be activated via DI trigger or SMS to control lamps, pumps, heaters etc.

Supports GSM 850/900/1800/1900 MHz Quad-band frequency
Supports WCDMA 850/900/1900/2100 MHz Quad-band frequency
Identify ASCII or Unicode SMS Automatically
Supports max. 140 ASCII Characters
Supports max. 70 Unicode Characters
Built-in ASCII Commands and SMS tunnel Communication Modes
Max. 10 Default Phone Numbers
Built-in Watch-dog Function
Industrial Design with Surge Protection
Supports SMS setting and control
10 DI (6 Counter), 2 DO, 2 RS-232 port
Digital input support NC(normal close)/NO(normal open)/Counter modes
Send alarm SMS by DI trigger or exceed Counter preset limits
Supports simple command to send SMS via RS-232
Supports DC +10 VDC ~ +30 VDC Power Input
Supports 3.7 V Li-ion Battery Backup
DIN Rail design

Applications

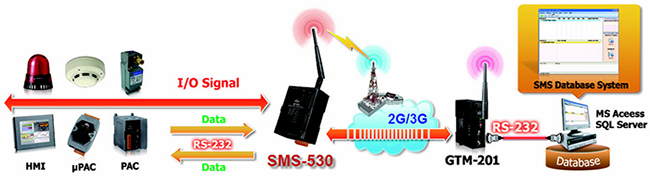

Application 1: Signal Alarm and SMS communication

SMS-530 application

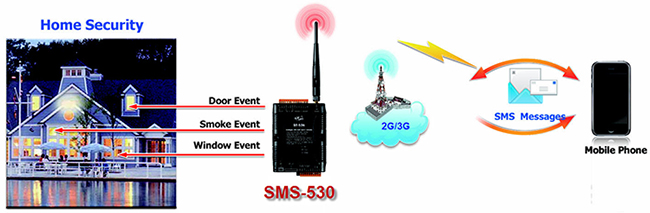

Application 2: Home security

SMS-530 application 2

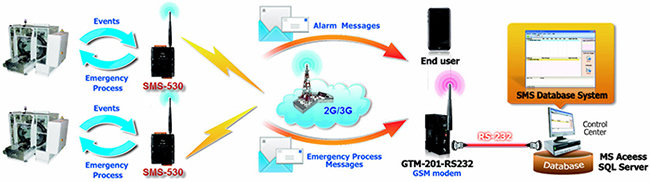

Application 3: Remote maintenance

SMS-530 application 3

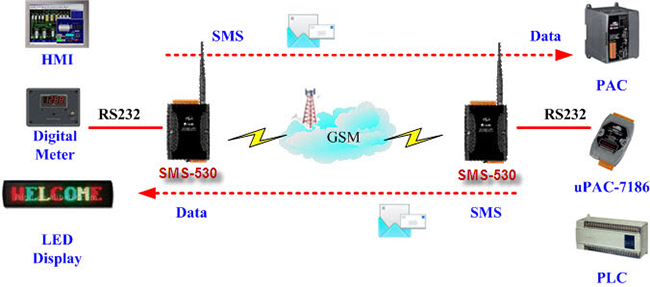

Application 4: SMS Tunnel Communication

SMS-530 application 4

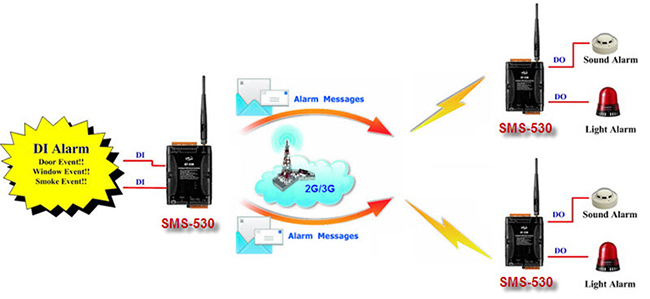

Application 5: DI Alarm and SMS communication

SMS-530 application 5

Specifications

System
CPU	32 bit CPU
SRAM	32 Kbytes
Flash Memory	512 Kbytes
RTC	Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079
WDT(watchdog)	Yes
Serial ports
COM2	RS-232 : TxD,RxD,GND for configuration
COM3	RS-232 : TxD,RxD,GND for communication with other devices
DIO
Input	10 Channel (6 Counter 5~40Hz + 4 Channel Digital input powered by external power or Li-battery) On Voltage : +3.5~24VDC Off Voltage : +1V Max.
Output	D/O : 2 Channel Open collector output (100mA@24VDC) Output type : Open-Collector (NPN) Load Voltage : +24V Max. Load Current : 100mA Max.
3G system
Frequency Band	WCDMA Quad-Band 850/900/1900/2100 MHz
Power Class	Class 3 (250mW @ WCDMA/HSPA)
2G System
Frequency Band	GSM Quad-Band 850/900/1800/1900 MHz
Coding Schemes	CS 1, CS2, CS3, CS4
SMS Format	sending: UCS2 receiving: UCS2/7bits
Power
Protection	Power reverse polarity protection
Frame Ground Protection	ESD, Surge, EFT, Hi-Pot
Required Supply Voltage	+10 VDC ~ +30 VDC with 600 mAh Li-ion battery backup (Option :1200 mAh)
Power Consumption	Idle: 25 mA @ 24 VDC; Data Link: 44 mA @ 24 VDC; Peak: 45 mA @ 24 VDC; Sleep: 15mA @ 3.7VDC
Mechanical
Casing	Plastic
Dimensions (W x L x H)	91 mm x 132 mm x 52 mm
Installation	DIN-Rail
Environmental
Operating Temperature	-25 ℃ ~ +55 °C
Storage Temperature	-40 ℃ ~ +80 °C
Ambient Relative Humidity	5 ~ 95% RH, non-condensing
