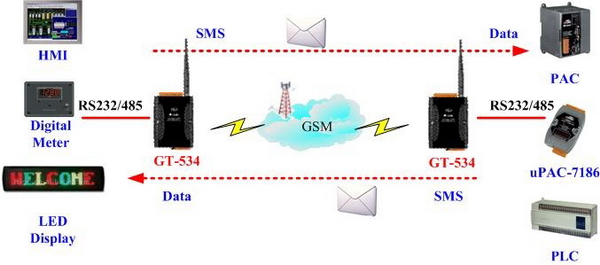

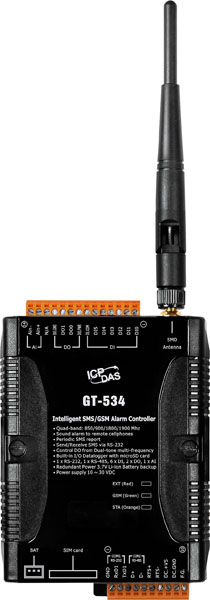

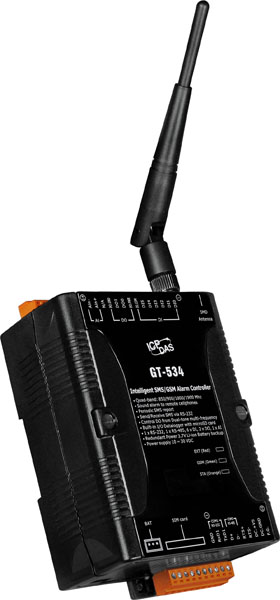

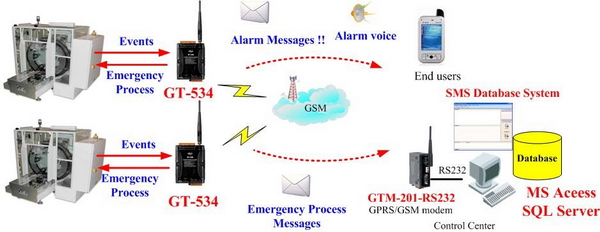

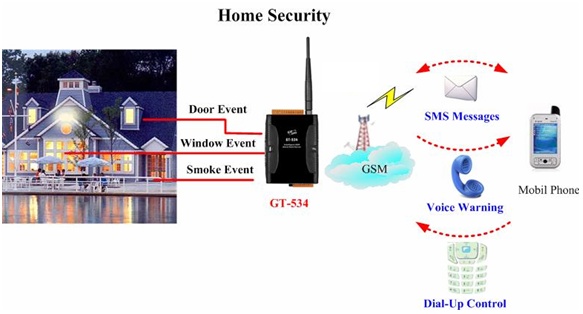

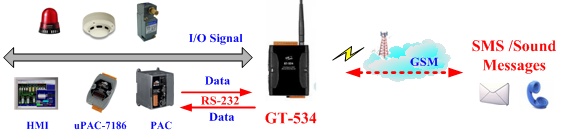

The GT-534 is an intelligent SMS/GSM controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. The GT-534 also provides the sound alarm application with the pre-defined voice files. In addition, the DTMF function of the GT-534 is for the applications with the keypad of phones to control the local I/O. And, With the SMS DBS software of ICP DAS, users can manage the GT-534 in PC centrally.
GSM/GPRS System |
|
GPRS/GSM Quad-band |
850/900/1800/1900 MHz |
GPRS Multi-slot |
Class 10/8 |
GPRS Mobile Station |
Class B |
GPRS Class 10 |
Max. download speed 85.6 kbps |
CSD |
Up to 14.4 kbps |
Compliant to GSM Phase 2/2+ |
Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz) |
Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
SMS |
Text and PDU Mode |
Serial Ports |
|
COM1 |
RS-232: TxD, RxD, GND |
COM2 |
RS-232, RS-485 (Transparency) |
Digital Input |
|
Input Channel |
6 |
Input Type |
Isolated |
Wet Contact |
On Voltage Level: +3.5 VDC ~ +30 VDC Off Voltage Level: +1 VDC max. |
Digital Output |
|
Output Channel |
2 |
Output Type |
Isolated |
Max. Load Current |
100 mA/channel |
Analog Input (Optional) |
|
Input Channel |
1 |
Resolution |
12-bit |
Input Range/Type |
0 ~ 20 mA |
Sample Rate |
1 Hz max. |
Power |
|
Protection |
Reverse polarity protection |
Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
Required Supply Voltage |
+10 VDC ~ +30 VDC with 600 mAh Li-ion battery backup (Option : 1200 mAh) |
Mechanical |
|
Casing |
Plastic |
Flammability |
UL 94V-0 materials |
Dimensions (W x L x D) |
91 mm x 132 mm x 52 mm |
Installation |
DIN-Rail |
Environmental |
|
Operating Temperature |
-25 °C ~ +55 °C |
Storage Temperature |
-40 °C ~ +80 °C |
Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
