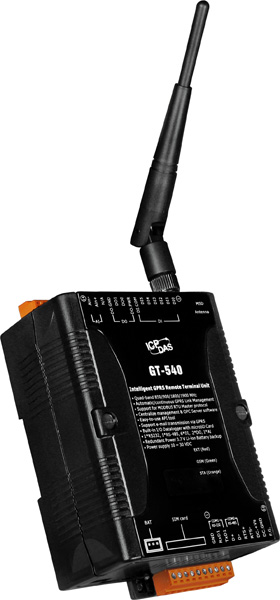

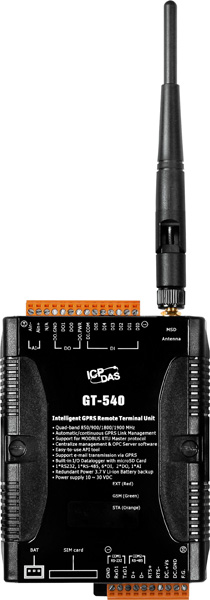

GT-540

$659.00

Cellular Wireless Intelligent GPRS Data Server with 6 Digital Inputs, 2 Digital Outputs and 1 Analog Input. Supports 2G Quad-band 850/900/1800/1900 MHz Frequencies. Provides Wireless Access to Modbus RTU devices. Supports operating temperatures from -25&8451; ~ +55&8451;

Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	Inventory Sale \| Industrial SMS Controllers and GPRS Data Servers \| 2G/3G/4G Wireless Solutions
Review:	Write your review
Resources:	User's Manual Quick Start Data Sheet Download Software Utility PIN Assignment SMS Database System Data Plan Instructions AT&T Compatibility Certification

The GT-540 is an intelligent Active GPRS Remote Terminal Unit. With the high performance 32 bit CPU, the GT-540 is suited for the hard industrial environment. It features GPRS/GSM module, 6 digital inputs, 2 digital outputs, 1 analog input, 2 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O or Modbus device’s data by GPRS by the defined period or DI/AI triggers. The local I/O data can also be stored in the SD card to become a remote data logger. For another communication path, the GT-540 offers the e-mail mode to transfer the data by e-mail via GPRS for users to choose. The simple I/O linkage function of the GT-540 can reach the real time control in local field. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, the GT-540 is an ideal solution for environmental monitoring and remote device management for M2M applications. Meanwhile, it is supplied with easy-to-use API and OPC server Software that streamline application development process, freeing system integrators from dealing with complex communication protocols of GPRS and the Internet.

Applications

Wireless Data Acquisition & Control System

Wireless Data Acquisition

Features

Automatic/continuous GPRS Link Management
Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
Support M2M OPC server for SCADA system
Easy-to-use API tool for users to develop their applications by various program development tools
Be the GPRS I/O devices
Support data transferring by E-mail
Local I/O linkage function to make the simple local control
Support 3.7V Li-ion Battery backup
Power supply 10 ~ 30 VDC

Utility

ICP DAS provides graphic tool for users to configure GT-540. The utility also can help users to test GT-540 in the Lab before they apply in the real site.

GT540 Utility

Software Solutions

The M2M RTU center software with friendly Graphic interface is to manage the GPRS RTU products easily. Users can monitor the I/O data and status of GPRS RTU devise by the interface on PC. By using the GPRS RTU API tool and M2M RTU center software, any remote monitoring system can be achieved easily and efficiently. For SCADA system, the M2M.OPC server is provided to connect to SCADA by OPC interface.

gt-540 Software Solutions

Item	Web site
M2M RTU Center	M2M RTU series management software
M2M RTU Win32 API	M2M RTU development tool
NAPOPC.M2M DA Server	OPC Server for M2M RTU devices
EZ Data Logger	Free EZ Data Logger Software
InduSoft SCADA	SCADA software

Easy to Establish GPRS Network Applications
It is a big headache for engineers to establish the GPRS applications because the dynamic IP management is required. Applying the GT-540 and M2M RTU center software, the dynamic IP addresses can be managed between them. The remote GPRS RTU product would connect to M2M RTU Center automatically. Therefore, all remote GPRS RTU devices can be managed by s single centralized M2M GPRS RTU Center software with a fixed IP address. Moreover, there are M2M API tool and OPC server for engineers to develop the GPRS applications by VB, VC or SCADA development tools conveniently without any IP address management effort.
Active data transmission
The GT-540 with active I/O transmission mechanism can raise the communication. Unlike the traditional poll communication, it would transfer the data by the defined time, DI trigger or AI hi/lo alarm. In addition to improve the way of communication, that can also reduce the AP effort.
Transfer data by e-mail
Expect for the transferring data by the general communication with the M2M RTU center, users can choose the e-mail mode to send these data by e-mail over GPRS in the fixed time.
Modbus RTU device connectivity
The GT-540 is built-in Modbus RTU protocol. That can make any Modbus RTU device connect to the GT-540. By the way of GT-540, Modbus RTU devices can be used in GPRS remote system. The max Modbus RTU device can be connected to the GT-540 is three.
Simple Local I/O link Control
There are I/O built-in GPRS RTU devices of ICP DAS. Therefore, these products can be the GPRS I/O devices. Expect for these local I/O data can be sent to the host PC, the I/O link function of them help users to do the simple control in local field. For example: the DI trigger or high/low AI alarm can driver the DO channel.
Built-in I/O Data Logging
The GT-540 provides an external SD interface. These local I/O and Modbus data are recorded in SD memory card for one day in a single file.

How to Use GT-540

Specifications

System
CPU	32 bit, 96 MHz
SRAM	64 Kbytes
Flash Memory	512 Kbytes
RTC	Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079
WDT(watchdog)	Yes
SD interface	2GB max.
Serial ports
COM1	RS-232 : TxD,RxD,GND for configuration
COM2	RS-485 : D2+, D2-
Digital Input
Input Channel	6
Input Type	Sink or Source, Isolated channel with common power or ground
Off Voltage Level	+1V max.
On Voltage Level	+3.5 ~ 24 VDC
Isolated Voltage	3750Vrms
Counters	6 (16 Bit, 5~40Hz), Min. Pulse Width : 25ms
Digital Output
Channels	2
Output Type	Open-Collector (NPN) (100mA, 30V)
Load Voltage	+30 V max
Load Current	100 mA max
Isolated Voltage	3750Vrms
Analog Input
Channels	1
Resolution	12 bit
Input Range/Type	0 ~ 20 mA
GSM/GPRS system
GPRS/GSM	Quad-band 850/900/1800/1900 MHz GPRS multi-slot : class 10/8 GPRS mobile station : class B GPRS class 10 : Max download speed 85.6 kbps CSD max speed 14.4 kbps Compliant to GSM phase 2/2+ &12288;-Class 4(2W @ 900 MHz) &12288;-Class 1(1W @ 1800/1900 MHz) Coding schemes : CS 1, CS 2,CS 3,CS 4 SMS: Text and PDU mode
Power
Protection	Reverse polarity protection
Frame Ground Protection	ESD, Surge, EFT, Hi-Pot
Required Supply Voltage	+10 VDC ~ +30 VDC with 600 mAh Li-ion battery backup
Mechanical
Casing	Plastic
Flammability	UL 94V-0 materials
Dimensions (W x L x H)	91 mm x 132 mm x 52 mm
Installation	DIN-Rail
Environmental
Operating Temperature	-25 &8451; ~ +55 &8451;
Storage Temperature	-40 &8451; ~ +80 &8451;
Ambient Relative Humidity	5 ~ 95% RH, non-condensing
