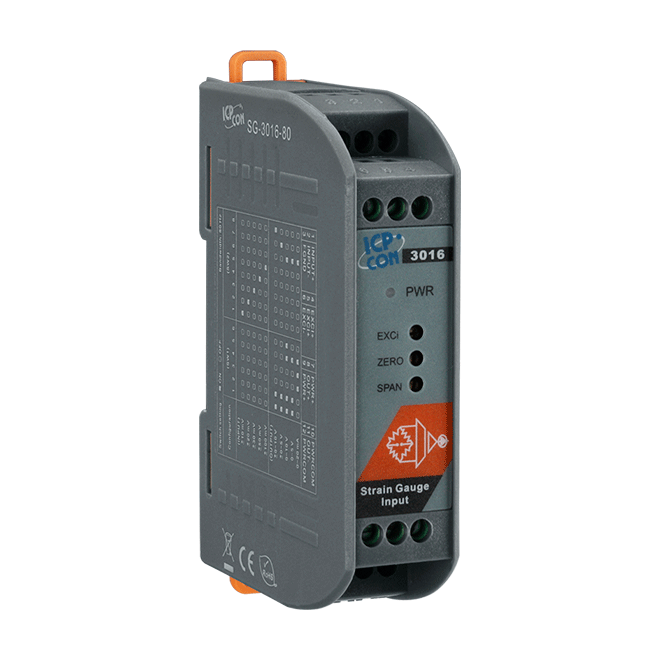

The SG-3016-80 is a voltage input to voltage or current output signal conditioning module. It has 1000 Vdc three-way isolation for input, output and power. It also can change the input/output range via internal configuration switches. The SG-3016-80 has an LED display to show whether the SG-3016-80 is functioning correctly and has three VRs (Zero, Span, Exci) to calibrate accuracy of the input/output range. The bandwidth of the SG-3016-80 is typically 80 Hz. It is easy to mount the SG-3016-80 on a standard DIN rail and operate in environments with wide temperature range.
| Isolation | |
|---|---|
| Three-way Isolation | 1000 VDC |
| Analog Input | |
|---|---|
| Channels | 1 |
| Type | ±10 mV, ±20 mV, ±30 mV, ±50 mV, ±100 mV |
| Accuracy | ±0.1% of full range |
| Bandwidth | <80 Hz |
| Analog Output | |
|---|---|
| Channels | 1 |
| Range | Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC, ±5 VDC, ±10 VDC Current: 0 ~ 20 mA |
| Current Load Resistance | 0 ~ 500 &8486; (Source) |
| Excitation Voltage Output | |
|---|---|
| Channels | 1 |
| Range | 0 ~ +10 VDC |
| Max. Load Current | +20 mA |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.44 W (Voltage Output), 1.74 W (Current Output) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | -30 °C ~ 75 °C |
| Humidity | 5 ~ 95%, non-condensing |
