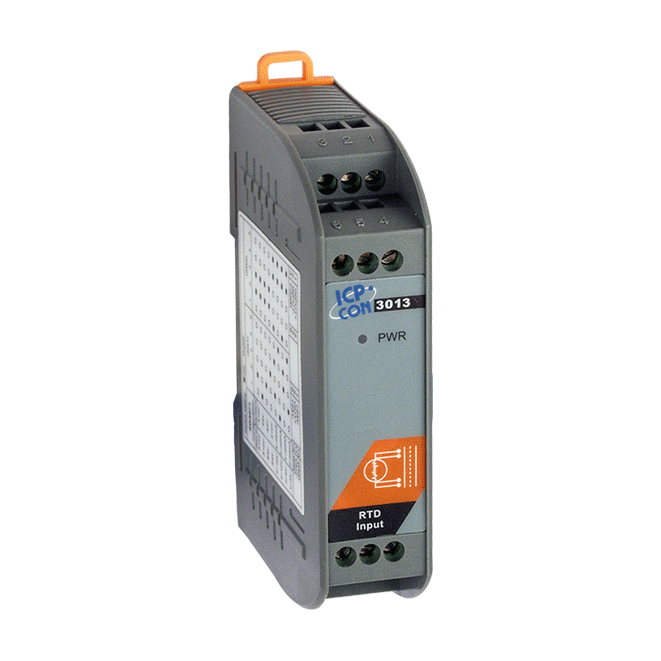

The SG-3013 is a RTD input signal conditioning module to transform RTD input to voltage or current output. SG-3013 uses a microprocessor-based transducer, which integrating two high resolution ADCs and an MCU, to acquire the RTD signal. The supported RTD types are Pt100 , Pt1000 , Ni 120 ,Cu100 ,and Cu1000.
Signal Input :
switch |
Temperature |
switch |
Temperature |
||||
RTD Type
Platinum 100, |
RTD Type
Platinum 100, |
||||||
1 |
0x00 |
00000 |
-200~200 |
17 |
0x10 |
00001 |
-50~150 |
2 |
0x01 |
10000 |
-200~600 |
18 |
0x11 |
10001 |
0~100 |
3 |
0x02 |
01000 |
-100~100 |
19 |
0x12 |
01001 |
0~200 |
4 |
0x03 |
11000 |
-100~0 |
20 |
0x13 |
11001 |
0~600 |
5 |
0x04 |
00100 |
-100~200 |
RTD Type Platinum 1000, |
|||
6 |
0x05 |
10100 |
-50~50 |
21 |
0x14 |
00101 |
-200 ~ 600 |
7 |
0x06 |
01100 |
-50~150 |
RTD Type Nickel 120 |
|||
8 |
0x07 |
11100 |
0~100 |
22 |
0x15 |
10101 |
-80 ~ 100 |
9 |
0x08 |
00010 |
0~200 |
23 |
0x16 |
01101 |
0 ~ 100 |
10 |
0x09 |
10010 |
0~600 |
24 |
0x17 |
11101 |
0~300 |
RTD Type Platinum 100, |
25 |
0x18 |
00011 |
-80~300 |
|||
11 |
0X0A |
01010 |
-200~200 |
RTD Type Cu 100 at 0°C, |
|||
12 |
0X0B |
11010 |
-200~600 |
26 |
0x19 |
10011 |
-20 ~ 150 |
13 |
0X0C |
00110 |
-100~100 |
RTD Type Cu 100 at 25°C, |
|||
14 |
0X0D |
10110 |
-100~0 |
27 |
0x1A |
01011 |
0 ~ 200 |
15 |
0X0E |
01110 |
-100~200 |
RTD Type Cu 1000 at 0°C, |
|||
16 |
0X0F |
11110 |
-50~50 |
28 |
0X1B |
11011 |
-20 ~ 150 |
| Isolation | |
|---|---|
| Three-way Isolation | 1000 VDC |
| Analog Input | |
|---|---|
| Channels | 1 |
| Type | Pt100 α=0.00385 / Pt100 α=0.003916 / Ni 120 / Pt1000 α=0.00385 |
| Accuracy | ±0.1% of full range |
| Response Time | 100 ms |
| Analog Output | |
|---|---|
| Channels | 1 |
| Range | Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Current Load Resistance | 0 ~ 500 Ω (Source) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | 30 °C ~ 75 °C |
| Humidity | 5 ~ 95%, non-condensing |
