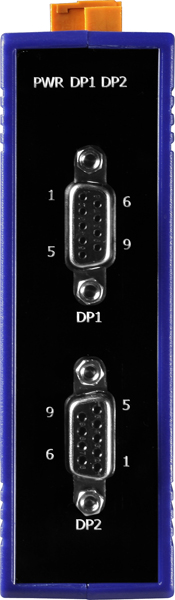

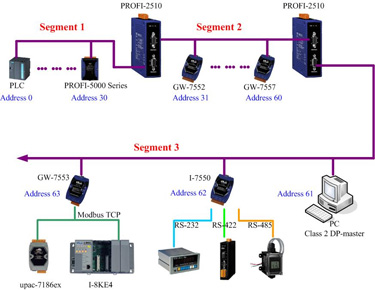

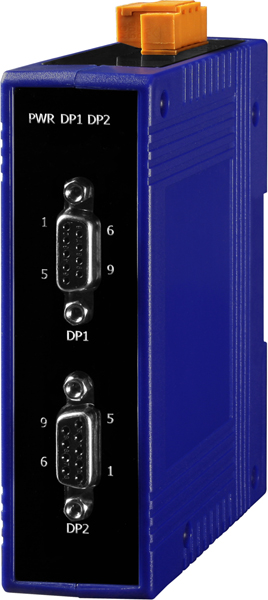

The PROFI-2510 is a PROFIBUS repeater used to establish a physical coupling of two or more segments of a PROFIBUS system. It supports transmission rate of 9.6Kbps to 12Mbps and detects the rate automatically. Users can extend the transmission of an existing network and increase the maximum number of bus nodes by using PROFI-2510. Anyway the PROFI-2510 can link easily and fast between two PROFIBUS segments.
| Hardware | |
| ESD Protection | 4 kV class A |
| PROFIBUS Interface | |
| Transceiver | ADI ADM2486 |
| Connector | 9-pin female D-Sub |
| Baud Rate (bps) | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Transmission Distance (m) | Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| LED | |
| Round LED | PWR LED, TxD LED, RxD LED |
| POWER | |

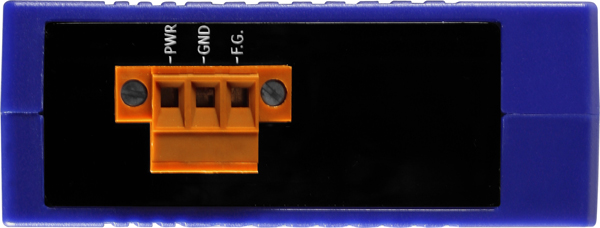

| Power supply | Unregulated +10 ~ +30 VDC |
| Protection | Reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption | 1 W |
| Mechanism | |
| Installation | DIN-Rail |
| Dimensions | 33.0 mm x 126.8 mm x 104.5 mm (W x L x H) |
| Environment | |
| Operating Temp. | -25 ~ 75℃ |
| Storage Temp. | -30 ~ 85℃ |
| Humidity | 5 ~ 95% RH, non-condensing |
