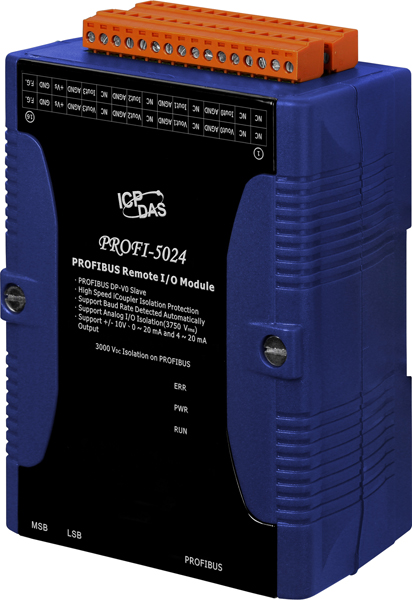

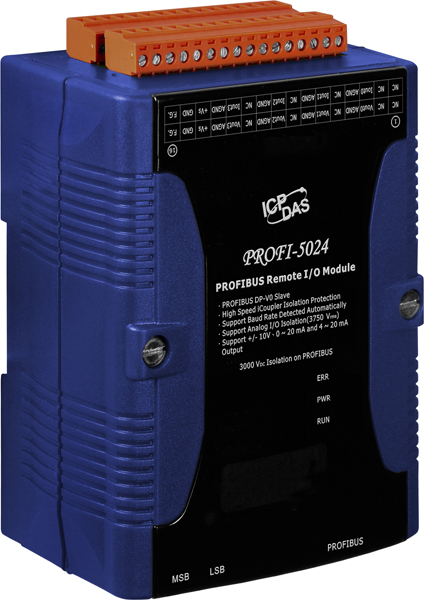

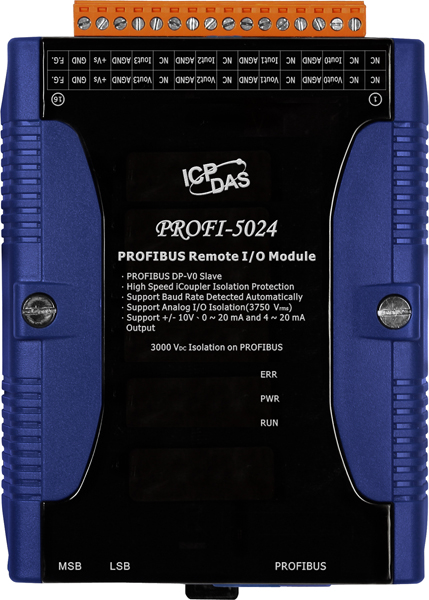

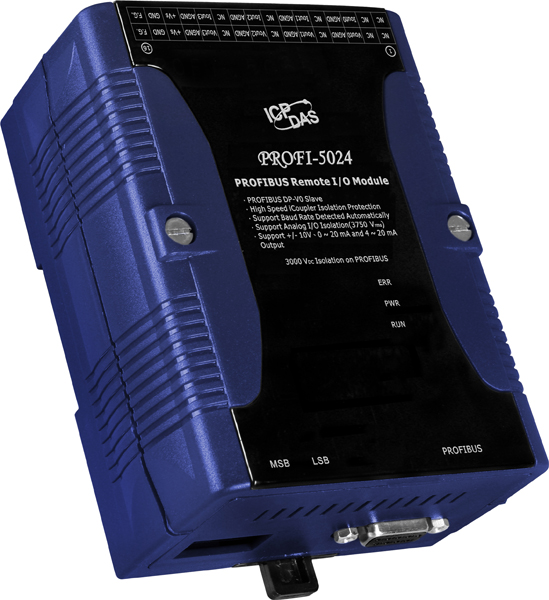

The PROFI-5024 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4-channel isolated analog voltage/current output with 3750Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
|
 |
| Features | |
Protocol & Hierarchy |
DP-V0 Slave |
Supports Transmission Rate (kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
Transmission Rate Setting |
detected automatically |
Address Setting |
Address 0~126 set by rotary switches or SSA Telegram |
Indicators |
PWR LED, RUN LED, ERR LED |
I/O modules Configuration |
Configured by GSD file |
Network Isolation Protection |
High Speed iCoupler |
DC Isolation Protection |
3000 VDC on PROFIBUS side |
4KV ESD Protection |
Contact for each terminal |
Hardware |
|
ESD Protection |
4 kV class A |
PROFIBUS Interface |
|
Controller |
Siemens SPC3 |
Transceiver |
ADI ADM2486 |
Connector |
9-pin female D-Sub |
Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
Protocol |
DP-V0 |
LED |
|
Round LED |
PWR LED, RUN LED, ERR LED |
Power |
|
Power supply |
Unregulated +10 ~ +40 VDC |
Protection |
Reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
3 W |
I/O |
|
Analog input |
8 channel differential current input Isolation Voltage:2500Vrms |
Mechanism |
|
Installation |
DIN-Rail |
Dimensions |
91 mm x 128 mm x 52 mm (W x L x H) |
Environment |
|
Operating Temp. |
-25 ~ 75℃ |
Storage Temp. |
-30 ~ 85℃ |
Humidity |
5 ~ 95% RH, non-condens |
