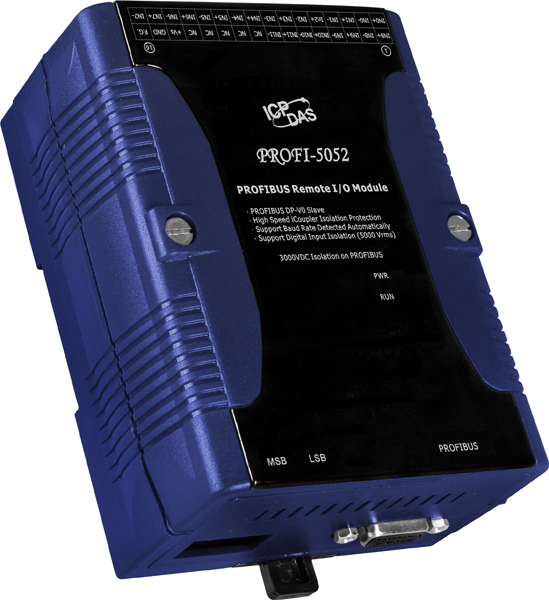

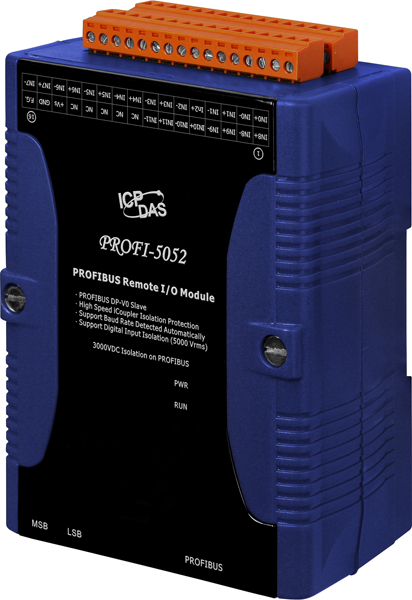

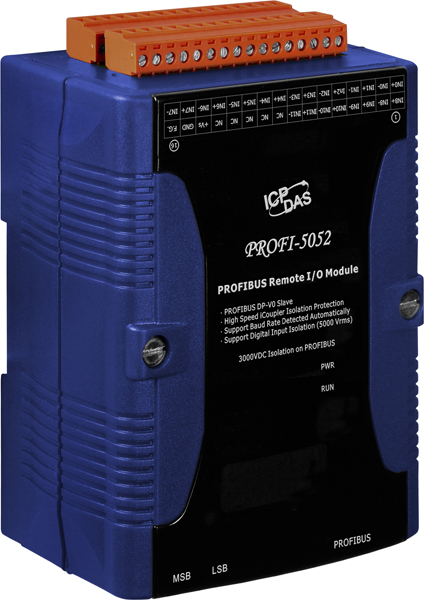

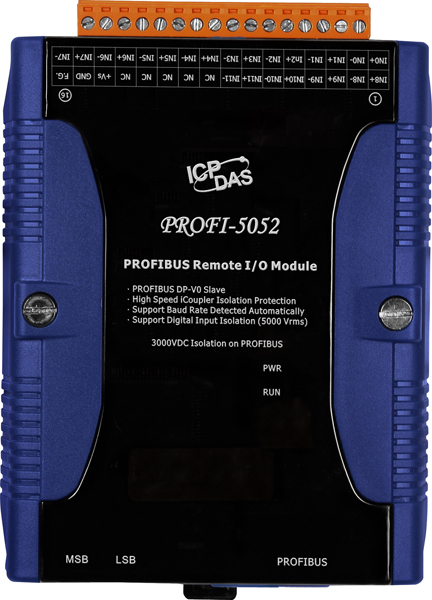

The PROFI-5052 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 12-channel isolated digital input with 5000Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
The PROFI-5052 is one of the PROFIBUS DP series products produced by ICP DAS. It provides the PROFIBUS DP communication protocol with any DP-Masters. The PROFI-5052 provides ±4KV ESD protection contacting for all terminals (include I/O Terminals and PROFIBUS connector). By applying the PROFI-5052, users can easily establish a PROFIBUS DP network with other DP-Masters. In advance, it can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc...
|
 |
Protocol & Hierarchy
|
DP-V0 Slave
|
Supports Transmission Rate (kbps)
|
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
|
Transmission Rate Setting |
detected automatically |

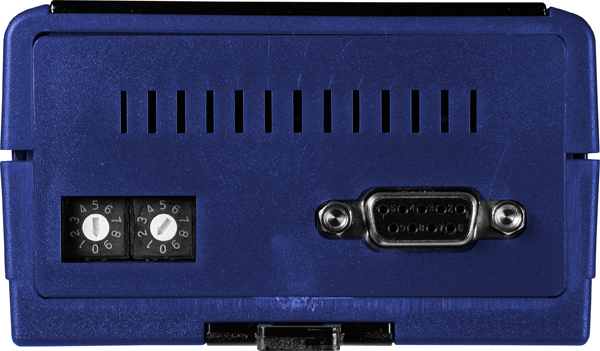

Address Setting
|
0~99 set by rotary switches
|
Indicators
|
PWR and RUN LEDs
|
I/O modules Configuration
|
Configured by GSD file
|
Network Isolation Protection
|
High Speed iCoupler
|
DC Isolation Protection
|
3000 VDC on PROFIBUS side
|
4KV ESD Protection
|
Contact for each terminal
|
Hardware |
|
ESD Protection |
4 kV class A |
PROFIBUS Interface |
|
Controller |
Profichip VPCLS2 |
Transceiver |
ADI ADM2486 |
Connector |
9-pin female D-Sub |
Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
Protocol |
DP-V0 |
LED |
|
Round LED |
PWR LED, RUN LED |
Power |
|
Power supply |
Unregulated +10 ~ +40 VDC |
Protection |
Reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
1 W |
I/O |
|

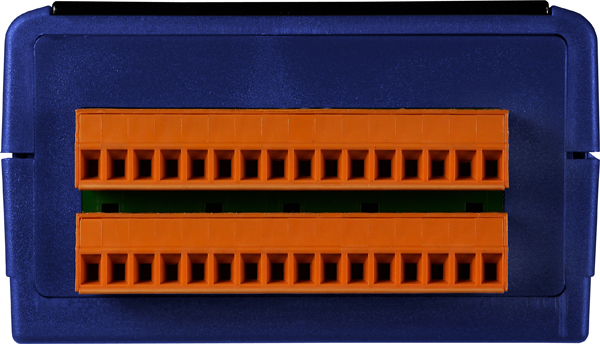

Digital Input |
12 Channels (Sink or Source), Isolated from each other. Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V Input Impedance: 3KΩ in series with opto-coupler Isolation Voltage: 5000Vrms |
Mechanism |
|

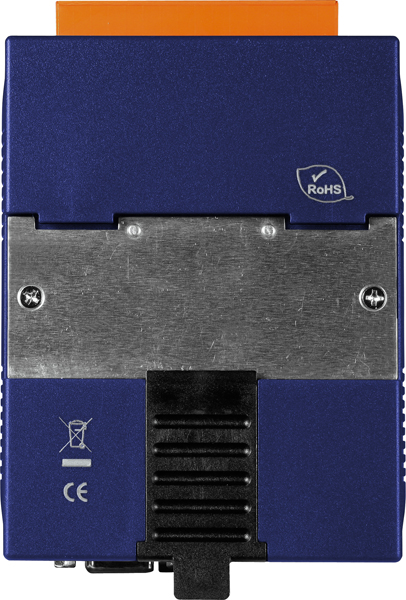

Installation |
DIN-Rail |
Dimensions |
91 mm x 128 mm x 52 mm (W x L x H) |
Environment |
|
Operating Temp. |
-25 ~ 75℃ |
Storage Temp. |
-30 ~ 85℃ |
Humidity |
5 ~ 95% RH, non-condensing |
