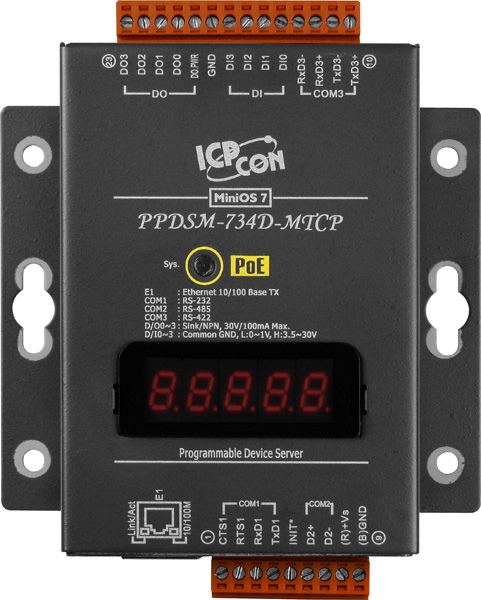

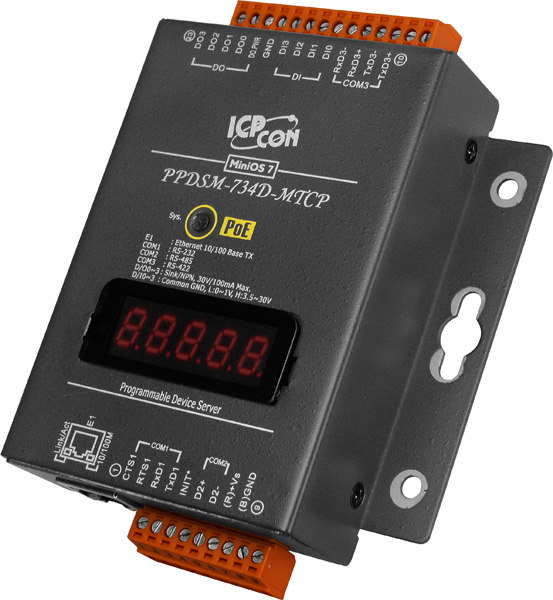

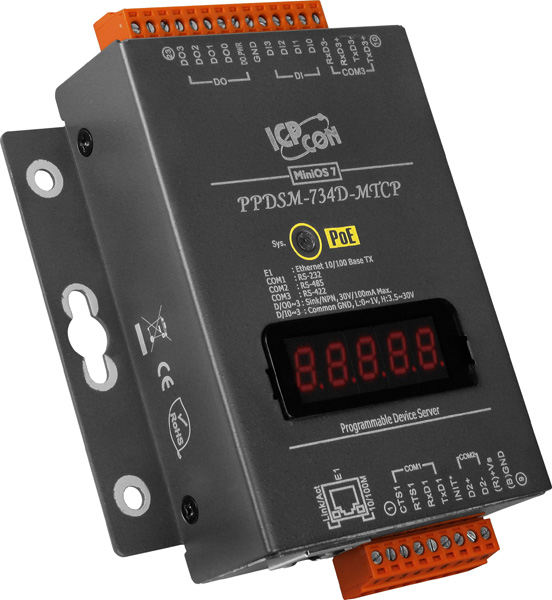

The PPDSM-734-MTCP model is a Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PPDSM-734-MTCP into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PPDSM-734-MTCP model is able to meet the demands of every network-enabled application.
ThePPDSM-734-MTCP includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PPDSM-734-MTCP up in just one second and gives you fastest responses.
The PPDSM-734-MTCP features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDSM-734-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. The PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS).

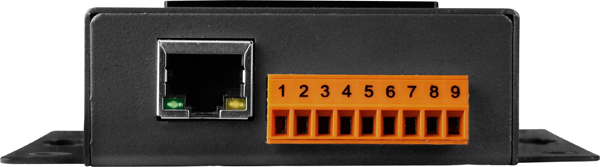

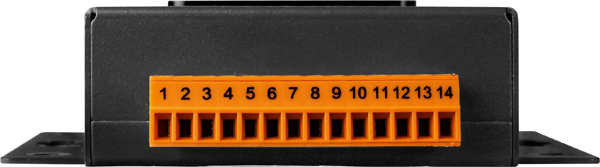

The PPDSM-734-MTCP is equipped with 1 RS-232 port, 1 RS-485 port, 1 RS-422/485 port and DI/DO. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
| Digital Output | |
| Output Channel | 4 |
| Output Type | Open Collector (Sink/NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Isolated Voltage | Non-isolated |
| Digital Input | |
| Input Channel | 4 |
| Input Type | Source (Dry Type), Common Ground |
| Off Voltage Level | +1 V max. |
| On Voltage Level | +3.5 ~ +30 V |
| Isolated Voltage | Non-isolated |
| Counters | Channels: 4 |
| Max. Count: 16-bit (65535) | |
| Max. Input Frequency: 100 Hz | |
| Min. Pulse Width: 5 ms | |
| CPU | ||
| CPU | 80186-80 MHz or compatible | |
| SRAM | 512 KB | |
| Flash Memory | Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
|
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
|
| Built-in Watchdog Timer | Yes | |
| Communication Interface | ||
| Non-isolated | COM1 | RS-232 (TxD, RxD, RTS, CTS,GND) |
| COM2 | RS-485 (D2+, D2-,GND) | |
| COM3 | RS-232 (TxD, RxD,GND) | |
| COM4 | RS-232 (TxD, RxD,GND) | |
| Ethernet | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
|
| PoE | IEEE 802.3af | |
| COM Port Formats | ||
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 ~ COM4 |
|
| Parity | None, Even, Odd, Mark, Space | |
| Stop Bit | 1, 2: for COM1 ~ COM4 | |
| Baud Rate | 115200 bps Max. | |
| LED Indicators | ||
| 5-digit 7 Segment | Yes, only for "D" versions | |
| System | Red | |
| PoE | Green | |
| Power | ||
| Protection | Power Reverse Polarity Protection | |
| Required Supply Voltage | PoE or +12 VDC ~ +48 VDC (non-regulated) | |
| Power Consumption | PPDS(M)-743-MTCP: 2.2 W PPDS(M)-743D-MTCP: 2.9 W |
|
| Mechanism | ||
| Flammability | Fire Retardant Materials (UL94-V0 Level) | |
| Dimension (W x H x D) | 72 mm x 123 mm x 35 mm (88 mm x 123 mm x 28 mm for "M" versions) | |
| Installation | DIN-Rail or Wall mounting | |
| Casing | Fire Retardant Plastic (Metal for "M" versions) | |
| Environment | ||
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) | |
| Storage Temperature | -40°C ~ +80°C (-40°F ~ 176°F) | |
| Humidity | 5 ~ 90% RH, non-condensing | |
