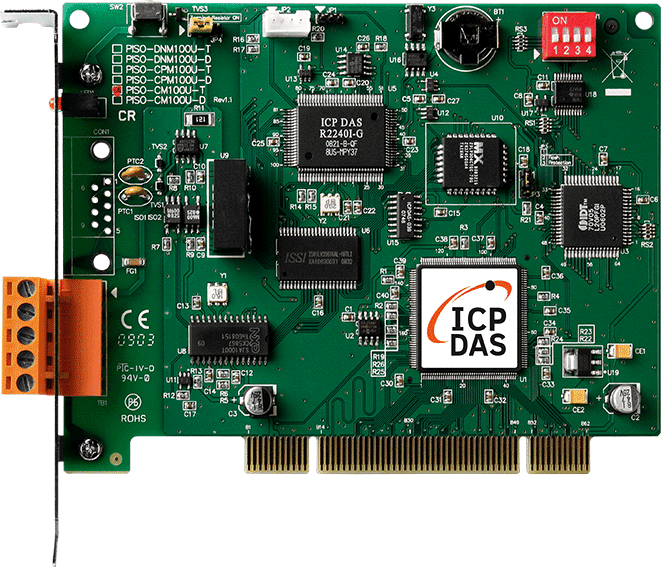

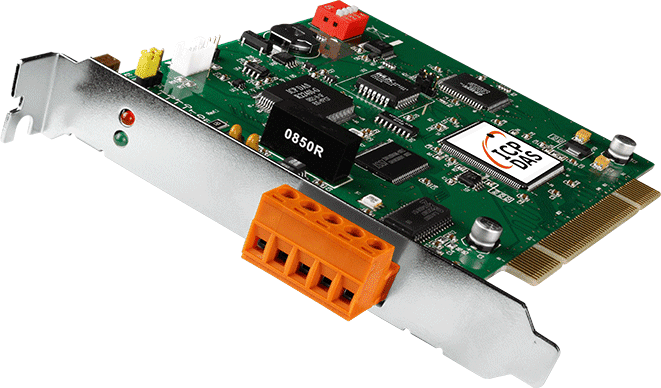

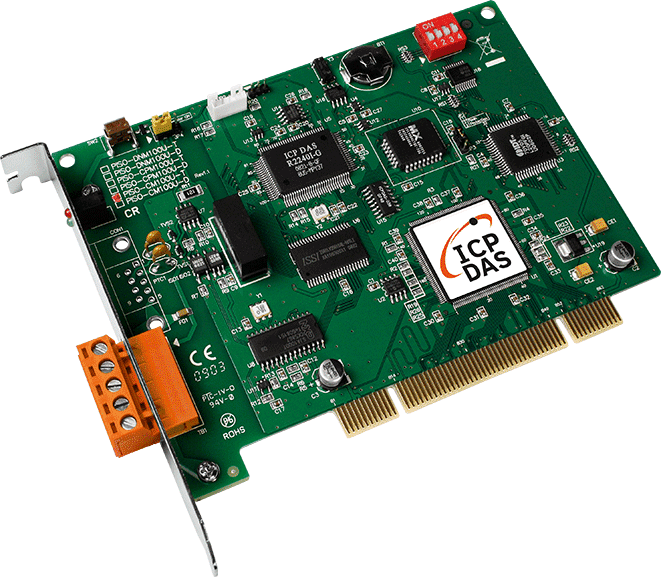

PISO-CM100U-T

The CAN (Controller Area Network) is a serial communication protocol and efficiently supports distributed real-time control with a very high level of security. It is suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense; instead prioritized messages are transmitted.

ICP DAS provides an open architecture platform for CAN bus-PISO CM100. The PISO-CM100 represents a very powerful and economic solution of an active CAN board with one CAN channels, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. PISO-CM100 also uses the new Phillips SJA1000T and Transceiver 82C250/251, which provide bus arbitration and error detection with auto correction and a re-transmission function. With the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. It is equipped with integrated intelligence functions, so PIO-CM100 makes it possible to preprocess CAN data streams; thus relieving the PC of a considerable burden. As a result, real-time requirements on PC applications are drastically reduced. It can be installed in a slot of 5V 32-bits PCI bus and supports true “Plug & play” technology.

Users can develop their own CAN applications by using the PISO-CM100 library. When the PISO-CM100 is active, the data exchange between users’ applications and can bus firmware is performed via the memory mapping method of the PISO-CM100.

Features

• Microprocessor inside with 80186, 80MHz
• 82C250 CAN transceiver
• SJA1000T CAN controller
• Support both CAN 2.0A and CAN 2.0B
• Timestamp with at least ±1ms precision
• DIP switch to select board number
• Dual port RAM communication mechanism
• RTC (real time clock) inside

Applications:

• DeviceNet
• CANopen
• CAN J1939
• SDS (System Wide Network) protocol applications
• CAN bus communication application.
• Industry automation
• Industrial Machinery
• Building Automation
• Food & Beverage
• Semiconductor Fabrication
• Control systems

Software Utility Features

• Windows Drivers:
  • Development Toolkit for Windows 98/Me/NT/2000/XP
  • Demos for VC++, VB and BCB
• Windows Tools
  • CANUility: Includes send/receive CAN messages, message ID filter, data format transformation, messages recoder and firmware update functions
  • Debug tool
• MiniOS7 Tools:
  • C/C++ Library for RTC, EEPROM, LED, DPRAM, CAN controller and timers control functions
  • Demos for TC, TC++, BC and BC++

• Architecture:










• Performance Test
  • Test development
  • OS：Windows XP SP 3
  • CPU：Intel Core 2 Duo 2.00 GHz
  • RAM：512 MB
