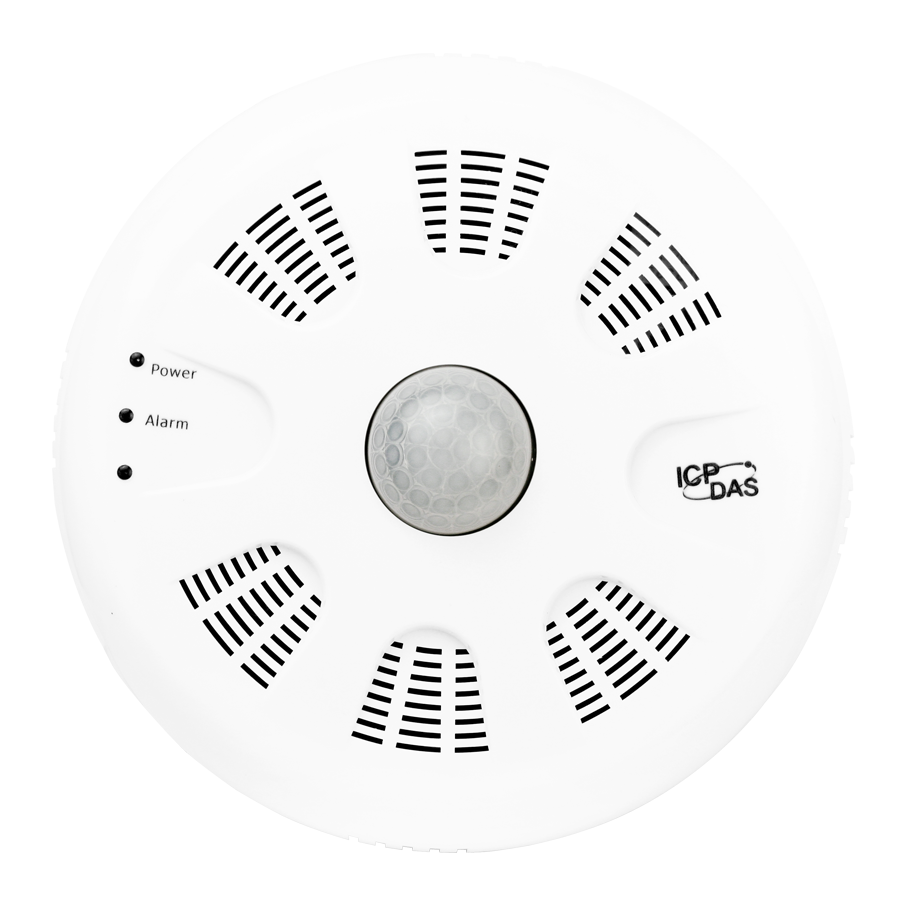

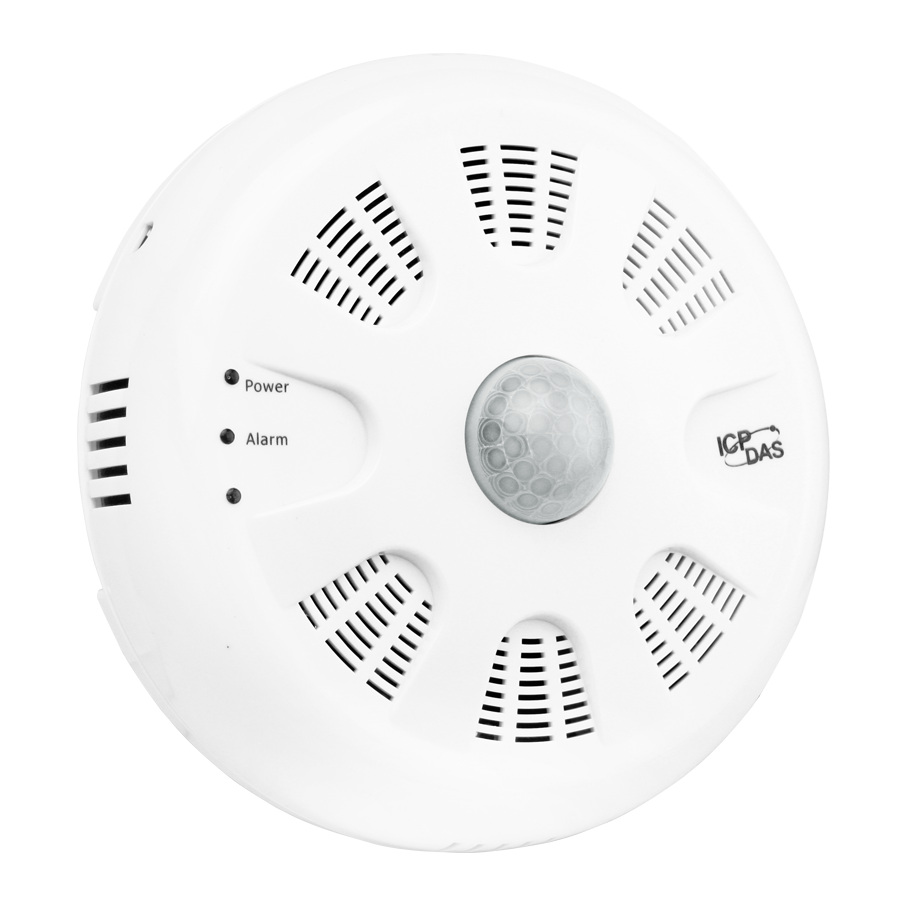

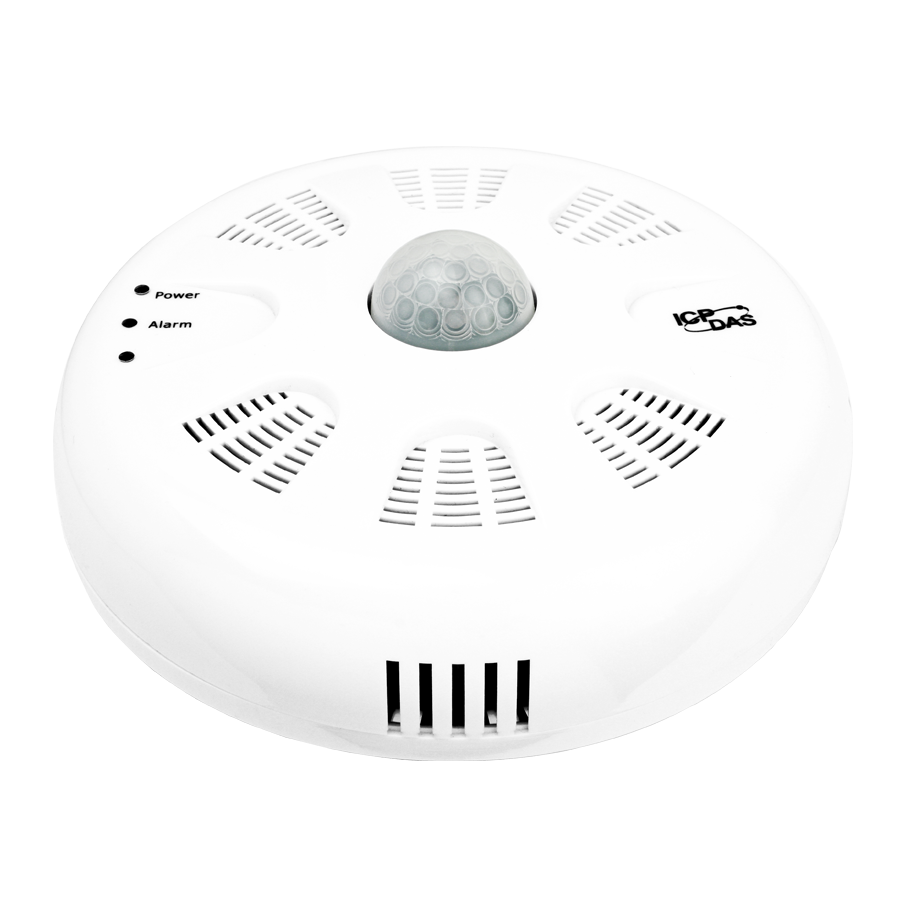

PIR series is equipped with 360° indoor motion detector sensor. It has the ability to automatically turn the light on with motion detection. Design to detect indoor temperature and humidity and can be configuered to activate a fire alarm. The RPIR versions include added microwave detection technology that is especially suitable for BA applications. A wide range of interface connections can be selected to suit individual needs, including RS-485/ZigBee/Ethernet/Bluetooth/ Wi-Fi models, and the various models provide support for the DCON and Modbus RTU, Modbus TCP protocols, and can be easily integrated into existing HMI/SCADA/central control systems.
Great use for anti-theft security, green energy, and environmental protection. A free Utility is also included that allows configuration information and data to be displayed in a powerful chart format that can be exported to Microsoft Excel.

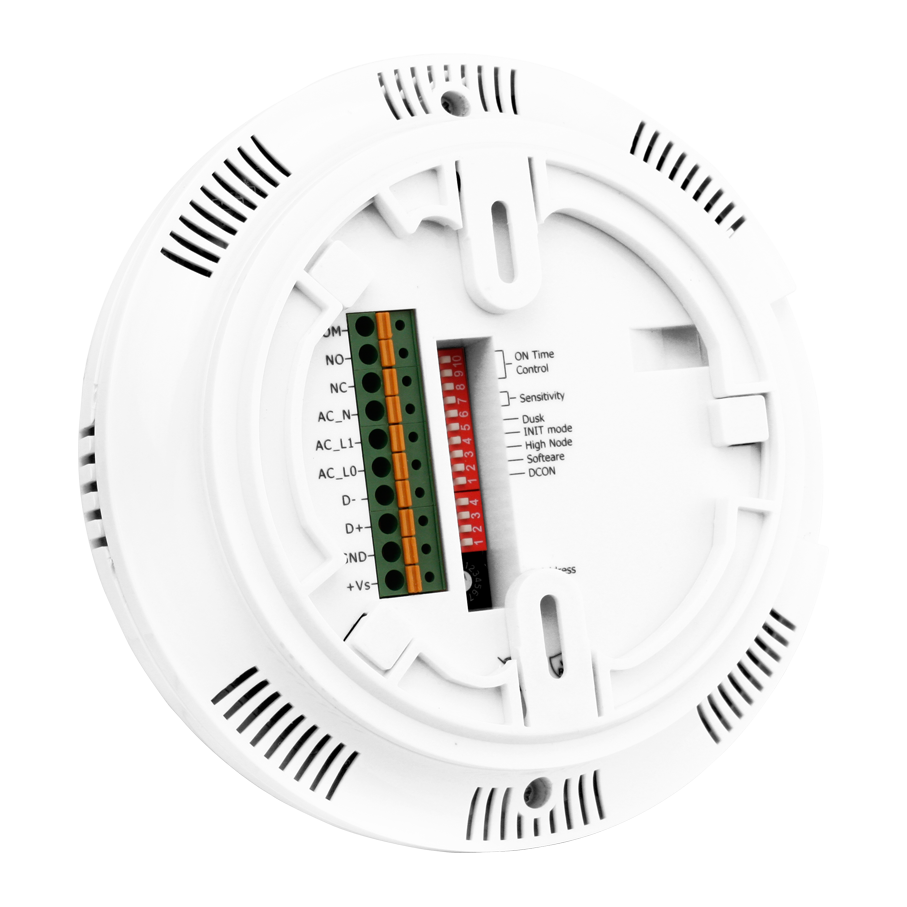

The screw-free quick-connect connector and the DIP and rotary switches make the modules easy to install, repair, and maintain. The casing of each module is made from UL94-V2 rated fireproof material, and the white minimalist exterior design ensures that it easy to match with interior decoration.
Motion and Occupancy Sensor
Delay Time
Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049
Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194
Lux Control Level
Hardware: 2 mode (Dawn and dust) / Software: 5-step
Detection Height
4 m Max.
Motion Detection Field of View
360o; 8 m Diameter Max.
Motion Detection Field of View
-
PIR Response Time
1 second
Temperature Sensor
Measurement Range
-40 to +120°C
Fire Alarm
65°C (Programmable)
Resolution
0.01°C
Accuracy
±0.5°C (at 0 to 60°C)
Relative Humidity Measurement
Range
0 to 100% RH
Resolution
0.1% RH
Accuracy
±5% RH
Digital Input
Channels
2
Type
Wet
On Voltage Level
70 to 220 VAC
Off Voltage Level
20 VAC Max.
Input Impedance
68 K&937;, 1 W
Relay Output
Channels
1
Type
Power Relay, Form C
Max. Load Current
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC
Load Wattage
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC
Communication
Node Address
Hardware: 160 to 191 / Software: 1 to 255
Protocol
DCON, Modbus RTU, Modbus TCP
Wire Interface
Yes, RS-485 X 1 and Ethernet/PoE X1
Wireless Interface
-
Standard Supported
-
Wireless Mode
-
Wireless Security
-
Transmission Range
-
LED Indicators
LED Indicators
Yes,1 as Power/Communication Indicator. 1 as Alarm Indicator.
EMS Protection
ESD (IEC 61000-4-2)
±4 kV Contact for each Terminal, ±8 kV Air for Random Point
EFT (IEC 61000-4-4)
±4 kV for Power Line
Power Requirements
ESD (IEC 61000-4-2)
±4 kV Contact for each Terminal, ±8 kV Air for Random Point
Power supply
10 to 48 VDC, PoE
Reverse Polarity Protection
Yes
Power Consumption
2 W
Mechanical
Installation
Ceiling /surface mounted
Protection Class
IP20
Protection Class
IP20
Environment
Operating Temperature
0 to +75°C
Storage Temperature
-30 to +80°C
Humidity
10 to 90% RH, Non-condensing
