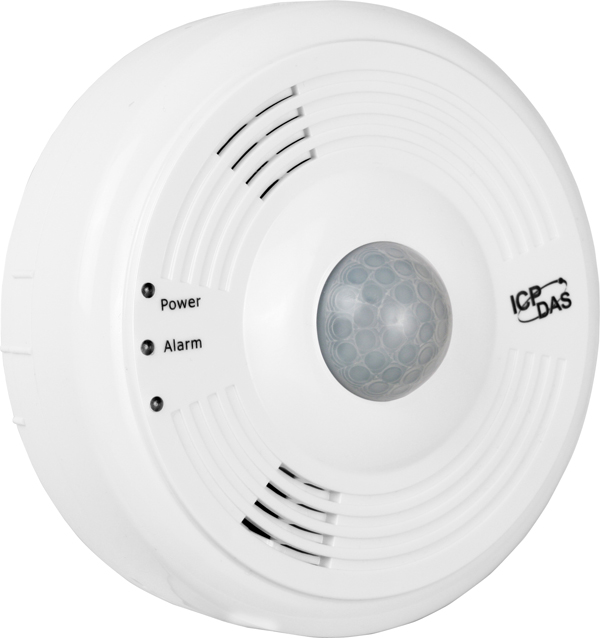

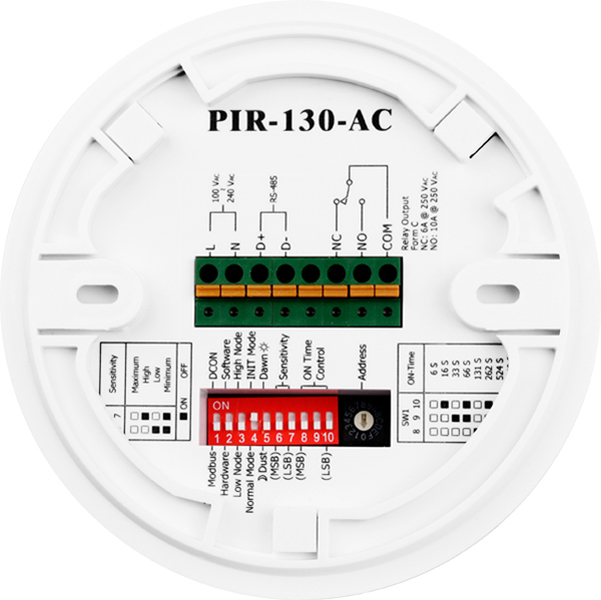

The PIR-130-AC module has a 1-channel passive infrared (PIR) sensor that detects human-body generated infrared waves within a range of approximately 8 meters in diameter with a 360° coverage area. The PIR-130-AC is for indoor motion detection and can be configured to automatically switch on a light if motion is detected. It also includes a 1-channel temperature sensor that can measure room temperature or be configured to activate a fire alarm.
The device has an RS-485 interface and runs on DCON and Modbus RTU protocols.
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal, ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Yes, 1 as Power/Communication Indicator. 1 as Alarm Indicator |
| PIR | |
|---|---|
| Detection Height | 4 meters Max. |
| Detection Field of View | 360°; 8 m Diameter Max. |
| Lux Control Level | Hardware: 2 modes (Dawn and dust) / Software: 5-step |
| Delay Time | Hardware: 8-step Switch-selectable (seconds): 6, 16, 33, 66, 131, 262, 524, 1049 Software: 16-step (seconds): 2, 4, 6, 8, 16, 33, 49, 66, 131, 262, 393, 524, 1049, 2097, 3146, 4194 |
| PIR Response Time | 1 second |
| Temperature Measurement | |
|---|---|
| Fire Alarm | 65°C (Programmable) |
| Range | -25 ~ +100°C |
| Resolution | 0.0625°C |
| Accuracy | ±2°C |
| Relay Output | |
|---|---|
| Channels | 1 |
| Type | Power Relay, Form C |
| Contact Rating | NO: 10 A @ 250 VAC NC: 6 A @ 250 VAC |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Protocol | DCON, Modbus RTU |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 110 ~ 220 VAC |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 121 x 52 ( x H) |
| Installation | Ceiling mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +35°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
