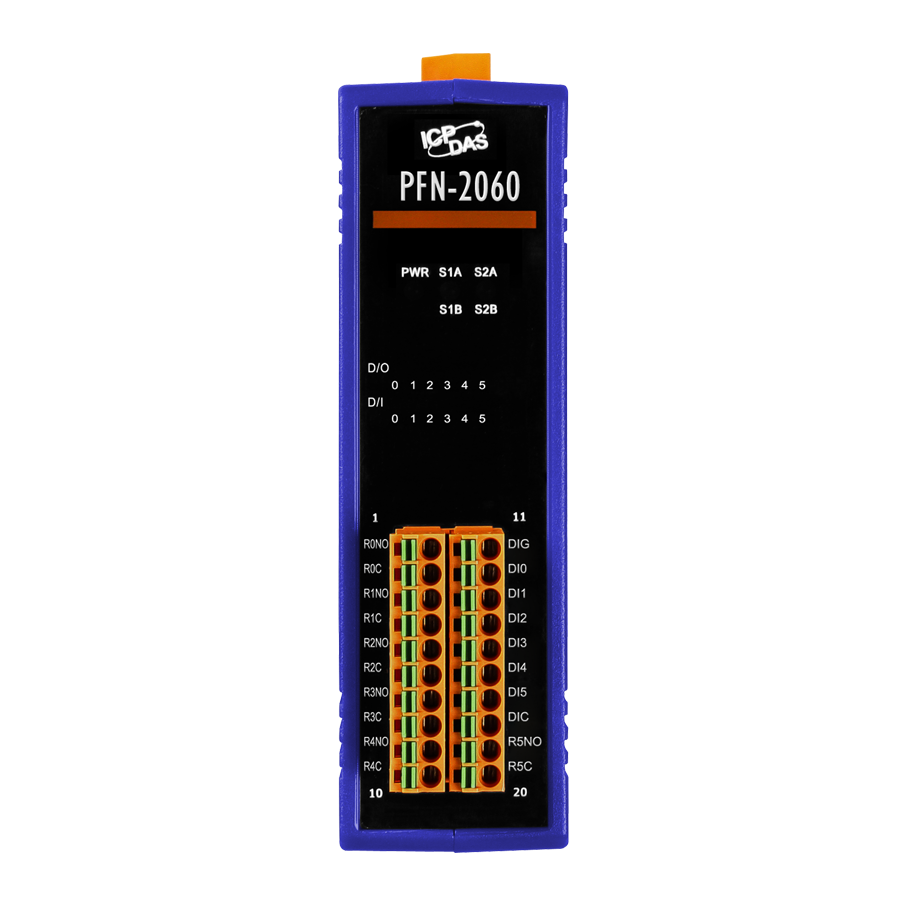

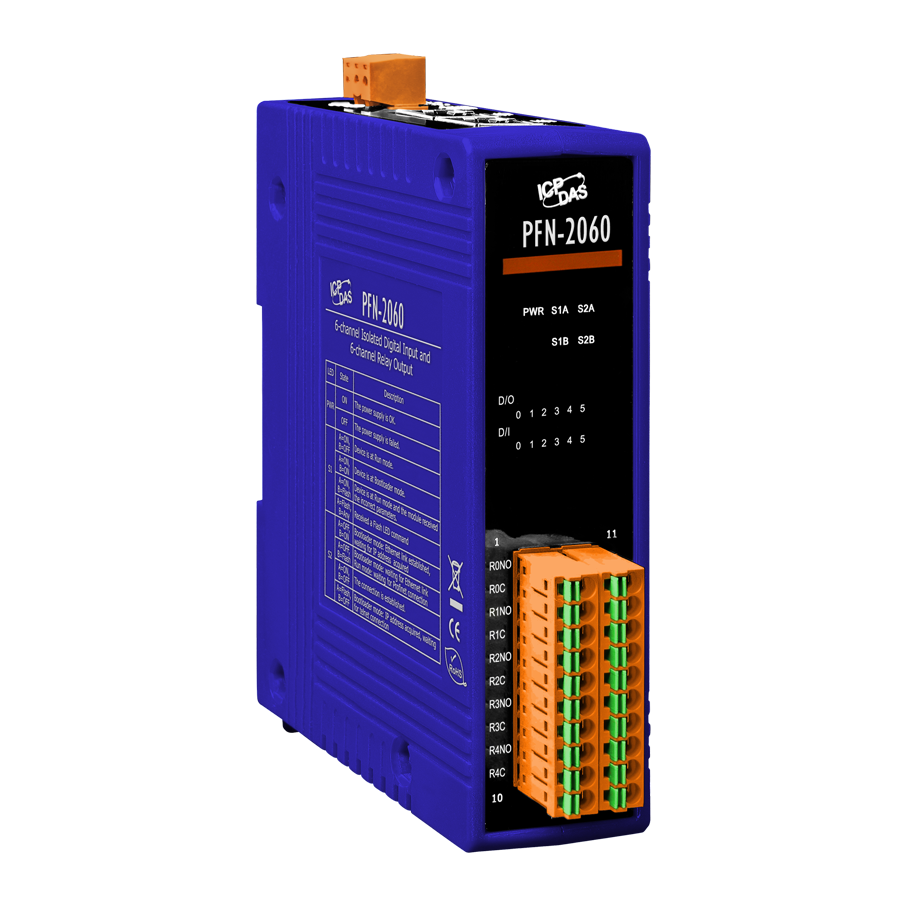

PFN-2060

$679.00

PROFINET I/O Module, Communicable Over Ethernet, Supports Operating Temperatures from -25°C ~ +75°C (Isolated 6-Channel Digital Input & 6-Channel Relay Output).

Availability: IN STOCK | FASTEST DELIVERY : Monday, Oct 12 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	PROFINET Data Acquisition
Review:	Write your review
Resources:	User's Manual Quick Start Data Sheet GSD PIN Assignment Wire Connection

The PFN-2060 PROFINET IO device has 6 isolated digital inputs, 6 relay outputs, and is suitable for industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

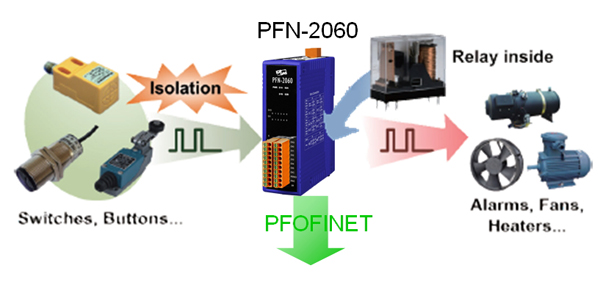

application

Applications

Industrial Automation
Factory Automation
Process Automation
Etc…

Features

Protocol: PROFINET IO Device
PROFINET Conformance Class B and RT Class 1
Cyclic Time: 1ms (min)
Generic GSDML File Provided (Version 2.25)
Support Power-ON Value & Safe Value
DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
4 kV Contact ESD protection for any terminal
Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)

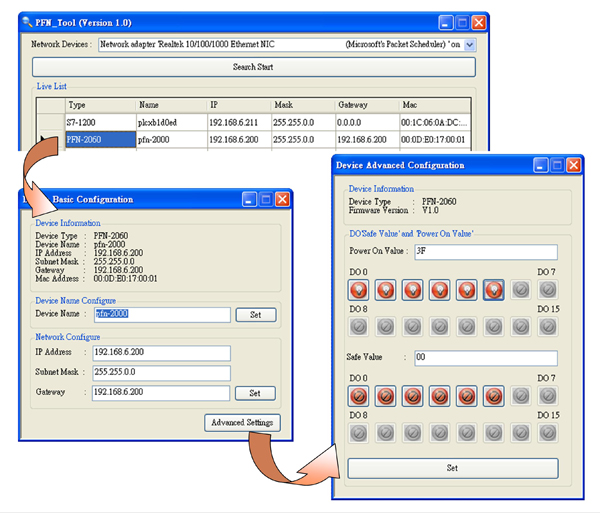

Utility

ICP DAS provides the PFN_Tool configuration utility to configure devices.

Provide device search function
Show firmware version
Support network parameters configuration
Settings for power-on value and safe value

PFN 2060 utility

Specifications

Hardware
CPU	32-bit CPU Core
RAM/Flash/EEPROM	32 MB / 4 MB / 8 KB
Watchdog	CPU built-in
ESD Protection	4 kV class B
PROFINET Interface
Protocol	PROFINET IO Device
Conformance Classes	Class B
Services	RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time	1 ms (min)
Ethernet Interface
Controller	10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

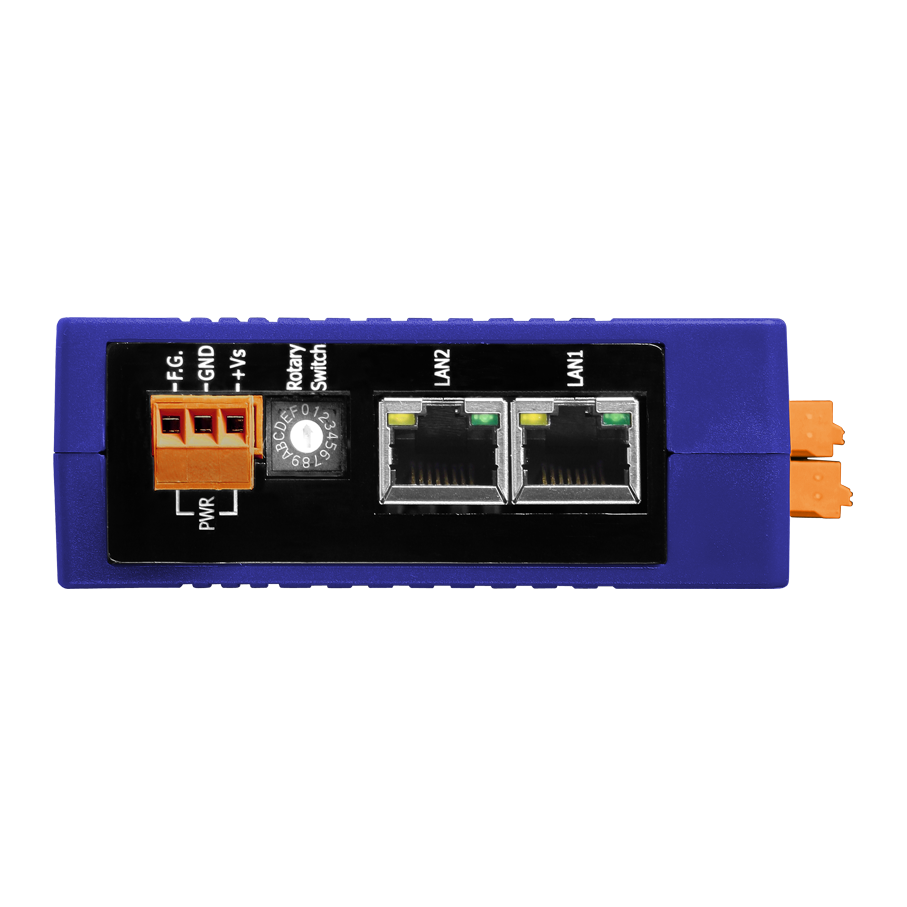

Connector	RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services	ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Input
Channels	6, Dry Contact: Source, Wet Contact: Sink or Source
Dry Contact Level	Off Voltage Level : Open, On Voltage Level : Close to GND
Wet Contact Level	Off Voltage Level : +4 VDC max., On Voltage Level : +10 VDC to +50 VDC
Digital Output
Channels	6, Power Relay, Form A x 6
Contact Rating	AC: 125 [email protected] DC: 30V@2A, [email protected]
Operating Time	3 ms
Release Time	2 ms
Total Switching Time	10 ms
Surge Strength	500 VAC (50/60 Hz)
Insulation resistance	1000 MW min. at 500 VDC
LED
Round LED	PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply	Unregulated +10 ~ +30 VDC
Protection	Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption	4.5 W
Mechanism
Installation	DIN-Rail
Dimensions	33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing
