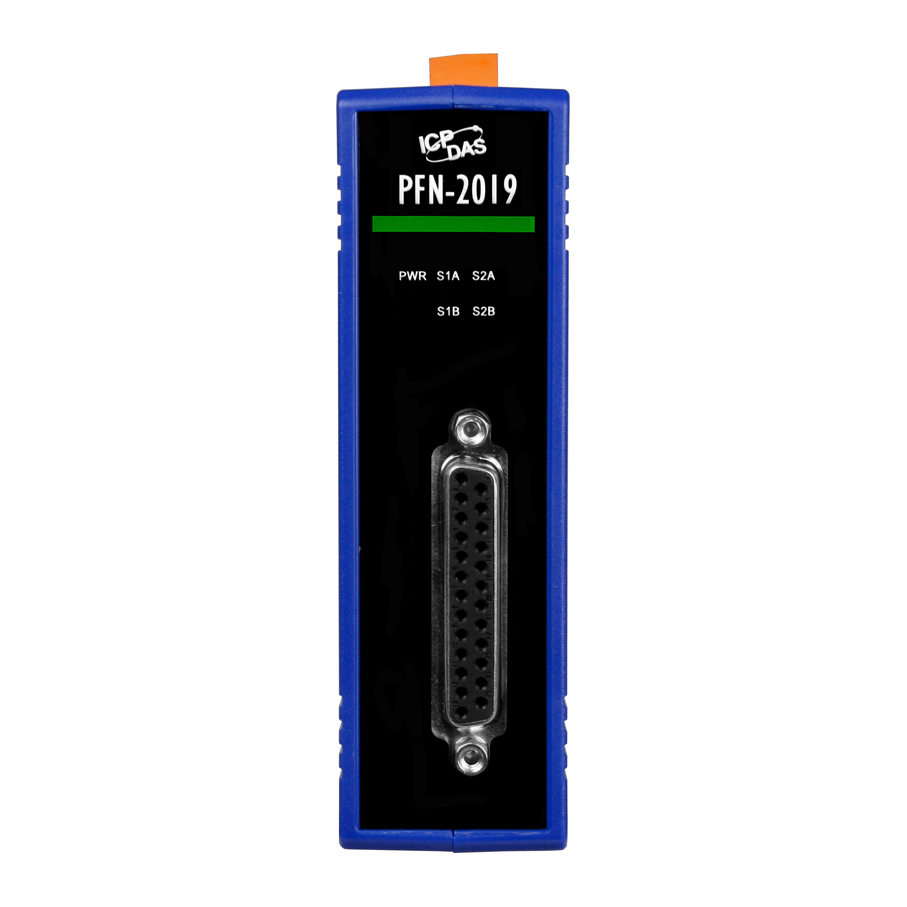

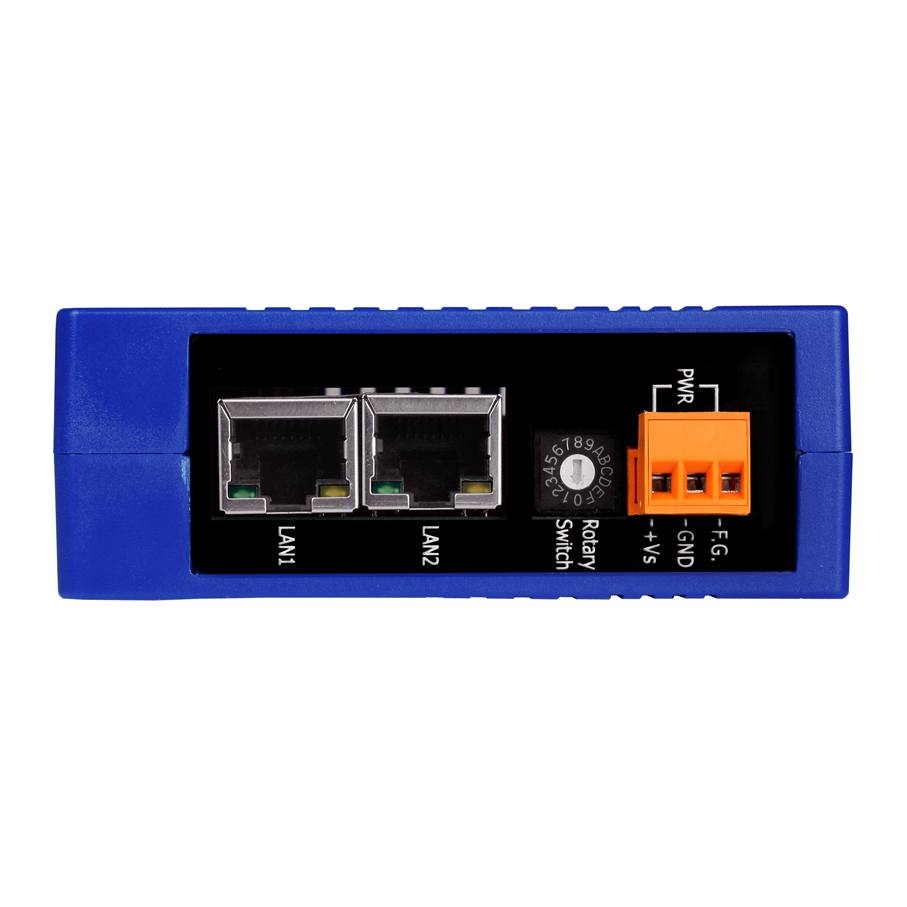

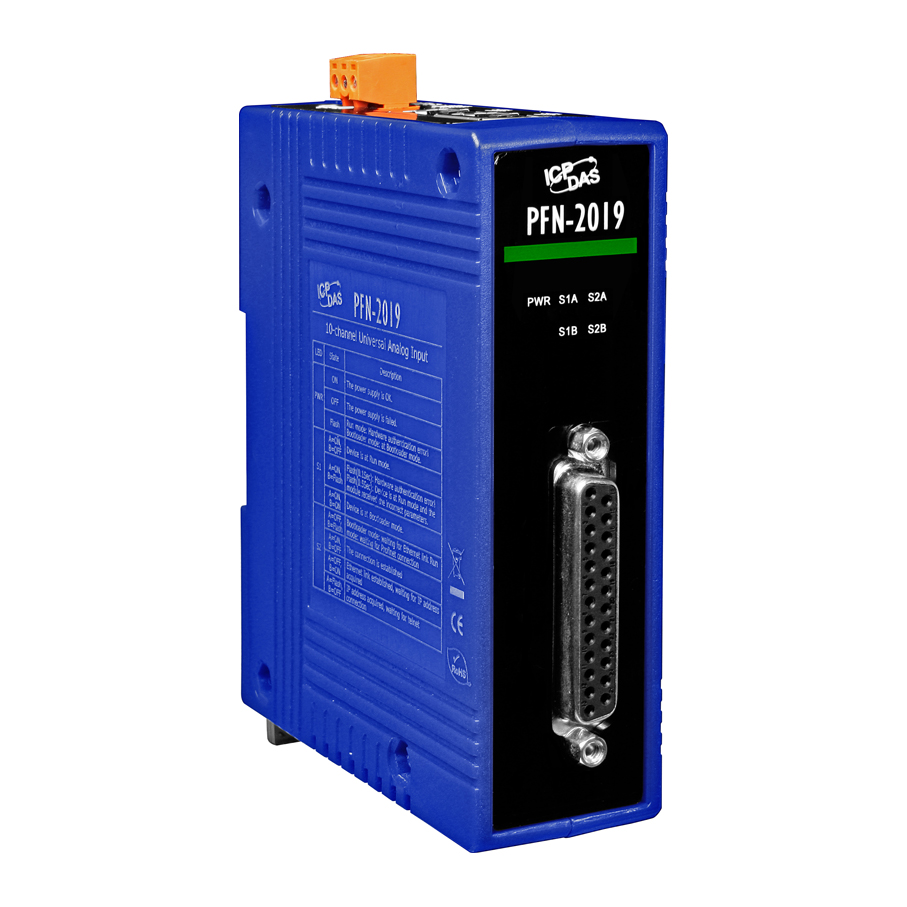

PFN-2019/S

$1,399.00
PROFINET 10 Channel Universal Analog Input (Current Input) Module with 4 kV Contact ESD protection for any terminal. Has Thermocouple, Voltage and Current Input types. Has power input range of +10 ~ +30 VDC. Communicates over PROFINET protocol. Supports operating temperatures of -25°C ~ +75°C (-13°F ~ 167°F) and is din rail mountable.
Availability: IN STOCK | FASTEST DELIVERY : Monday, Oct 12 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: PROFINET Data Acquisition
Review: Write your review
Resources:

The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • 16-bits resolution & 10Hz sample rate
  • Supports thermocouple devices with J,K,T,E,R,S,B,N,C
  • 4 kV Contact ESD protection for any terminal
  • Wide range of power input (+10 ~ +30 VDC) and operating temperature -25°C ~ +70°C (-13°F ~ +158°F)

Utility

ICP DAS provides the PFN_Tool configuration utility to configure devices.

  • Provide device search function
  • Show firmware version
  • Support network parameters configuration
  • Show module parameters of the PFN-2019
  • Show diagnostic messages of the PFN-2019

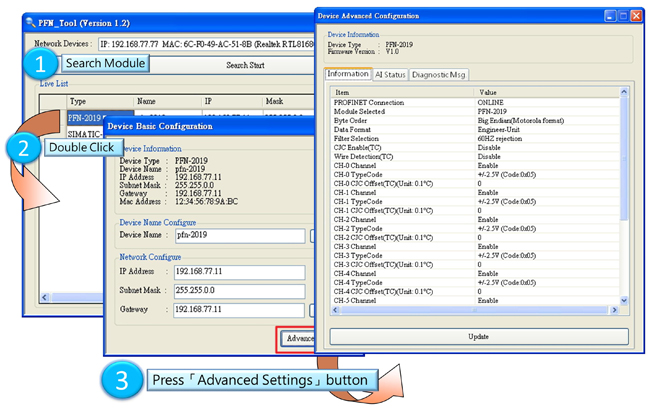

PFN 2019 utility

Specifications

Hardware
CPU 32-bit CPU Core
RAM/Flash/EEPROM 32 MB / 4 MB / 8 KB
Watchdog CPU built-in
ESD Protection 4 kV class A
PROFINET Interface
Protocol PROFINET IO Device
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Analog Input
Channels 10 channel differential
Input Range +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 0~20mA, 4~20mA (Jumper Selectable),
Thermocouple Type: J, K, T, E, R, S, B, N, C
Resolution 16 bit
Sample Rate 10 Hz (Total)
Accuracy +/- 0.1% of FSR
Open Wire Detection Yes
LED
Round LED PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 5 W
Mechanism
Installation DIN-Rail
Dimensions 33 mm x 93 mm x 126 mm (W x L x H)
Environment
Operating Temp. -25°C ~ +70°C (-13°F ~ 158°F)
Storage Temp. -30°C ~ +80°C (-22°F ~ +176°F)
Humidity 10 ~ 90% RH, non-condensing
