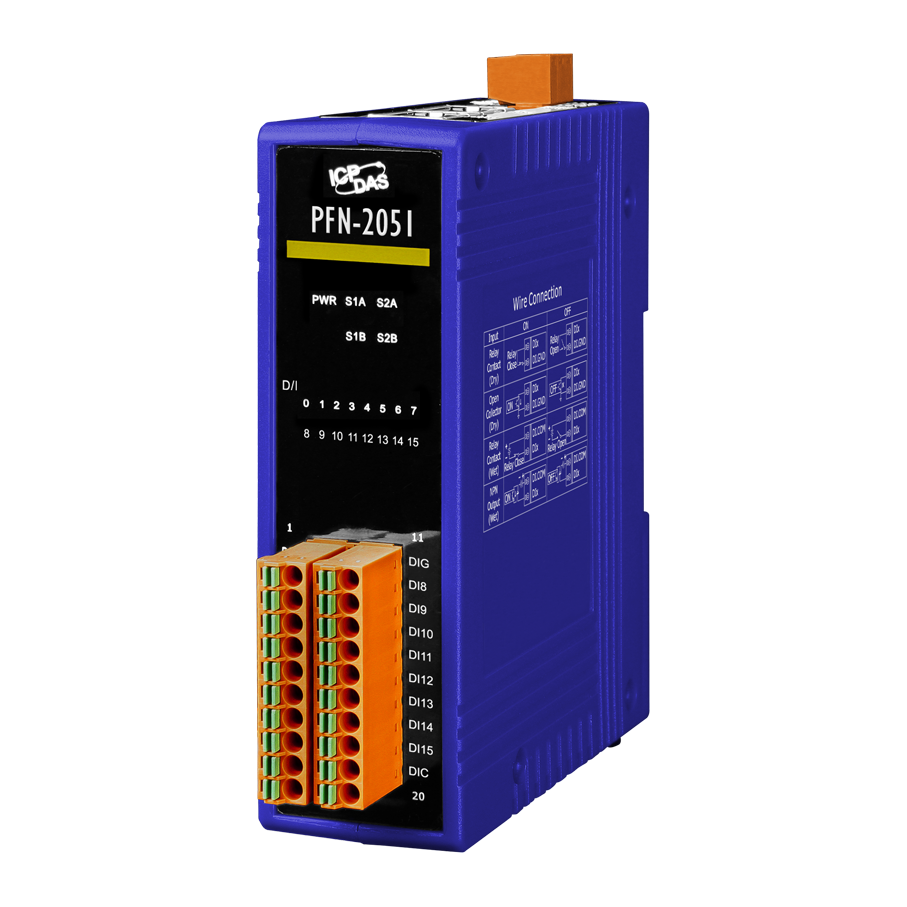

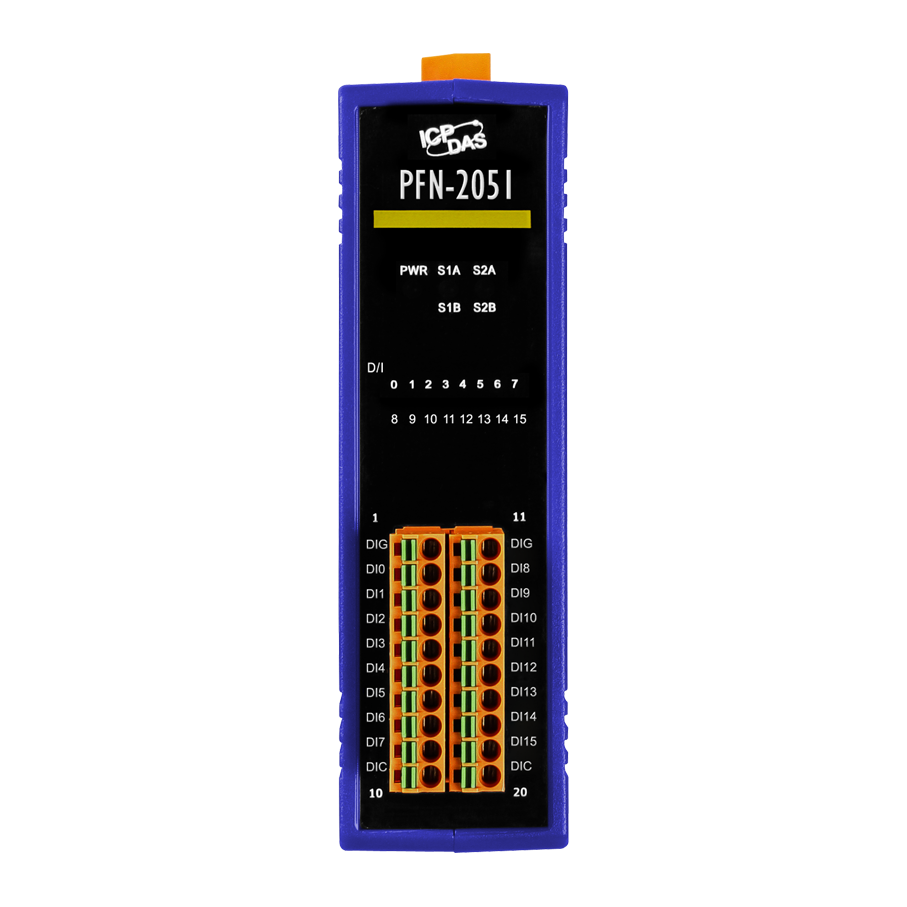

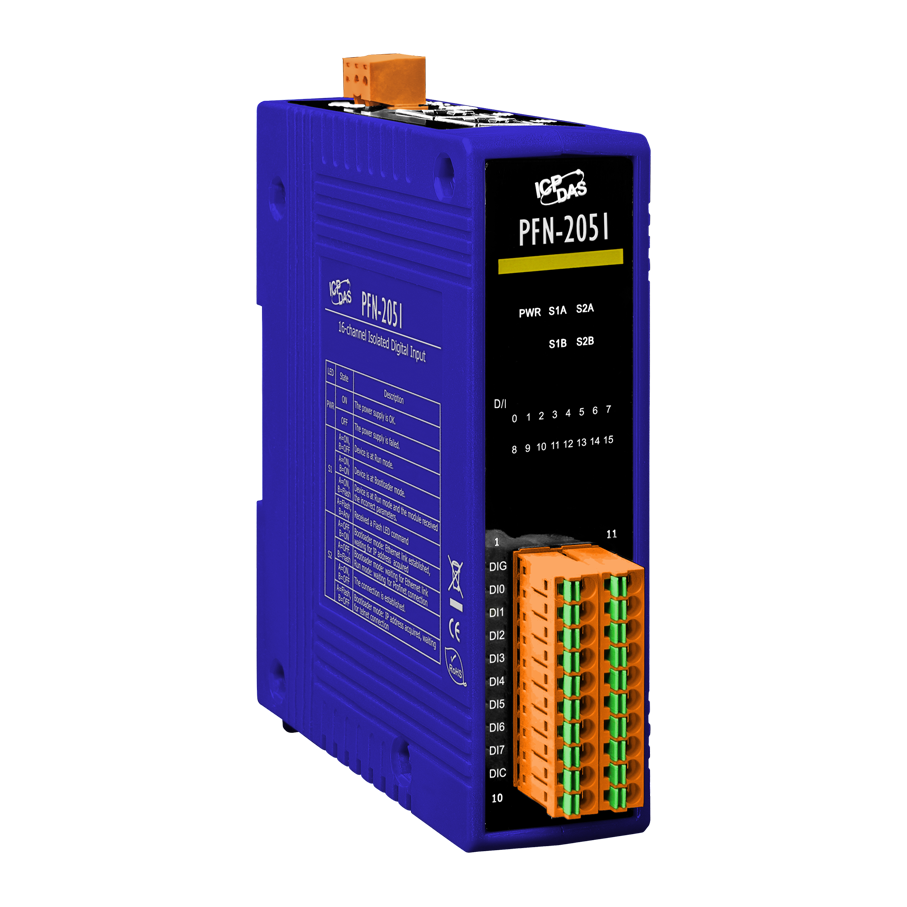

PFN-2051

$679.00
PROFINET Input Module (Isolated 16-ch Digital Input) 4 kV Contact ESD protection for any terminal. Communications over PROFINET protocol and has an operating temperature of -25°C ~ +75°C (-13°F ~ 167°F) and is din rail mountable.
Availability: IN STOCK | FASTEST DELIVERY : Monday, Oct 12 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: PROFINET Data Acquisition
Review: Write your review
Resources:

Application Image for PFN-2051The PFN-2051 is specially designed for PROFINET IO device. It has 16-channel isolated digital inputs and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.

  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
  • 4 kV Contact ESD protection for any terminal
  • Wide range of power input (+10 ~ +30 VDC) and operating temperature -25°C ~ +75°C (-13°F ~ 167°F)
  • RoHS Compliant

Specifications

Hardware
CPU 32-bit CPU Core
RAM/Flash/EEPROM 32 MB / 4 MB / 8 KB
Watchdog CPU built-in
ESD Protection 4 kV class B
PROFINET Interface
Protocol PROFINET IO Device
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Ethernet Interface
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)

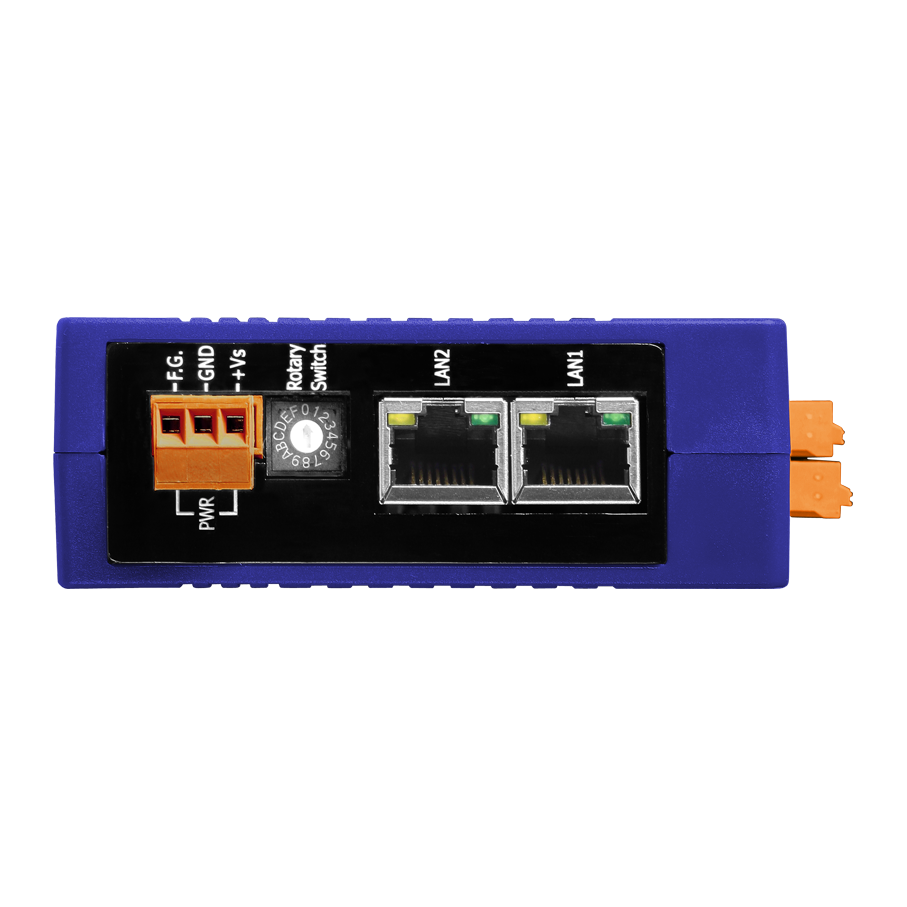

Connector RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Input
Channels 16, Dry Contact: Source, Wet Contact: Sink or Source
Dry Contact Level Off Voltage Level : Open, On Voltage Level : Close to GND
Wet Contact Level Off Voltage Level : +4 VDC max., On Voltage Level : +10 VDC to +50 VDC
LED
Round LED PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 3.5 W
Mechanism
Installation DIN-Rail
Dimensions 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp. -25°C ~ +75°C (-13°F ~ 167°F)
Storage Temp. -30°C ~ +80°C (-22°F ~ +176°F)
Humidity 10 ~ 90% RH, non-condensing

Add a review

Your email address will not be published. Required fields are marked *

Overall ratings
Select Rating *
You must be signed in to review! Click here to sign in.
Related Products
PFN-2053
PFN-2053
$679.00

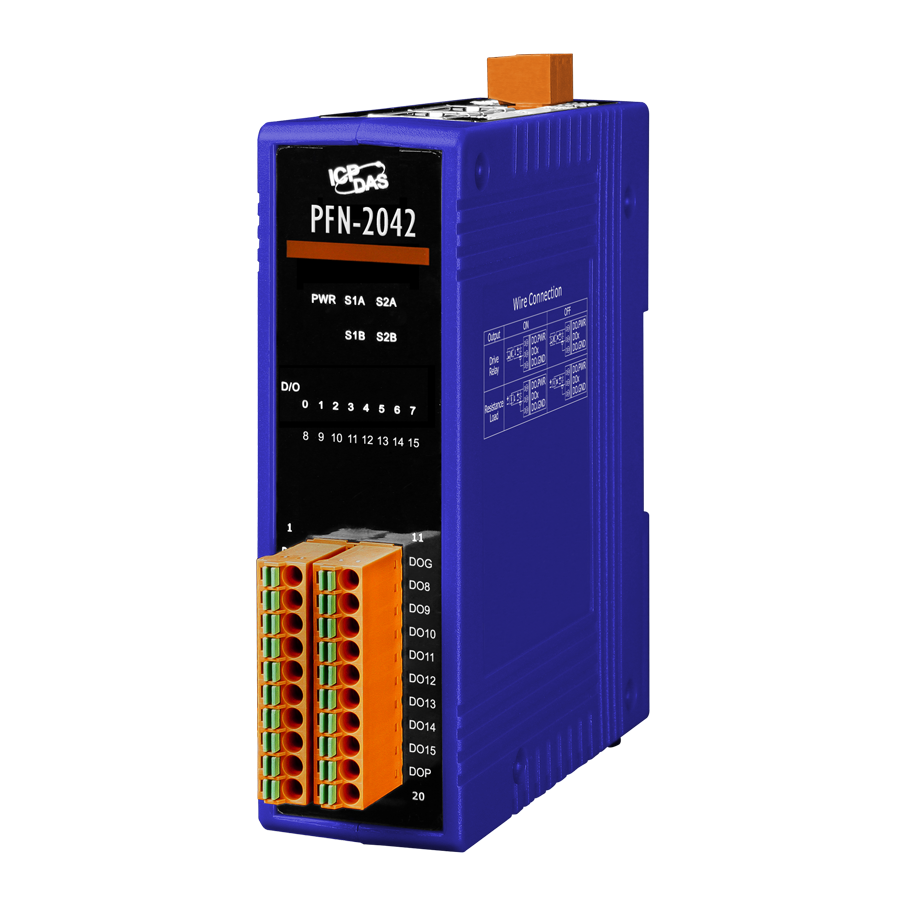

PFN-2042
PFN-2042
$679.00

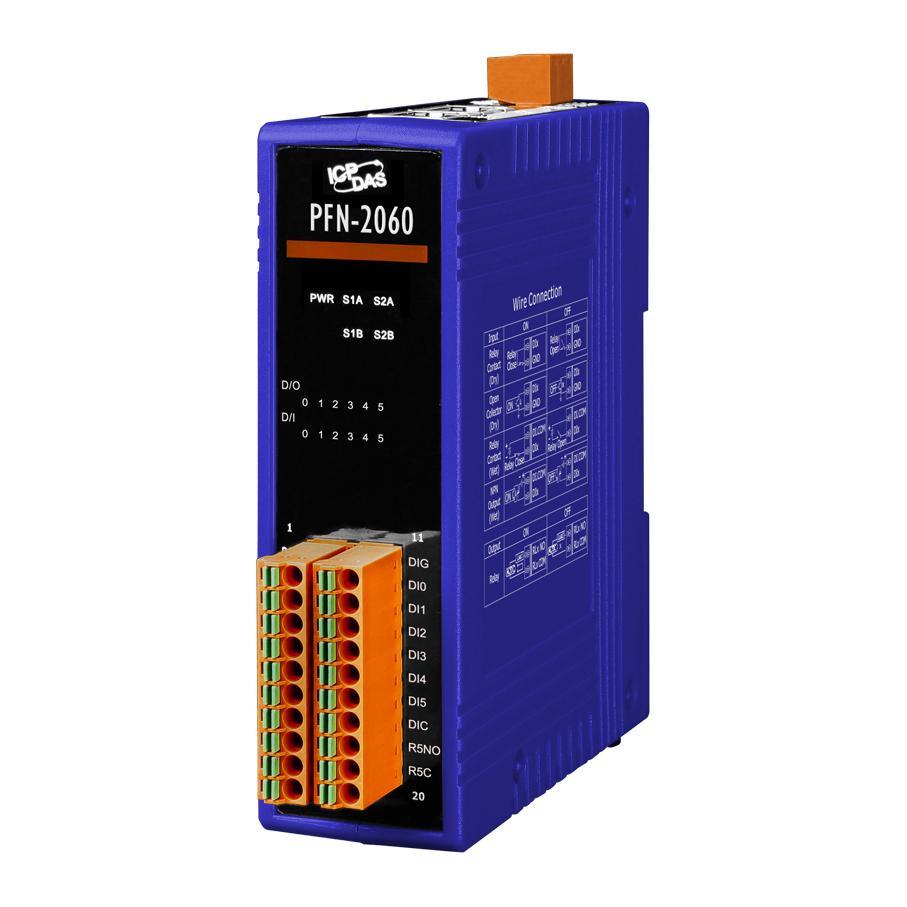

PFN-2060
