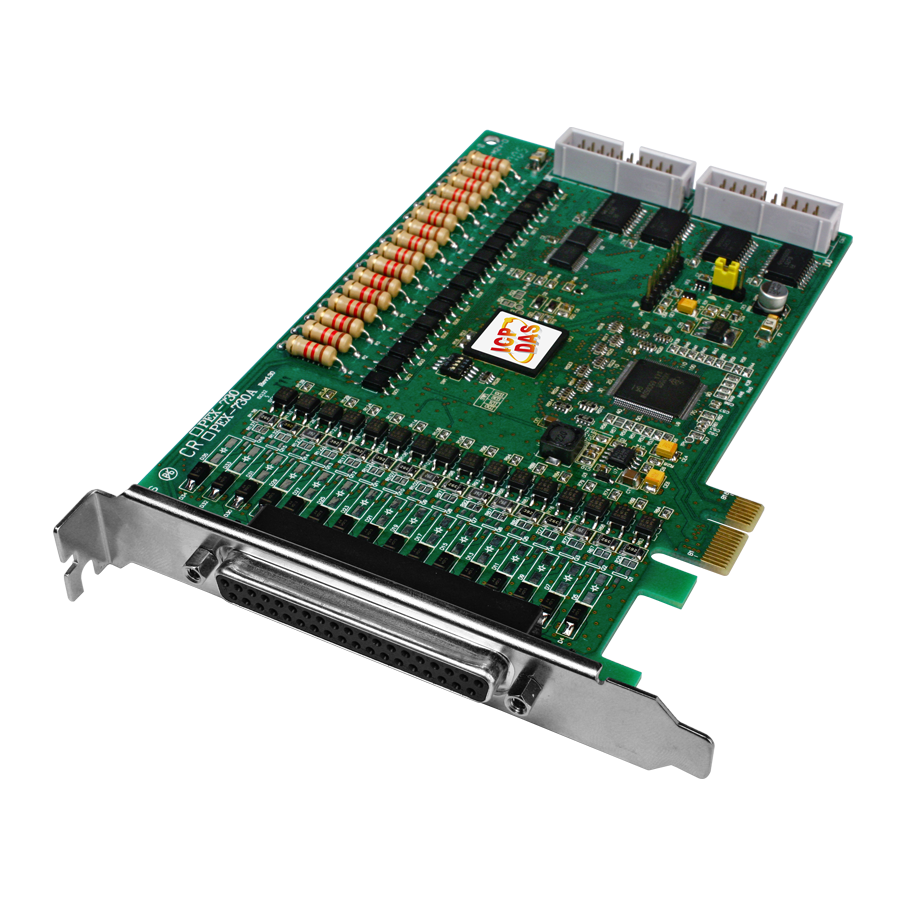

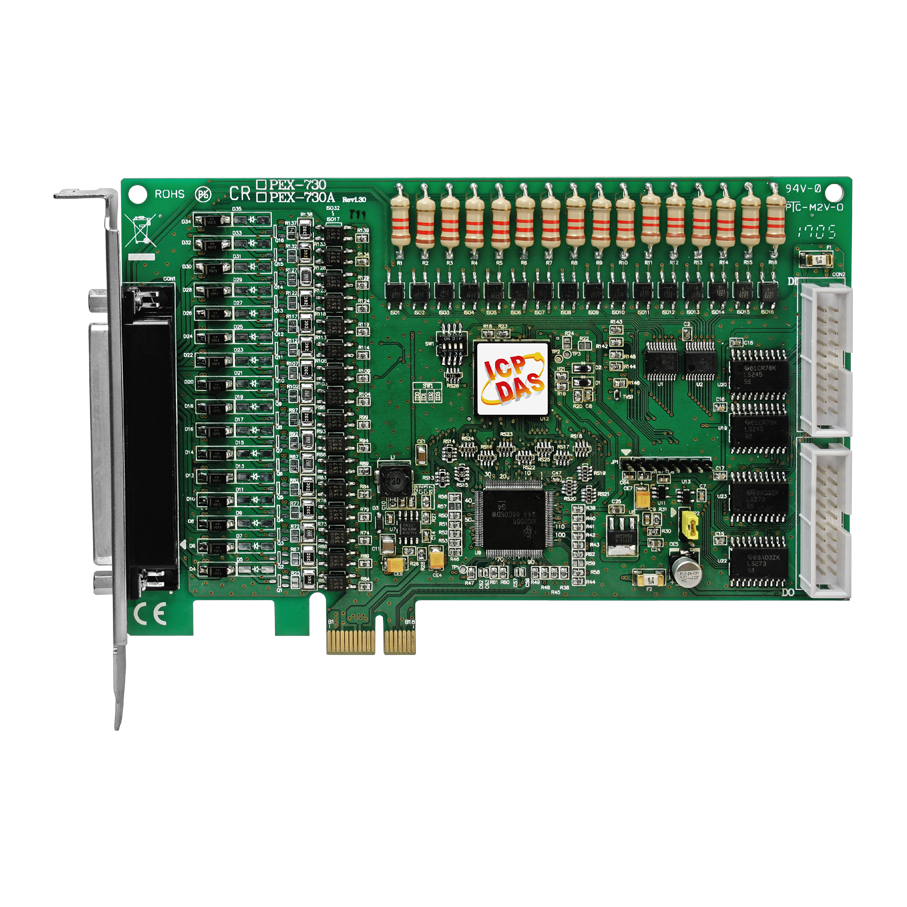

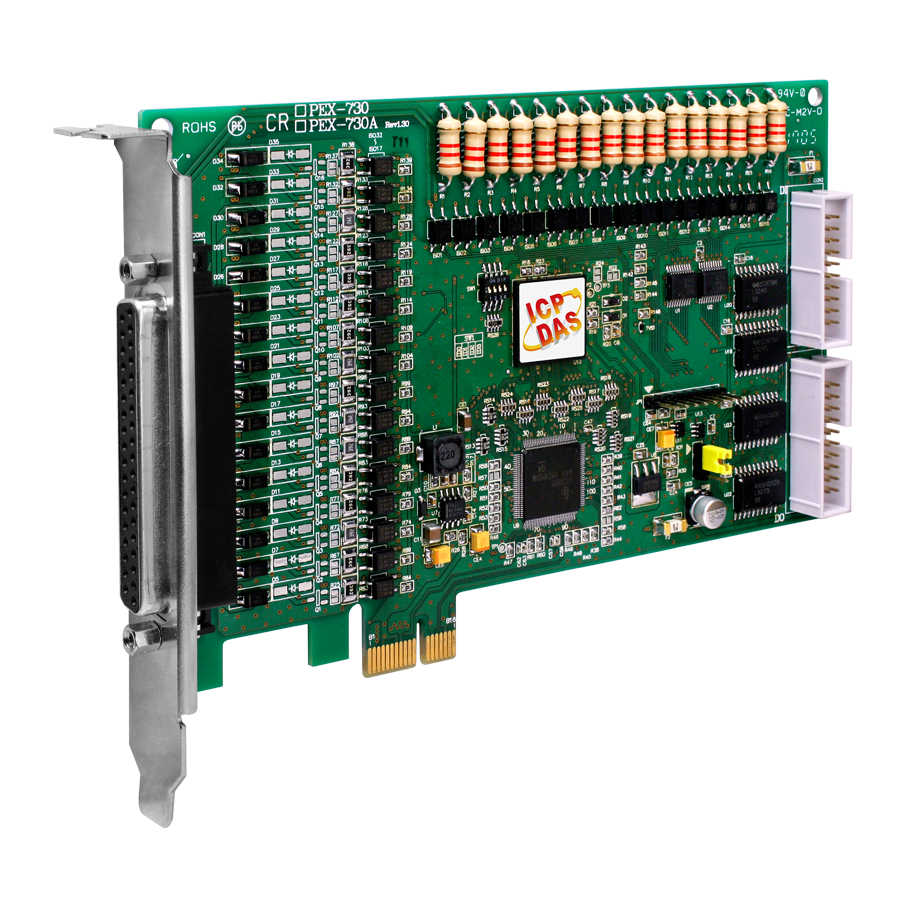

PEX-730A cards provide 32-channel isolated digital I/O (16 x DI and 16 x DO) and 32-channel TTL-level digital I/O (16 x DI and 16 x DO). The isolated DI and DO channels are a short optical transmission path that transfers an electronic signal between the elements of a circuit, keeping them electrically isolated. With 3750 Vrms isolation protection, these DIO channels allow the input signals to be completely floated, preventing ground loops and isolating the host computer from damaging voltages. Each digital output offers a Darlington (NPN) transistor and integrated suppression diode for the inductive load. The open collector outputs (DO channels) functions as an alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc.
PEX-730A cards also add a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more cards in one computer.
PEX730A cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.
Isolated Digital Input
Isolation Voltage
3750 Vrms
Channels
16
Compatibility
Optical
Output Voltage
Logic 0: 0 ~ 1 V
Logic 1: 9 ~ 24 V
(Logic 1: Min. 7 V; Max. 30 V)
Input Impedance
1.2 KΩ, 1 W
Response Speed
4 kHz (Typical)
Isolated Digital Output
Isolation Voltage
3750 Vrms
Channels
16
Compatibility
Source (PNP), Open Collector
Output Capability
100 mA/+30 V for each channel @ 100% duty
Response Speed
4 kHz (Typical)
Non-isolated Digital Input
Channels
16
Compatibility
5V/TTL
Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed
1.2 MHz (Typical)
Non-isolated Digital Output
Channels
16
Compatibility
5V/TTL
Output Voltage
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed
1.2 MHz (Typical)
General
Bus Type
PCI Express x 1
Data Bus
8-bit
Card ID
Yes (4-bit)
I/O Connector
Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D)
163 mm x 110 mm x 22 mm
Power Consumption
640 mA @ +5 V
Operating Temperature
0 ~ 60°C
Storage Temperature
-20 ~ 70°C
Humidity
5 ~ 85% RH, non-condensing
