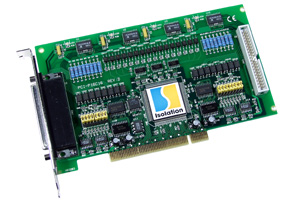

PCI-P16C16

$529.00
16 Channel Isolated Digital Input, 16 Channel Open-Collector Output Board. Includes CA-4037W cable and two CA-4002 D-Sub connectors
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: PCI Digital I/O Boards | PCI Digital I/O
Review: Write your review
Resources:

The PCI-P16C16 provides 16 optically isolated inputs and 16 open-collector outputs. The PCI-P16C16 has two 37-pin D-Sub connectors. It can be installed in a 5V PCI slot and supports true "Plug & Play".

  • 16 Open-Collector output channels
  • 16 Optical isolated digital input channels
  • DC signal input with filter or without filter
  • AC Signal input with filter
  • Software
    • Toolkit for DOS
    • Toolkit for Windows 95/98
    • Toolkit for Windows NT
    • Toolkit for Windows 2000/XP
    • LabVIEW toolkit for Windows
    • Toolkit for OCX 95/98
    • Toolkit for OCX NT
    • Toolkit for OCX 2000/XP
    • Driver for LINUX
    • Driver for DasyLab

Specifications

  • Open-Collector (NPN) Outputs
  • Load current : 600mA (Max) per channel
  • Load Voltage: 30Vdc
  • Isolated Inputs
    • Type : None- polarized opto-isolated (PC-814)
    • Input voltage : AC/DC 5-24V or VAC (50 - 1khz)
    • Input impedance : 1.2 Kohm
    • Response time : 20u Sec (Without filter)
    • 22m Sec ( with filter)
    • Isolated : 500v channel-channel / channel - ground
  • General Environment
    • Operation Temperature. : 0° to 50°C
    • Storage Temperature. : -20°C to 70°C
    • Humidity : 0 to 90% non-condensing
    • Dimensions : 180mm x 105mm
