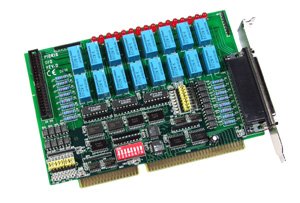

P16R16DIO

$379.00
Isolated 16 Digital Input & 16 Relay Output Board. Includes one CA-4037B cable and two CA-4002 D-Sub connectors
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: ISA Isolated Digital I/O Boards | ISA Digital I/O
Review: Write your review
Resources:

The P16R16 DIO is a 16 isolated digital input and 16 relay output interface board, designed for control and sensing applications. This interface board can be easily installed in any PC/AT/XT computer. The P8R8 DIO board Provides 16 electromechanical relay outputs and 16 optically isolated inputs. The P16R16 DIO has two 37-pin D-Sub Connectors and its function is equal to two P8R8DIO boards.

  • Relay Output Channel
    • optically isolated digital input channels
    • AC/DC signal Input
    • AC signal input with filter
    • Connector pin assignment is compatible to 725 series
    • Power Requirements :
      • +5V 200mA(max.)
      • +12V 260 mA (max.)

Specifications

  • Relays:
    • Relay output Channels: 16
    • Contact Rating:
      • 0.3 A ;120V AC/DC
      • 1A ; 30V DC
    • Contact arrangement Output channes 0-3 are Form C
    • Output channels 4-7 are Form A
    • Operating time: 5 m Sec
    • Release time: 10m Sec
    • Expected life > 100,000 times (Electrical at 30V/1A)
  • Inputs
    • Channels: 16
    • Type Non-polarized OPTO-isolated , (PC-814)
    • Input Voltage AC/DC 5-24V ( Vac Feq:50~1Khz)
    • Input Impedance 1.2 KW
    • Response Time 20mS ( Without filter)22mS ( With filter)
    • Isolation 500V channel-channel & channel-ground
  • General Environment
    • Operating temperature: 0° - 50°C
    • Storage temperature: -20°C - 70°C
    • Humidity: 0 to 90% non-condensing
    • Dimensions: 175cm x 121cm
