The NSM-216 has 16 Ethernet ports that support 10/100 Base-TX, with a 10/100M auto negotiation feature and auto MDI/MDI-X function. It can connect 16 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections.
All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly. The NSM-216 supports advanced network standards to optimize network performance, reduce maintenance costs, and secure network safety.
The flow control mechanism is also negotiated. There is link/data rate LEDs for each port to aid troubleshooting. Port connectors are shielded RJ-45.
| Technology | |
| Standards | IEEE802.3, 802.3u, 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Addresses | 8K |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 3 Mbit |
| Flow Control | IEEE 802.3x fl ow control, back pressure flow control |
| Interface | |
| RJ-45 Ports | 10/100 Base-TX auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| LED Indicators | PWR1, PWR2, Power fail, 10/100M, Link/Act |
| Ethernet Isolation | 1500 Vrms 1 minute |
| Power | |

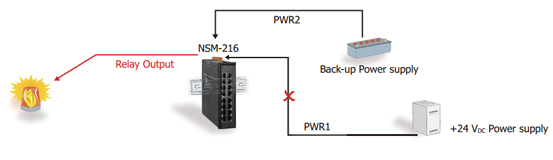

| Redundant Input Range | +12 VDC ~ +48 VDC (Non-isolation) |
| Power Consumption | 0.6 A @ 24 VDC |
| Alarm Contact | One relay output with current carrying capacity of 1A @ 30 VDC |
| Protection | Power reverse polarity protection |
| Connection | 6-Pin Removable Terminal Block (Power & Relay) |
| Mechanical | |
| Casing | Metal (IP30 Protection) |
| Dimensions (W x L x H) | 25 mm x 168 mm x 119 mm |
| Installation | DIN-Rail or Wall Mounting |
| Environmental | |
| Operating Temperature | -40 °C ~ + 75 °C |
| Storage Temperature | -40 °C ~ + 85 °C |
| Ambient Relative Humidity | 10 ~ 90% RH, non-condensing |
