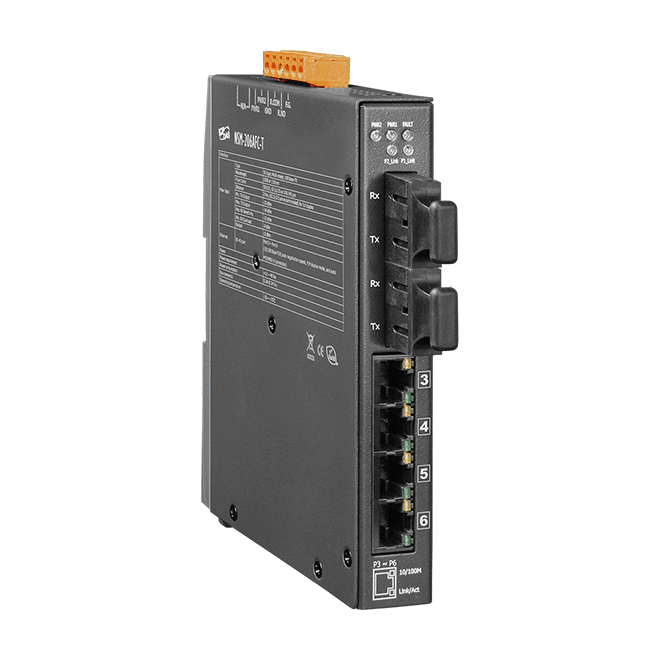

NSM-206AFC-T

Introduction

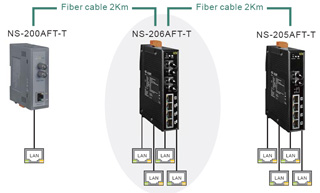

The NSM-206AFC-T is a 4-port unmanaged Ethernet with 2 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 2 km) transmissions. The NSM-206AFC-T provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.

Features

• Provides 6 x 100-FX fi ber port plus 4 x Ethernet ports
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• DIN-Rail
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Redundant dual +12 ~ 48 VDC power inputs
• Supports operating temperatures from -30 ~ +75°C

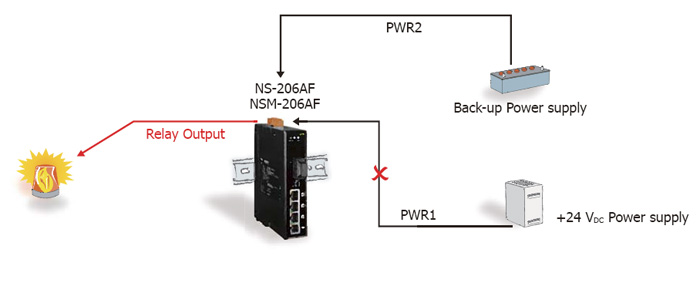

Redundant Power Input for NS-206AF/NSM-206AF series

Both power inputs can be connected simultaneously to live DC power sources. If one power source fails, the other live source acts as a backup, and automatically supplies all of NS-205AF/NSM-205AF series power needs.

Pin Functions for Power Input

External power supply is connected using the removable terminal block:
PWR : Power input and should be connected to the power supply (+)
GND: Ground and should be connected to the power supply (-)
F.G. : F.G. stands for Frame Ground (protective ground). It is optional. If you use this pin, it can reduce EMI radiation; improve EMI performance and ESD protection.
