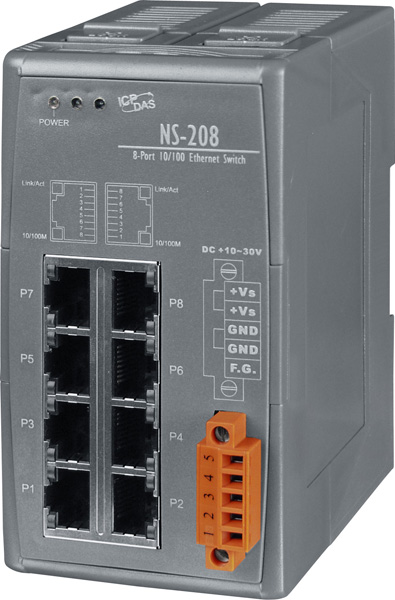

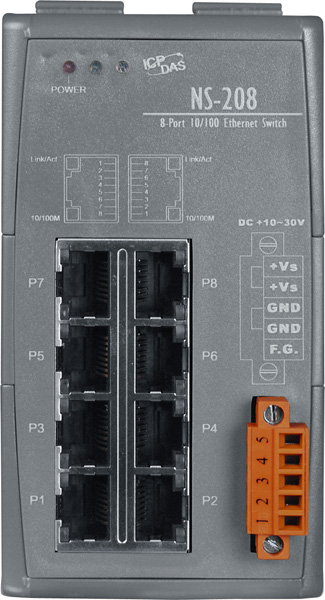

NS-208

$289.00

8-Port Industrial 10/100 Mbps Unmanaged Ethernet Switch, DIN-Rail Mount and 12 - 48VDC Power Input. Easy to Use with Plug-and-Play, Fast Data Transmission, and Reliability. Supports a Wide Range of Operating Temperatures of -40°C ~ +75°C (-22F ~ 167F).

Availability: IN STOCK | FASTEST DELIVERY : Friday, Sep 25 | Enter ZIP below for shipping options

Share On:
Categories:	Switches and Converters with Plastic Cases \| Industrial Unmanaged Ethernet Switches \| Industrial Ring Ethernet/Fiber Switch
Review:	Write your review
Resources:	Block Diagram CE Certification Data Sheet FCC Certification Hardware MTBF Report Quick Start User's Manual 2D DWG Drawing

Introduction

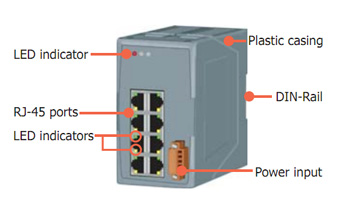

The NS-208 is an 8-port Industrial 10/100 Mbps Unmanaged Ethernet Switch, with DIN-Rail mount. Offering fast, easy to use, and reliable LAN dispersion, the NS-208 is ideal in almost any setting! It features an MDI/MDIX function for plug-and-play easy use. It can connect 8 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for connections.

The flow control mechanism is negotiated. There is link/data rate LED indicators for each port, which makes it easy for users to do trouble-shooting. Port connectors are shielded RJ-45.

Automatic MDI / MDI-X crossover for plug-and-play
Each port supports both 10/100 Mbps speed auto negotiation
Store-and-forward architecture
Full duplex IEEE 802.3x and half duplex backpressure flow control
1.4 Gbps high performance memory bandwidth
Integrated look up engine with dedicated 1K unicast MAC addresses
Supports +12 ~ +48V DC voltage
Supports operating temperatures from -40°C ~ +75°C
DIN rail mount for industrial usage

Features

• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Each port supports both 10/100 Mbps speed auto negotiation
• Supports +12 VDC ~ +48 VDC power input

FCC RoHS WEEE

Specifications

LED Indicators
Status	Power, Link/Act, 10/100M

Ethernet
Ports	8 x RJ-45, 10/100Base-TX
Standards	IEEE 802.3, 802.3u, 802.3x
Processing Type	Store & forward
MAC Table	2048
Frame Buffer Memory	1 Mbit
Flow Control	IEEE 802.3x flow control, back pressure flow control
Isolation	1500 Vrms 1 minute

Power
Reverse Polarity Protection	Yes
Input Range	+12 ~ +48 VDC (Non-isolated)
Consumption	0.15 A @ 24 VDC

Mechanical
Casing	Plastic
Dimensions (mm)	64 x 118 x 98 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-40 °C ~ +75 °C
Storage Temperature	-40 °C ~ +85 °C
Humidity	10% ~ 90% RH, non-condensing
