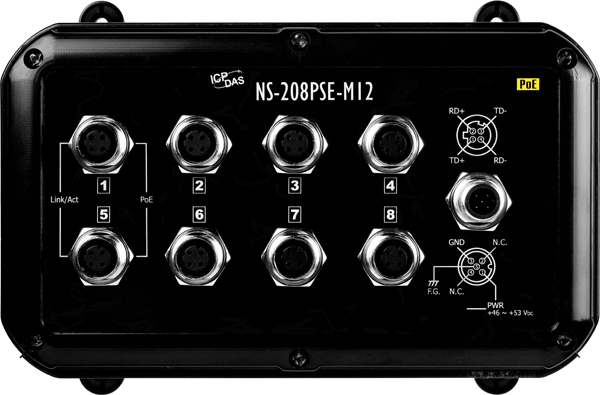

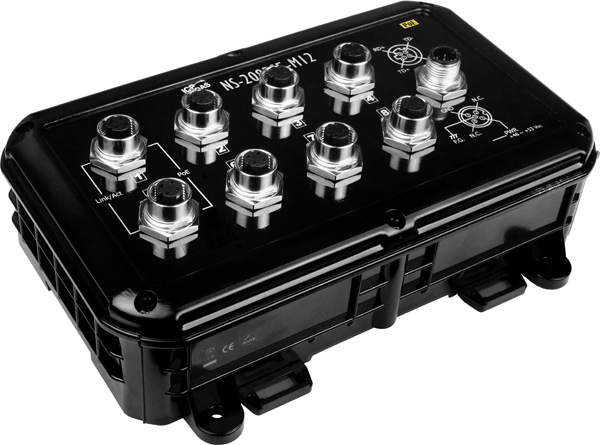

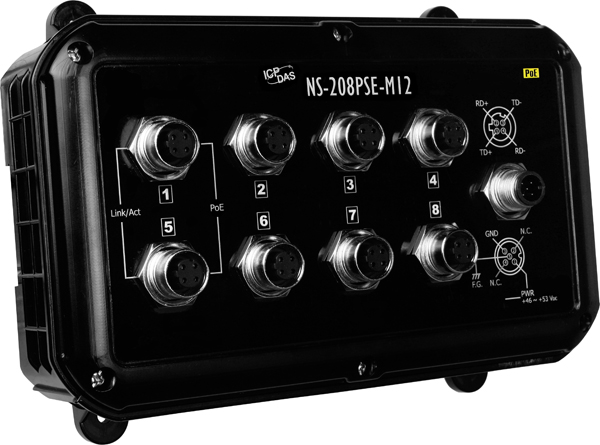

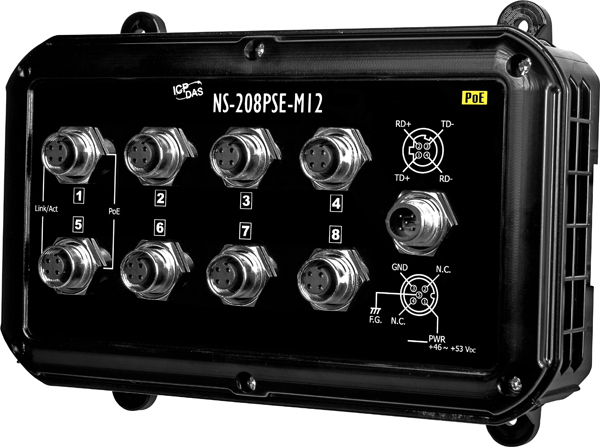

The NS-208PSE-M12-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensure tight, robust connections, and guarantee reliable operation, even for applications that are subject to high vibration and shock.
TNS-208PSE-M12-IP67 switch provides 8 fast Ethernet with 8 IEEE 802.3af compliant PoE ports. The switch is classified as power source equipment (PSE) and provide up to 15.4 W of power per port.
The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
| Models | NS-205-IP67 | NS-205-IP67/DIN | NS-205PSE-IP67 | NS-205PSE-IP67/DIN | NS-208PSE-IP67 | NS-208-IP67 |
| PoE | – | 802.3af x 4 | 802.3af x 8 | |||
| Input Voltage Rangeg | +10 ~ +30 VDC (1 kV Isolated) | +46 ~ +53 VDC | +12 ~ 53 VDC | |||
| Installation | Wall Mounting | DIN-Rail or Wall Mounting | Wall Mountin | DIN-Rail or Wall Mounting | DIN-Rail or Wall Mountin | |
| Dimensions (W x H x D) (Unit: mm) |
85 x 76 x 137 | 89 x 90 x 138 | 85 x 76 x 137 | 89 x 90 x 138 | 190 x 155 x 104 | |
| Technology | |
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store & forward; wire speed switching |
| MAC Addresses | 1024 |
| Memory Bandwidth | 2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Interface | |
| LED Indicators | PWR, Link/Act , Power Device is detected |
| Ethernet Isolation | 1500 Vrms 1 minute |
| Connection | Rugged RJ-45 |
| Power Input | |
| Input Voltage Range | +12 ~ +53 VDC for PoE output |
| Power Consumption | 0.05 A @ 48 VDC without PD loading; 1.45 A @ 48 VDC with PD full loading |
| Protection | Power reverse polarity protection |
| Connection | IP67 PWR Plug |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Classification | PSE (Power Sourcing Equipment) |
| PoE Voltage | +46 ~ +48 VDC depending on power input |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| Mechanical | |
| Casing | Plastic (Flammability UL 94V-0) |
| Environmental Rating | Protection rating IP67 for Operating Temperature -10 °C ~ +60 °C |
| Protection rating IP66 for for Operating Temperature -40 °C ~ +75 °C | |
| Dimensions (W x L x H) | 190 mm x 155 mm x 104 mm |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -10 °C ~ +60 °C (Protection rating IP67) |
| -40 °C ~ +75 °C (Protection rating IP66) | |
| Storage Temperature | -10 °C ~ +60 °C (Protection rating IP67) |
| -40 °C ~ +75 °C (Protection rating IP66) | |
| Ambient Relative Humidity | 100% RH for Operating Temperature -10 °C ~ +60 °C |
| 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C | |
