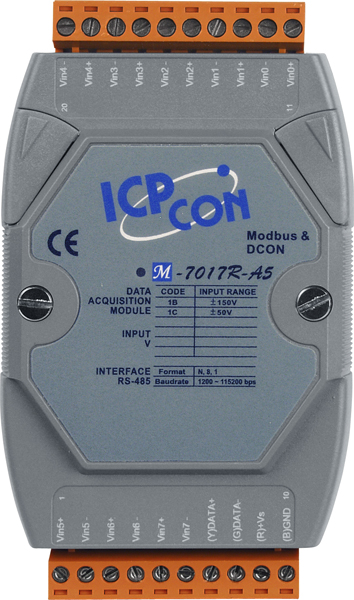

The M-7017R is an 8-channel analog input module with an extremely high quality protection mechanism where the overvoltage protection is 240 Vrms. The input type includes both voltage and current. The M-7017R is an upgraded version of the M-7017, with the only difference being that the M-7017R is much more suitable for critically harsh environments. The sampling rate of the M-7017R is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017R also has 4 kV ESD protection as well as 3000 VDC intra-module isolation. The M-7017R-A5 is an 8-channel analog input module that is especially designed for high voltage input, and has an input range of between -50 V ~ +50 V or -150 V ~ +150 V.
| Analog Input | |
| Input Channels | 8 |
| Input Type | +/-50V, +/-150V DC |
| Resolution | 16-bit (Normal Mode) / 12-bit (Fast Mode) |
| Sampling Rate | 10 samples/ second (Normal Mode) total 50 samples/ second (Fast Mode) total |
| Accuracy | +/-0.1% of FSR(Normal Mode) or better +/-0.25% of FSR (Fast Mode) or better |
| Band Width | 15.7Hz (Normal Mode) 78.7Hz (Fast Mode) |
| Zero drift | +/-20uV/°C |
| Span drift | +/-25ppm/°C |
| Input Impedance | 290K Ohms |
| Common Mode Rejection | 86dB min. |
| Normal Mode Rejection | 100dB |
| Over Voltage Protection | 200 V DC |
| 4KV ESD Protection | Yes |
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Interface | |
| Interface | RS-485 |
| Format | N, 8, 1 |
| Baud Rate | 1200 ~ 115200bps |
| LED Displays | |
| 1 LED as Power/ Communication indicator | |
| Power | |
| Input | +10 to +30 Vdc |
| Power Consumption | 1.7W |
| Protocol | |
| Support Modbus and DCON Protocol | Yes |
| Watchdog | Yes, Module, Communication (Programmable over DCON) firmware version B300 and later |
| Environment | |
| Operating temperature | -25 to 75°C |
| Storage temperature | -40 to 85°C |
| Humidity | 5 to 95% RH, non-condensing |
