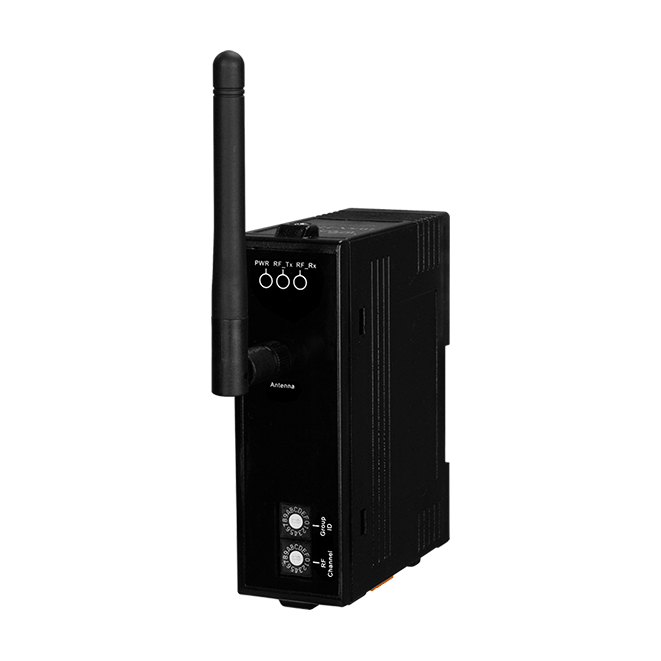

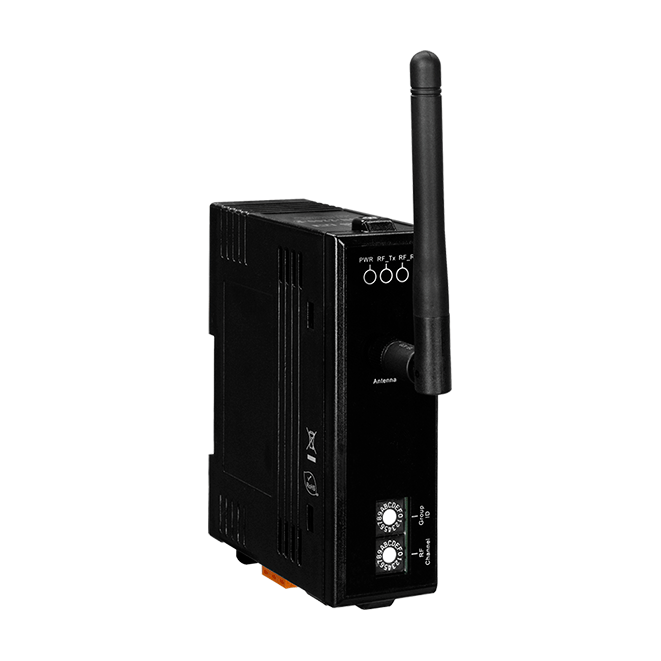

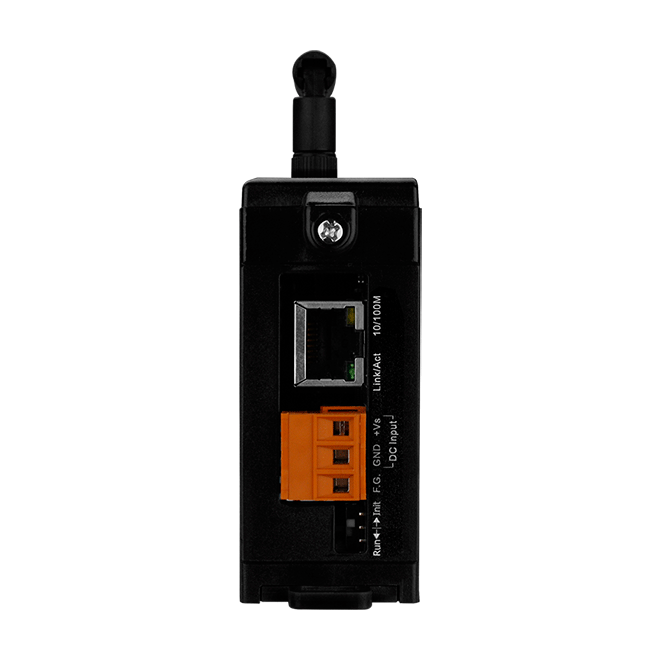

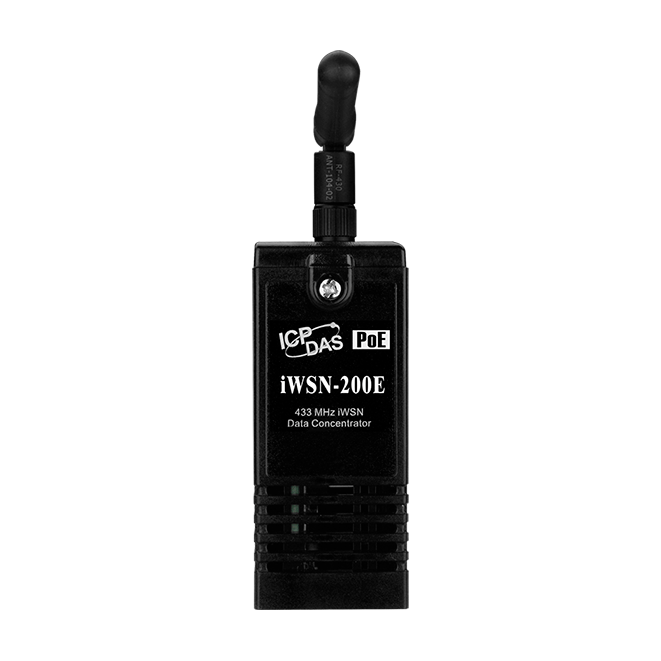

iWSN-200E

The iWSN-200E is a wireless data concentrator that supports both a 433 MHz wireless communication interface and an Ethernet communication interface with PoE. The module functions as a Modbus TCP protocol slave and is capable of receiving and buffering data from up to 31 iWSN sensors wirelessly. Users can send Modbus TCP commands through the Ethernet interface to read the sensor data. The wireless interface of the iWSN-200E supports 16 wireless channels and 8 group IDs, which can be easily configured using rotary and DIP switches, allowing users to efficiently divide and manage the 433 MHz wireless network.

Additionally, iWSN Utility is a dedicated software tool designed to simplify the configuration and setup of the iWSN network. This tool significantly reduces the complexity of deploying the network, enabling users to focus on big data processing and analysis. With its intuitive visual interface, iWSN Utility allows users to quickly set up an iWSN data collection system on a local computer, without needing to configure the Modbus addresses of the data collectors. The device tree diagram within the utility provides a clear view of the current network structure, making it easy to manage and monitor the configuration of iWSN devices. Beyond displaying real-time data from the iWSN sensing modules, the utility also offers performance metrics and supports CSV/database storage functions, helping users track the efficiency of each iWSN data collector while simplifying data storage system management.
